Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE,ROHS
-
Warranty:
-
2years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Anern
-
Model Number:
-
AN-MPSG-N
-
Output Voltage (V):
-
220V
-
Output Frequency:
-
50 60HZ, 50/60Hz
-
Work Time (h):
-
48 Hours
-
Battery Voltage:
-
12V/24V
-
RATED POWER:
-
500W/1000W
-
Output Voltage:
-
110/120/220/240VAC(optional)
-
Output Wave:
-
Pure Sine Wave
-
Communication:
-
RS485/WIFI(optional)
-
Rated Charge Current:
-
20A(MPPT)
-
Display:
-
Digital LCD
-
Electricity Charging:
-
YES
-
Product name:
-

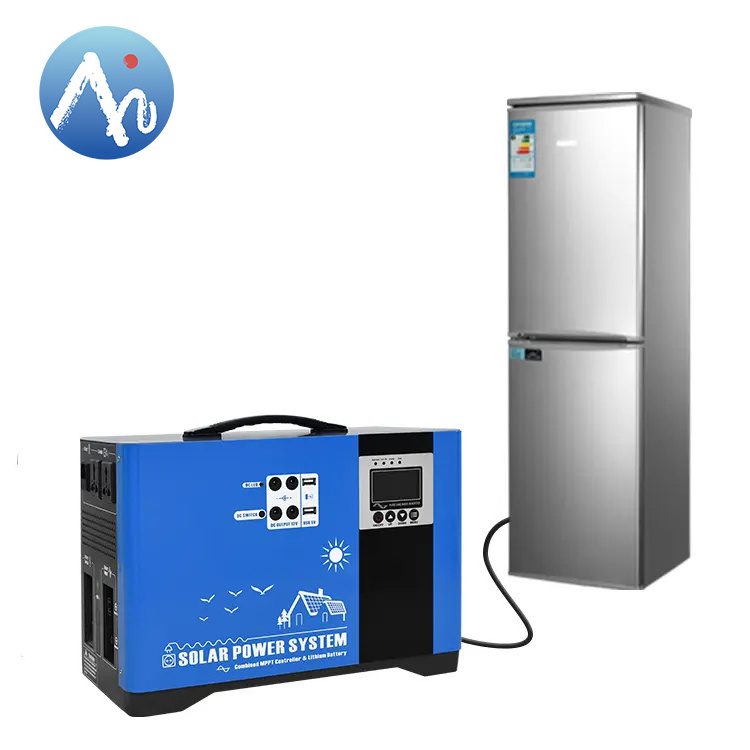

power station 1000 watt 2000w solar generator solar power bank
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
-
Battery Type:
-
Lithium Ion
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE,ROHS
-
Warranty:
-
2years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Anern
-
Model Number:
-
AN-MPSG-N
-
Output Voltage (V):
-
220V
-
Output Frequency:
-
50 60HZ, 50/60Hz
-
Work Time (h):
-
48 Hours
-
Battery Voltage:
-
12V/24V
-
RATED POWER:
-
500W/1000W
-
Output Voltage:
-
110/120/220/240VAC(optional)
-
Output Wave:
-
Pure Sine Wave
-
Communication:
-
RS485/WIFI(optional)
-
Rated Charge Current:
-
20A(MPPT)
-
Display:
-
Digital LCD
-
Electricity Charging:
-
YES
-
Product name:
-
power station 1000 watt 2000w solar generator solar power bank
Product Description
Key Features:
◆ Excellent performance because of double CPU intelligent control technology;
◆ Built-in LiFePo4 lithium battery;
◆ The mains supply mode/energy-saving mode/battery mode can be set for flexible;
◆ Convenient and practical 5VDC-USB output port and 12VDC output port;
◆ MPPT Controller greatly improving the charging efficiency more than 20%;
◆ Overcharge protechon and overdischarge protection for a longer battery life;
◆ Safe and reliable with intelligent exhaust fan control;
◆ Overall automatic protection and alarms induding AC output overload protection . short arcuit protection . Etc;
Specification：
|
Model
|
MPSG-N500
|
MPSG-N1000
|
||
|
Battery Voltage
|
12V
|
24V
|
||
|
Inverter
|
|
|
||
|
RATED POWER
|
500W
|
1000W
|
||
|
Input Voltage Range
|
110/220VAC±10%
|
|
||
|
Input Frequency
|
45-65Hz
|
|
||
|
Output Voltage
|
110/120/220/240VAC(optional)
|
|
||
|
Output Frequency
|
50/60Hz
|
|
||
|
Output Wave
|
Pure Sine Wave
|
|
||
|
Speficifation Of Built-in LiFePo4 Lithium Battery
|
600WH
|
1200WH
|
||
|
Communication
|
RS485/WIFI(optional)
|
|
||
|
Solar Input
|
|
|
||
|
Max. PV Power
|
240W
|
480W
|
||
|
Range Of Charging Voltage
|
15-90VDC
|
30-90VDC
|
||
|
Rated Charge Current
|
20A(MPPT)
|
|
||
|
DC Output
|
|
|
||
|
5VDC USB Output
|
2个/MAX 1A
|
|
||
|
12VDC Output Ports
|
2个/MAX 5A
|
|
||
|
PHYSICAL
|
|
|
||
|
Heat Dissipation/Cooling
|
Temperature control by intelligent exhaust fan
|
|
||
|
Display
|
Digital LCD
|
|
||
Must Popular Product
Two Product Description
This is a cost-effective off-grid LiFePO4 battery solar power system that uses batteries to store solar energy, at the same time,the system can be connected with the grid for utilization of grid power optionally. The off-grid power system can not only meet the demand of household electricity, but also bring you a higher return on investment.
what's included:
|
Model
|
3.6KW(LifePo4 Battery)
|
6.2KW(LifePo4 Battery)
|
10KW(LifePo4 Battery)
|
||
|
Solar Panel
|
450W*6pcs
|
450W10pcs
|
450W*20pcs
|
||
|
Inverter
|
24V 3600W*1pcs
|
48V 6200W*1pcs
|
48V 10200W*1pcs
|
||
|
Battery
|
25.6V/100AH*2pcs
|
48V/100AH*2pcs
|
48V/200AH*2pcs
|
||
|
Type
|
Half-cell Mono
|
|
|
||
|
Solar Panel Rack
|
Roof Type
|
|
|
||
|
Cables
|
International standard PV1-F 1*4 series red and black
|
|
|
||
|
WIFI Module
|
Monitor, troubleshoot, or communication*1pcs
|
|
|
||
Customer Photos
Anern Factory
Anern owns professional factory, introducing advanced production equipment, specialized production line, talented R&D team and adopting worldwide leading technology, through international standard management and strict quality control to ensure the
stable-performance and high-quality products. We can offer OEM services as your specific requirements, provide a cost effective, energy efficient, and long term outdoor lighting solution
stable-performance and high-quality products. We can offer OEM services as your specific requirements, provide a cost effective, energy efficient, and long term outdoor lighting solution
