Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Voltage:
-
220V 380V 410V
-
Dimension(L*W*H):
-
173x73x225 and 73x63x96cm
-
Weight (T):
-
1.2 T
-
Model Number:
-
HP-100M
-
Motor Power (kw):
-
3 kw
-
Warranty of core components:
-
13 months
-
Power Source:
-
Hydraulic
-
Product name:
-
ydraulic metal stamping press machine press machine for sheet metal
-
Capacity:
-
630KN
-
Pressure:
-
25MPa
-
Travel:
-
220+405mm
-
Tale size:
-
400x500mm
-
Function:
-
Steel Metal Punching
-
Application:
-
press machine for sheet metal
Quick Details
-
Machine Type:
-
Double Column Hydraulic Press
-
Slide Stroke (mm):
-
605
-
Return Force (kN):
-
1000 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Voltage:
-
220V 380V 410V
-
Dimension(L*W*H):
-
173x73x225 and 73x63x96cm
-
Weight (T):
-
1.2 T
-
Model Number:
-
HP-100M
-
Motor Power (kw):
-
3 kw
-
Warranty of core components:
-
13 months
-
Power Source:
-
Hydraulic
-
Product name:
-
ydraulic metal stamping press machine press machine for sheet metal
-
Capacity:
-
630KN
-
Pressure:
-
25MPa
-
Travel:
-
220+405mm
-
Tale size:
-
400x500mm
-
Function:
-
Steel Metal Punching
-
Application:
-
press machine for sheet metal

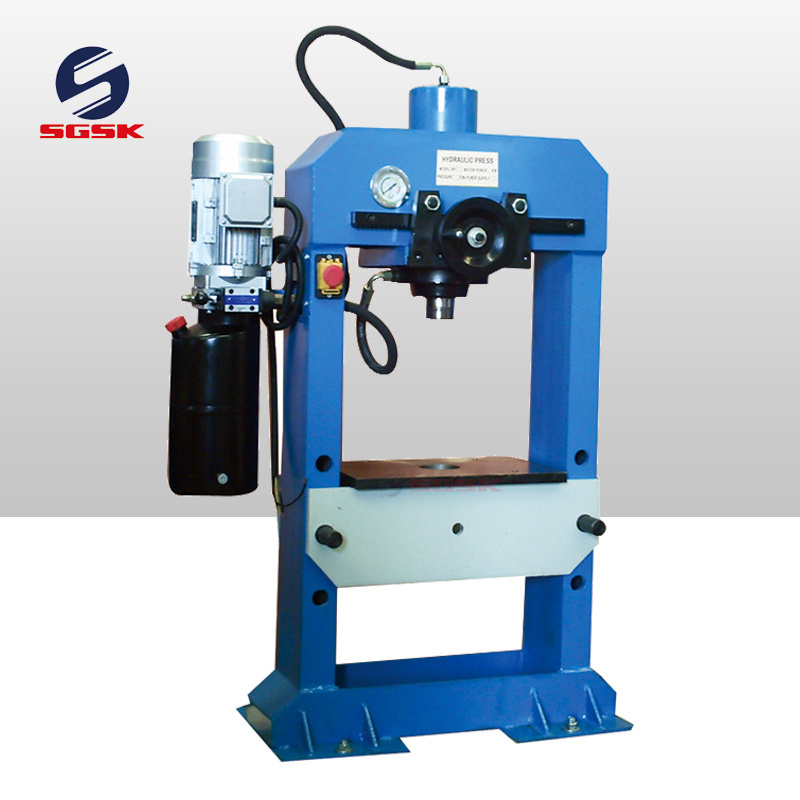

SGSK Movable Cylinder hydraulic metal stamping press machine HP-63M press machine for sheet metal
Products Description
Details Images
Product Paramenters
Features:
HP-M series Movable cylinder presses is improved based on traditional two-column hydraulic press machine.The hydraulic cylinder could move freely on frame, so enlarged the working space, It takes the advantages of convenient and quick operation.
Application:
The machine is suitable for operating in the open air or the other special situation.
Application:
The machine is suitable for operating in the open air or the other special situation.
Product main technical specifications:
|
Specification
|
unit
|
HP-63M
|
|
Capacity
|
KN
|
630
|
|
Pressure
|
MPA
|
25
|
|
Travel
|
mm
|
220+405
|
|
Tale size
|
mm
|
400x500
|
|
Dimension
|
mm
|
1500x650x1950
|
|
Weight
|
Kg
|
1020
|
