Quick Details
-
Voltage:
-
220/380V
-
Power:
-
11KW
-
Weight:
-
550 KG
-
Dimension(L*W*H):
-
1350*900*1800 mm
-
Marketing Type:
-
New Product
-
Product name:
-
Disk Flour Mill Making Wheat Flour Milling Machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Longer Food Machinery
-
Production Capacity:
-
50-10000KG/H
-
Voltage:
-
220/380V
-
Power:
-
11KW
-
Weight:
-
550 KG
-
Dimension(L*W*H):
-
1350*900*1800 mm
-
Marketing Type:
-
New Product
-
Product name:
-
Disk Flour Mill Making Wheat Flour Milling Machine
Product Description

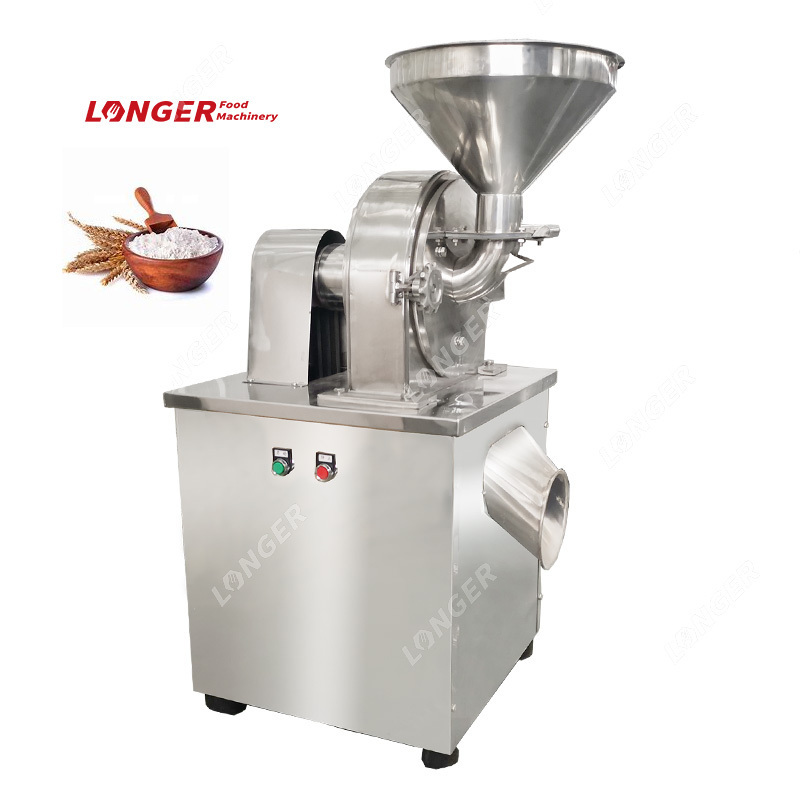

Wheat Flour Milling Machine
has wide application and is widely used for pharmaceutical industry,chemical industry, pesticide industry, foodstuuf industry,grain industry and so on. Using the relative motion between movable and fixed teech disc, the raw materials can be crushed undertaking the comprehensive actions such as impacted by teech,friction, impacted between raw materials, and finally the raw materials are crushed.
The comminuted material can be discharged directly from the grinding chamber, and the particle size is
determined by changing the screen mesh with different mesh numbers.(The screen in the machine is available with the following apertures: 3.0, 2.5, 2.2, 2.0, 1.8, 1.5, 1.2, 1.0, 0.8, 0.7, 0.6, 0.5mm)
determined by changing the screen mesh with different mesh numbers.(The screen in the machine is available with the following apertures: 3.0, 2.5, 2.2, 2.0, 1.8, 1.5, 1.2, 1.0, 0.8, 0.7, 0.6, 0.5mm)
Cocoa Crushing Machine's Testing Pictures:
Features of
Wheat Flour Milling Machine
:
Specification
|
Model
|
LFM-S20C
|
LFM-S30C
|
LFM-S40C
|
LFM-S50C
|
LFM-S60C
|
|
Capacity(kg/h)
|
50-100
|
50-200
|
100-400
|
200-500
|
200-800
|
|
Crushed powder fineness(mesh)
|
20-120
|
20-120
|
20-120
|
20-120
|
20-120
|
|
Cutter diameter(mm)
|
200
|
300
|
350
|
500
|
550
|
|
Host power(kw)
|
4
|
5.5
|
11
|
15
|
18.5
|
|
Cleaning motor power(kw)
|
0.55
|
0.75
|
1.1
|
1.5
|
2.2
|
|
Dimension(mm)
|
1000*500*1200
|
1200*700*1650
|
1350*900*1800
|
1400*900*1950
|
1600*1100*2100
|
|
Weight(kg)
|
220
|
300
|
550
|
670
|
750
|
Important reminder:
1,The technical parameters are for reference only.
2,The product quotation is for reference only, It is based on the actual purchased model and configuration.
3,For more information, please call or consult customer service.
