Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SD SUNCO, YTO/Foton/Dongfeng/Jinma/TS/Luzhong
-
Color:
-
Black,Blue,Red,Customized
-
Usage:
-
snow removal
-
Drive Type:
-
Hydraulic Driven
-
By Wheel:
-
4WD
-
Power:
-
accoring to tractor
-
Model Number:
-
CX160-TZ
-
Tractor Brand:
-
254,354,504,604,804,1204
-
contact sales:
-
Nancy +8618505419920
Quick Details
-
Weight (KG):
-
600
-
Type:
-
Front Linkage and Front PTO, tractor loader mounted
-
Use:
-
widely used in farm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SD SUNCO, YTO/Foton/Dongfeng/Jinma/TS/Luzhong
-
Color:
-
Black,Blue,Red,Customized
-
Usage:
-
snow removal
-
Drive Type:
-
Hydraulic Driven
-
By Wheel:
-
4WD
-
Power:
-
accoring to tractor
-
Model Number:
-
CX160-TZ
-
Tractor Brand:
-
254,354,504,604,804,1204
-
contact sales:
-
Nancy +8618505419920
snow blowers
There are many kinds of snow blowers in our factory.

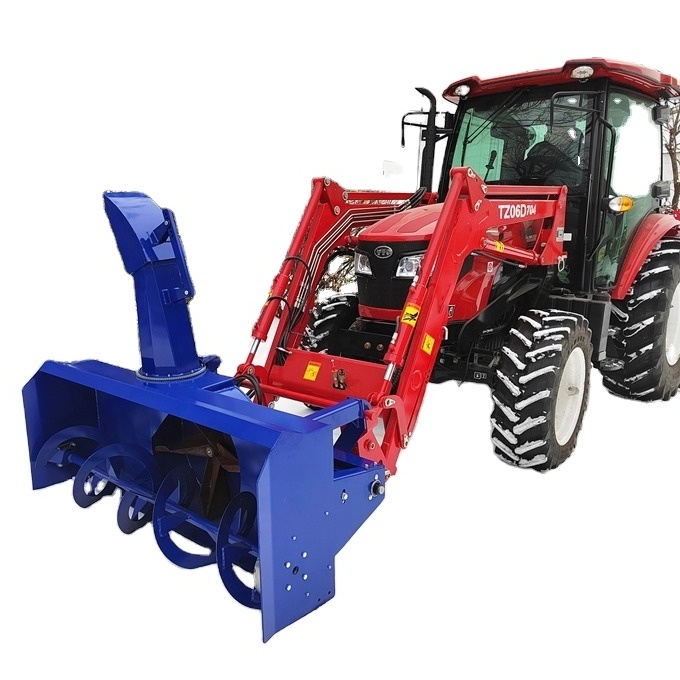

tractor loader mounted model CX-TZ series
tractor front mounted model CX series
tractor front likage mounted model CX-XG series
tractor rear 3 point hitch model CX-R series.
All the model can be used for different conditions for removing snow
Our snow blower is designed for most tractors all over the world, we have long good cooperation with tractor manufacturers sunch as lovol tractors, yto tractors, dongfeng tractors, dongqi enfly tractors, world tractors, kubota tractors, TYM tractors, Belarus tractors,john deere tractors and so on.
Our snow blowers is very popular in Russia, USA, Canada, Germany and
so on.
It has its own independent hydraulic oil tanker, pump and gear box.The snow blower can be customised according to tractors you have.
Paremetres
|
Model |
Tractor Front Mounted |
CX130 |
CX160 |
CX180 |
CX210 |
|
Rear 3-point Hitched |
CX130-R |
CX160-R |
CX180-R |
CX210-R |
|
|
For Front 3-point Linkage |
CX130-XG |
CX160-XG |
CX180-XG |
CX210-XG |
|
|
For Front End Loader |
CX130-TZ |
CX160-TZ |
CX180-TZ |
CX210-TZ |
|
|
Matching Tractor (hp) |
20-40 |
40-60 |
60-90 |
80-120 |
|
|
Blowing Width (mm) |
1300 |
1600 |
1800 |
2100 |
|
|
Blowing Height (mm) |
600 |
600 |
600 |
600 |
|
|
Number of Blades |
4 |
4 |
4 |
4 |
|
|
Dia. of Fan (mm) |
500 |
500 |
500 |
500 |
|
|
Dia. of Feeding Spiral (mm) |
360 |
360 |
360 |
360 |
|
|
Power of Driven Motor (hp) |
15 |
20 |
|||
|
Ajustable Angle of Snow Outlet |
360 |
||||
|
Ajustable Type of Outlet Direction |
Manual Adjustment (standard) |
||||
|
Electric Adjustment (option) |
|||||
|
Weight (kg) |
200-300 |
220-330 |
240-370 |
260-420 |
|
