Quick Details
-
Voltage:
-
220v 380V,50HZ,3 phase
-
Disc Dia.:
-
as you requirement
-
No Load Speed:
-
25500m³/h,0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LONGXIANG
-
Model Number:
-
LX2S
-
Warranty:
-
one year
-
Heating System:
-
BELIMO 20N electric damper
-
Heat Exchanger:
-
1.5mm thickness SUS304 stainless steel
-
Max.temperature:
-
80℃,heating time:4-6min(20-60℃), fuel consumption is 6-8kg/vehicle
-
Inlet fan:
-
7.5kw intake FAN
-
Outlet fan:
-
25500m³/h for each set
-
airflow speed:
-
320times/h
-
Wall panel:
-
High quality galvanized steel roof panel.
-
Basement:
-
alvanized steel assemble
-
Total power:
-
16.5KW
-
Voltage/Frequency:
-
380V,50HZ,3 phase
Quick Details
-
Power:
-
16KW
-
External Size:
-
as follow you requirement
-
Internal Size:
-
as follow you requirement
-
Voltage:
-
220v 380V,50HZ,3 phase
-
Disc Dia.:
-
as you requirement
-
No Load Speed:
-
25500m³/h,0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LONGXIANG
-
Model Number:
-
LX2S
-
Warranty:
-
one year
-
Heating System:
-
BELIMO 20N electric damper
-
Heat Exchanger:
-
1.5mm thickness SUS304 stainless steel
-
Max.temperature:
-
80℃,heating time:4-6min(20-60℃), fuel consumption is 6-8kg/vehicle
-
Inlet fan:
-
7.5kw intake FAN
-
Outlet fan:
-
25500m³/h for each set
-
airflow speed:
-
320times/h
-
Wall panel:
-
High quality galvanized steel roof panel.
-
Basement:
-
alvanized steel assemble
-
Total power:
-
16.5KW
-
Voltage/Frequency:
-
380V,50HZ,3 phase

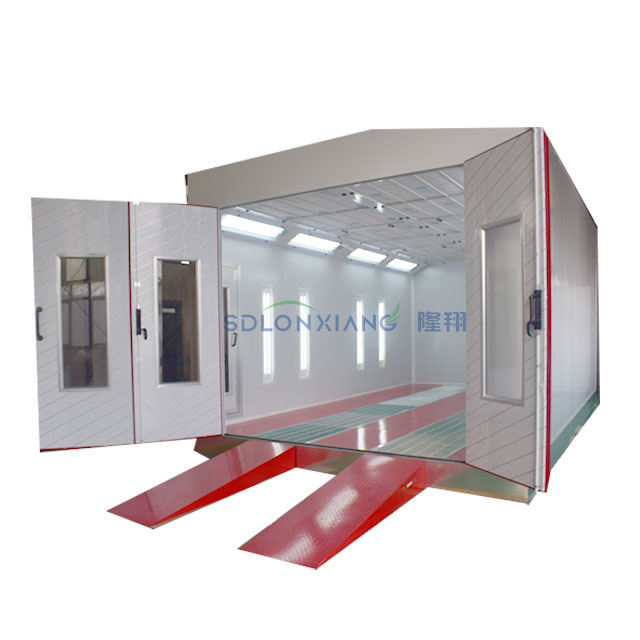

Products Description
|
LX-2S
|
|
|
|
|
||||
|
Outside size
|
7000x5350x3400mm(LxWxH)
|
|
|
|
||||
|
Inside size
|
6900×3900×2650mm(L×W×H)
|
|
|
|
||||
|
Entrance door
|
3 folds，3000x2600 mm(W×H), bending steel door
|
|
|
|
||||
|
Emergency door
|
650*2000mm(W*H),equipped with handle lock
|
|
|
|
||||
|
Main System
|
|
|
|
|
||||
|
Cabin system
|
Wall panel
|
-Sandwich style EPS 50mm,0.4mm thick steel, anti-flame and heat-insulation.
-High quality galvanized steel roof panel. |
|
|
||||
|
|
Basement
|
-Galvanized steel assemble,280mm high,with steel structure support,2 rows grills ,3 rows of diamond plates.
-2 ramps,external setting,620*2000mm(W*L)/pc |
|
|
||||
|
Ventilation system
|
Inlet fan
|
1*7.5kw double-intake centrifugal fans, air capacity:28000m³/h for each set
|
|
|
||||
|
|
Outlet fan
|
1*7.5kw double-intake centrifugal fans, air capacity:28000m³/h for each set
|
|
|
||||
|
|
Cabinet setting type
|
-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful .
-Cabinet for the fan*1unit ,air duct *2units, -Elbow:90°*1 unit |
|
|
||||
|
Heating system
|
Burner
|
Italy RIELLO G20 oil burner, heating capacity: 1
80000Kcal/h, heating time:6-8 min(20-60℃),fuel consumption is 5-8kg/vehicle,with pneumatic damper |
|
|
||||
|
|
Heat Exchanger
|
1.2mm thickness SUS304 stainless steel
|
|
|
||||
|
|
Cabinet
|
Rock-wool insulation*1 unit
|
|
|
||||
|
Lighting system
|
Ceiling lights
|
8*4pcs*16w LED lighting
|
|
|
||||
|
|
Side lights
|
Optional
|
|
|
||||
|
Filtering system
|
Primary filter
|
Grade G2 plate type , filtering rate＞83%
|
|
|
||||
|
|
Ceiling filter
|
EU5 grade high efficient filter,filtering rate＞98%
|
|
|
||||
|
|
Floor filter
|
Multi-layer fiberglass filter,filtering rate＞70%
|
|
|
||||
|
Control system
|
Control panel
|
Intelligent control system
|
|
|
||||
|
|
Function
|
Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, etc
|
|
|
||||
|
Total power
|
16.5 KW
|
|
|
|
||||
|
Voltage/
frequency
|
380V,50HZ,3phase
|
|
|
|
||||
