Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YongJin, YongJin
-
Dimension(L*W*H):
-
1.4*1*1.8, 1.4*1*1.8
-
Weight:
-
450kg
-
Power:
-
2.2KW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support
-
Commodity name:
-
China Good quality belt muller martini
-
Model Number:
-
YJ-NF 6/42
-
Place of origin:
-
GuangZhou, China
-
Export Markets:
-
Southeast Asia, the Middle East, Europe and America
-
Certification:
-
ISO,3C
Quick Details
-
Type:
-
Shuttleless Loom
-
Production Capacity:
-
The maximum machine speed:1700, 300sets / month
-
Application:
-
To produce jacquard elastic, To produce narrow fabrics straps/belt/webbing/tape and so on
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YongJin, YongJin
-
Dimension(L*W*H):
-
1.4*1*1.8, 1.4*1*1.8
-
Weight:
-
450kg
-
Power:
-
2.2KW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support
-
Commodity name:
-
China Good quality belt muller martini
-
Model Number:
-
YJ-NF 6/42
-
Place of origin:
-
GuangZhou, China
-
Export Markets:
-
Southeast Asia, the Middle East, Europe and America
-
Certification:
-
ISO,3C

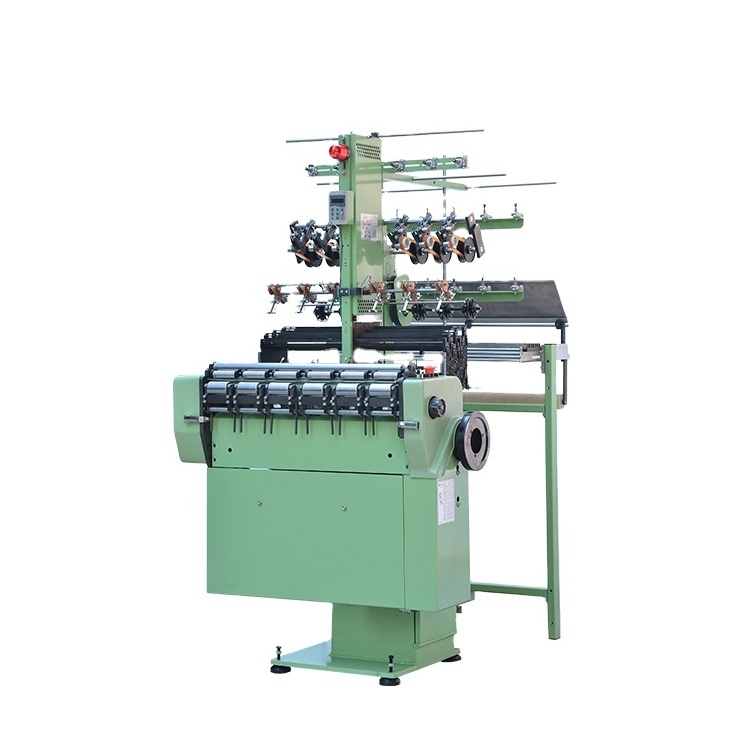

Factory price weaving machine tapestry webbing machine
We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )
| Model | NF2/130 | NF2/175 | NF2/210 | NF4/66 | NF4/84 | NF4/110 |
|
Number of tapes |
2 | 2 | 2 | 4 | 4 | 4 |
| Width of reed | 130 | 175 | 210 | 66 | 84 | 110 |
| Maximum of tapes | 128 | 170 | 200 | 65 | 80 | 100 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed |
300-1200 rpm |
200-800 rpm |
200-500 rpm |
600-1500 rpm |
500-1200 rpm |
500-1000 rpm |
| Model | NF6/42 | NF6/66 | NF6/80 | NF8/27 | NF8/42 | NF8/55 |
| Number of tapes | 6 | 6 | 6 | 8 | 8 | 8 |
| Width of reed | 42 | 66 | 80 | 27 | 42 | 55 |
| Maximum of tapes | 40 | 65 | 78 | 25 | 40 | 53 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed |
800-1700 rpm |
500-1200 rpm |
500-1000 rpm |
800-1700 rpm |
500-1200 rpm |
500-1000 rpm |
| Model | NF10/27 | NF12/27 | NF14/25 | NF6/42-2 | NF8/27-2 | NF16/15 |
| Number of tapes | 10 | 12 | 14 | 12 | 16 | 16 |
| Width of reed | 27 | 27 | 25 | 42 | 27 | 15 |
| Maximum of tapes | 25 | 25 | 23 | 40 | 25 | 13 |
| Number of frame | 20 | 20 | 20 | 20 | 20 | 20 |
| Speed |
500-1200 rpm |
500-1000 rpm |
500-1000 rpm |
500-1200 rpm |
500-1200 rpm |
500-1200 rpm |
| Main Features |
|
1.The latch-type pattern block is characterized by its precision, firmness, durability, ease of dismounting, no noise in running, and assurance of running at a high speed. |
|
2.The open iron frame construction is a special design whose elastic gel is driven by the upper elasticity. It can run without any noise and progress at high speed.And it can reduce the gravity center , featuring increase of force, reduction of the force on and between the iron frame and the cutters which can assure that the machine runs at a high speed and keep a long service of life. |
|
3.The machine is precisely made, featuring compatibility, durability, ease of operation, free adjustment, fast supply of spare parts, and easse of dismounting and maintenance. |
|
4.The machine is equipped with an auto oil circulation system, auto oil-route and oil trouble tester, enhancing the lubrication between the cutters and the chained pattern blocks. |
|
5.The variation speed braking motor can make stepless speed regulating and be operated at low soeed, which help lessen labor intensity. |
|
6.With “double crocket hook single needle” and “double crocket hook double needle” devices, it can be applied to producing the fabric products like chest ribbons, shoulder ribbons, curtain ribbons, etc. |
