Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
2.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Stepmores
-
Voltage:
-
AC220V±10%/50-60HZ
-
Dimension(L*W*H):
-
1370*1320*1520mm
-
Power (kW):
-
6
-
Weight (KG):
-
300
-
Product name:
-
6090 Atc Cnc Router
-
Working area:
-
600X900X200mm
-
Spindle:
-
2.2kw Water Cooling Spindle
-
Control system:
-
Mach3
-
Transmission:
-
Ball Screw
-
Motor:
-
easy servo Motor
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Guide rail:
-
Linear Square Guide Rail
-
Waranty:
-
3 years
-
Certification:
-
CE
Quick Details
-
Working Table Size(mm):
-
600×900
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
2.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Stepmores
-
Voltage:
-
AC220V±10%/50-60HZ
-
Dimension(L*W*H):
-
1370*1320*1520mm
-
Power (kW):
-
6
-
Weight (KG):
-
300
-
Product name:
-
6090 Atc Cnc Router
-
Working area:
-
600X900X200mm
-
Spindle:
-
2.2kw Water Cooling Spindle
-
Control system:
-
Mach3
-
Transmission:
-
Ball Screw
-
Motor:
-
easy servo Motor
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Guide rail:
-
Linear Square Guide Rail
-
Waranty:
-
3 years
-
Certification:
-
CE

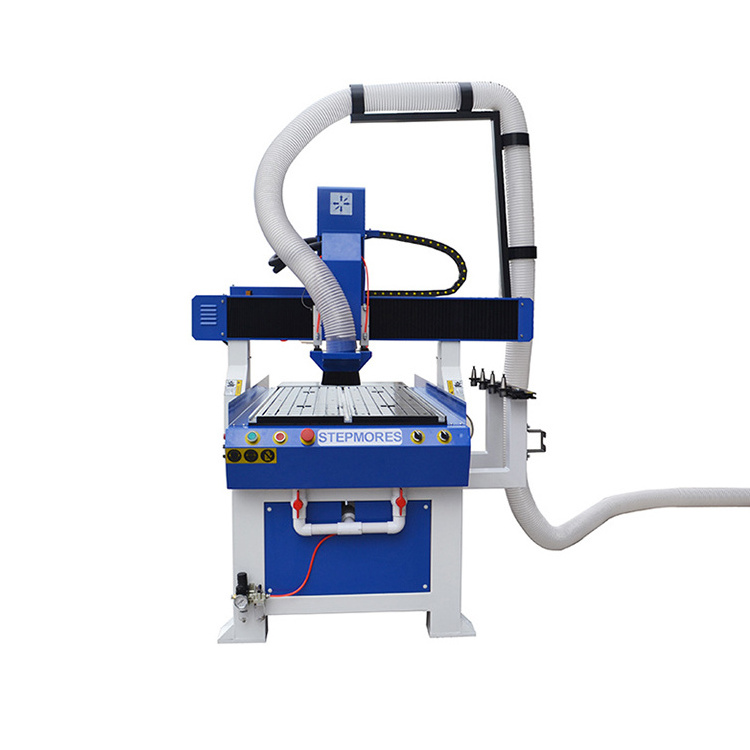

Hot sale 6090 4tools ATC 2.2KW spindle Mach3 system Cnc router woodworking machine
Main features of Stepmores 6090 cnc router
1. X Y Z use Taiwan square linear guide rails and TBI ball screw transmit, ensure the machine working stable and the working life.
2. Steel tube and cast iron structure wont transform for long use.
3. dust proof to protect the guide and blocks from dust, keep clean and guarantee the working precision.
4. Mach3 control system with usb port, you can use desk computer or laptop to control the machine working.
5. Machine is installed with tool sensor and LED light alongside the spindle, very convenient for working.
Specification of the cnc router:
| Machine model | SM6090 cnc router |
| Working area | 600x900x200 mm |
| Feeding height | 200 mm |
| Spindle | 2.2kw water cooled |
| Spindle speed | 0-24000RPM |
| Motor driver | Stepper motor and stepper driver |
| Travel speed | 15000mm/min |
| Working speed | 12000mm/min |
| Working table | Vacuum table with vacuum pump |
| Guide rail | Taiwan square linear guide rail |
| Transmission | TBI ball screw |
| Control system | Mach3 (usb port) |
| Tool sensor | Included |
| Command code | G code |
| Working voltage | AC220V, 50/60Hz |
| Options | 1) servo motor drive |
| 2) DSP control system | |
| 3) 4th axis | |
| 4) tool bit cooling system |
**Machine specifications can be customized according to your requests.
Our stepmores machine use high quality parts, make sure long lifetime of the whole cnc router machine
Here is the Details of CNC Router
Applicable industry and materials of the atc cnc router :
Stepmores atc cnc router machine with high efficiency and accuracy for wood/MDF/acrylic, can be used for
cutting and engraving solid furniture, mahogany furniture, MDF paint door, solid wood door, composite door,
cupboard door and window, beside cabinet, folding screen, ect.
Sample show of the cnc router:
Package of the cnc router :
we use strong non-fumigation plywood case with steel tube under the pallet. so it can avoid any damage to the cnc router. we also buy the insurrance for the shipping and mahcine. Its compressive strength and bearing quality is better, is the market of choice for the goods of high-weight packaging. And the board area is big, the soil structure is good, and operational process is simple. So it is better in leak proof ness and waterproof. When importing the plywood case is with fumigation-free, the procedure is simple.
CE certificated for stepmores cnc router machine
we promise the good quality for our machine with long lifetime,
our machine is cerificated by Ente Certificazione Macchine SRL as European quality, here is CE certification
looking for agents from all over the world
We are cnc router OEM !
All of our CNC routers can be customized as your requirements.
