- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
JAC
-
Fork Length:
-
1220mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
2485*1160*2070mm
-
Weight (KG):
-
3330 kg
-

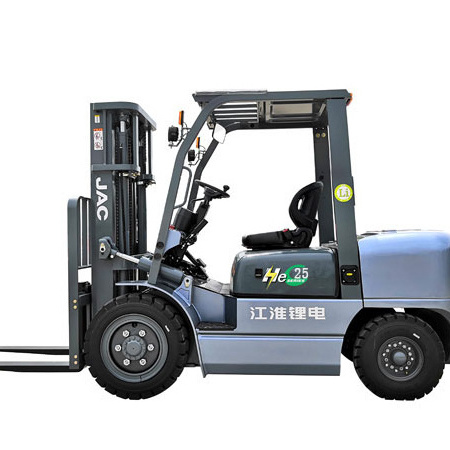

Product Name:
-
JAC electric Forklift Truck
-
Power type:
-
electric Forklift
-
Name:
-
JAC CPD20He
-
Loading Capacity:
-
2000kg
-
Color:
-
Yellow, red or custom
-
Mast:
-
2 stage mast or 3 stage mast
-
Engine:
-
lithium battery
-
Seat:
-
Toyota seat with safety belt
-
Brand:
-
JAC
-
Optional:
-
side shifter, fork positioner,Cab with A/C,paper roll clamp,bale clamp
Quick Details
-
Min. Lifting Height:
-
2070mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
JAC
-
Fork Length:
-
1220mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
2485*1160*2070mm
-
Weight (KG):
-
3330 kg
-
Product Name:
-
JAC electric Forklift Truck
-
Power type:
-
electric Forklift
-
Name:
-
JAC CPD20He
-
Loading Capacity:
-
2000kg
-
Color:
-
Yellow, red or custom
-
Mast:
-
2 stage mast or 3 stage mast
-
Engine:
-
lithium battery
-
Seat:
-
Toyota seat with safety belt
-
Brand:
-
JAC
-
Optional:
-
side shifter, fork positioner,Cab with A/C,paper roll clamp,bale clamp
Product Description
We are professional in forklift
Specification
|
|
|
|
|
|
CPD20He
|
CPD25He
|
||||
|
features
|
Power type
|
|
|
|
lithium battery
|
lithium battery
|
||||
|
|
Rated cut-off load
|
|
|
kg
|
2500
|
2500
|
||||
|
|
Load center distance
|
|
|
mm
|
500
|
500
|
||||
|
|
Lifting height
|
|
|
mm
|
3000
|
3000
|
||||
|
|
Free lifting height
|
|
|
mm
|
140
|
140
|
||||
|
|
Fork size
|
long*wide*thick
|
|
mm
|
1070×122×40
|
1070x122x40
|
||||
|
|
Gantry inclination
|
Front / rear
|
|
|
6/12
|
|
||||
|
|
Min turning radius
|
|
|
mm
|
2170
|
2230
|
||||
|
|
Min right angle stacking channel width
|
|
|
mm
|
3635
|
3695
|
||||
|
|
Min right angle channel width
|
|
|
mm
|
2730
|
2430
|
||||
|
|
Min ground clearance
|
|
|
mm
|
110
|
|
||||
|
|
Height of roof protection frame
|
|
|
mm
|
2070
|
|
||||
|
|
Seat to roof frame height
|
|
|
mm
|
1000
|
|
||||
|
|
Front overhang distance
|
|
|
mm
|
465
|
465
|
||||
|
size
|
overall length
|
No fork
|
|
mm
|
2485
|
2560
|
||||
|
|
Full width
|
|
|
mm
|
1160
|
|
||||
|
|
Max lifting height of fork (blocked shelf)
|
|
|
mm
|
4030
|
|
||||
|
|
Standard gantry height
|
|
|
mm
|
1995
|
|
||||
|
power
|
tyre
|
front wheel
|
|
|
7.00-12-12PR
|
|
||||
|
|
|
rear wheel
|
|
|
6.00-9-10PR
|
|
||||
|
|
wheelbase
|
|
|
mm
|
1600
|
|
||||
|
|
Track width
|
Front / rear
|
|
mm
|
970
|
970
|
||||
|
|
dead weight
|
No load
|
|
kg
|
3310
|
3680
|
||||
|
|
lithium battery
|
Voltage
|
|
v
|
80V/115V/
|
|
||||
|
|
|
capacity
|
The max climbing capacity is 15%
|
Ah
|
120Ah
|
120Ah ( 10% )
|
||||
|
|
|
|
The max climbing capacity is 20%
|
|
/
|
/
|
||||
|
|
electric machinery
|
walk
|
|
kw
|
15
|
|
||||
|
|
|
Lifting
|
|
Kw
|
15
|
|
||||
|
|
control mode
|
|
|
|
AC
|
|
||||
|
|
working pressure
|
|
|
Mpa
|
18.5
|
|
||||
|
|
Traction
|
|
|
KN
|
18
|
19
|
||||
|
Optional ： 1
|
156V/165Ah、battery charger156V100A
|
|
|
|
|
|
||||
|
2
|
156V/230Ah、battery charger156V100A
|
|
|
|
|
|
||||
|
3
|
115V100Ah、 battery charger115V50A
|
|
|
|
|
|
||||
|
4
|
115V/165Ah、battery charger115V100A
|
|
|
|
|
|
||||
|
5
|
115V/230Ah、battery charger115V100A
|
|
|
|
|
|
||||
|
6
|
80V/175Ah、 battery charger80V65A
|
|
|
|
|
|
||||
|
7
|
80V/220Ah、 battery charger80V65A
|
|
|
|
|
|
||||
|
8
|
80V/270Ah、 battery charger80V65A
|
|
|
|
|
|
||||
|
9
|
80V/300Ah、 battery charger80V65A
|
|
|
|
|
|
||||
|
10
|
80V/350Ah、 battery charger80V65A
|
|
|
|
|
|
||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
