Quick Details
-
OEM:
-
Support
-
Media Streaming:
-
Internet TV/Video
-
The usual time:
-
100,000 hours
-
Audio/Video Outputs:
-
RJ45
-
Rate Control:
-
CBR/VBR
-
Ethernet:
-
100Base-T Ethernet interface
-
Video encoding:
-
Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP
-
Keyword:
-
Hotel HD TV RF Modulator
Quick Details
-
Place of Origin:
-
China
-
Material:
-
Metal
-
Media Input Connectivity:
-
4XHDMI
-
OEM:
-
Support
-
Media Streaming:
-
Internet TV/Video
-
The usual time:
-
100,000 hours
-
Audio/Video Outputs:
-
RJ45
-
Rate Control:
-
CBR/VBR
-
Ethernet:
-
100Base-T Ethernet interface
-
Video encoding:
-
Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP
-
Keyword:
-
Hotel HD TV RF Modulator

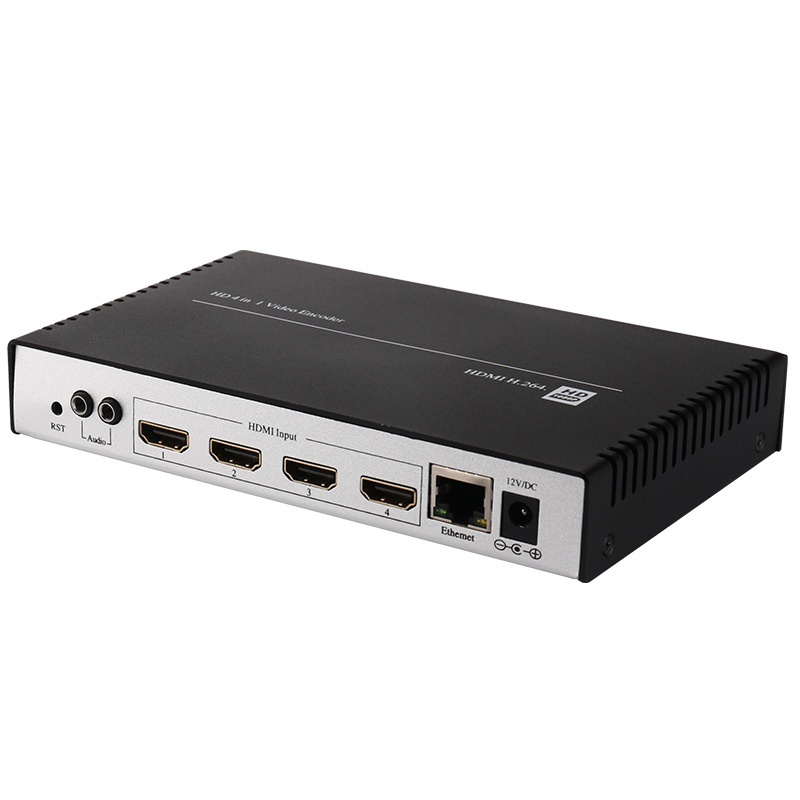

MPEG4 H.264 4 in 1 HDMI Video Encoder H.264 4 Channels HDMI Video Encoder for Live Broadcast IPTV Video Encoder
1. Introduction
H.264 4 in 1 HDMI Video Encoder - which supports 4 channels H.264 audio & video encoding, and transfer the TS stream over network to media server (Wowza, xtream codes, nginx, etc..)or online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc. The input HDMI max resolution is 1080p@60fps, and output stream resolution can up to 1080p@60fps, works with HTTP / HLS / FLV / RTSP / UDP / RTMP Stream Protocols and ONVIF.
.
2. Features
1. Embedded HiLinux System, stable and effective.
2. 4HDMI input and encoding at same time.
3. Supports main stream & substream output.
4. Output Stream bitrate adjustable.
5. Supports Analog audio Line-in mixed with HDMI Audio.
6. Supports H.264/AVC High profile / Main Profile / Baseline Profile.
7. Supports VBR / CBR rate control.
8. Supports image settings when no signal input.
9. Support firmware upgrade.
10. Provide customization for clients.
3. Application
1. IPTV (Wowza, Xtream Codes, etc.,)
2. Online Live Broadcast
3. NVR (Net Video Recorder)
4. Teaching / Campus Broadcast
5. Hotel TV system
6. Video Conference
7. Digital Signage
8. Recording System
4. Specifications
|
Video |
|
|
Input |
4* HDMI |
|
Supports HDMI Resolution |
1080P/1080i/720P @50/60Hz and below |
|
Encoding type |
H.264 |
|
Encoding Levels |
H.264/AVC High / Main / Baseline Profile |
|
Output TS Steam Resolution |
Max support 1920x1080P@60Hz |
|
Video FPS |
5-60FPS |
|
Video Bitrate |
0.1~ 32Mbps adjustable |
|
Bitrate control |
VBR / CBR |
|
TS Protocols |
HTTP / HLS / FLV / RTSP / UDP / RTMP / ONVIF |
|
Audio |
|
|
Input |
HDMI Audio or 2*3.5mm L/R Analog Audio line in for Mixed |
|
Sample Rates |
44.1 kHz, 48.0 kHz |
|
Encoding |
AAC / AAC+ / AAC++ / MP3, G.711 (i-Law/a-Law) |
|
Bitrate |
12K ~ 320K adjustable |
|
ONVIF |
G.711 |
|
Network |
|
|
Network |
1000Base-T Ethernet interface |
|
System |
|
|
Control Panel |
Http Web |
|
Firmware Update |
supports |
|
Remote management |
supports |
|
Working environment |
|
|
Operating temperature |
0 to 40 deg C |
|
Storage temperature |
–20 to 70 deg C |
|
Relative Humidity |
5% to 90% non-condensing |
|
Dimension & Accessories |
|
|
Dimension |
167 mm* 105 mm* 27 mm |
|
Weight |
550g |
|
Hot shoe |
1 Pcs |
|
Power adapter |
DC 12V 2A |
5. Connection Diagram
