Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minew
-
Supplier Type:
-
Original Manufacturer / ODM / OEM
-
Core Tech:
-
BLE5.0/WiFi IEEE 802.11 b/g/n
-
Wifi:
-
Up to 150 Mbps PHY data rate
-
Number of Selectable Sub channels:
-
14 channels
-
Protocol:
-
TCP/HTTP/MQTT/mbed(ARM)
-
Light strip:
-
Indicator
-
Input:
-
DC 5V/1A,802.3af POE
-
Working temperature:
-
-10℃ to 50℃
-
Cover range:
-
300m
-
Power supply:
-
Powered by Micro-USB / PoE
-
Firmware upgrade:
-
Over-the-Air
Quick Details
-
Chipset:
-
BLE 5.0 chip
-
Application:
-
indoor location
-
Model Number:
-
G1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minew
-
Supplier Type:
-
Original Manufacturer / ODM / OEM
-
Core Tech:
-
BLE5.0/WiFi IEEE 802.11 b/g/n
-
Wifi:
-
Up to 150 Mbps PHY data rate
-
Number of Selectable Sub channels:
-
14 channels
-
Protocol:
-
TCP/HTTP/MQTT/mbed(ARM)
-
Light strip:
-
Indicator
-
Input:
-
DC 5V/1A,802.3af POE
-
Working temperature:
-
-10℃ to 50℃
-
Cover range:
-
300m
-
Power supply:
-
Powered by Micro-USB / PoE
-
Firmware upgrade:
-
Over-the-Air

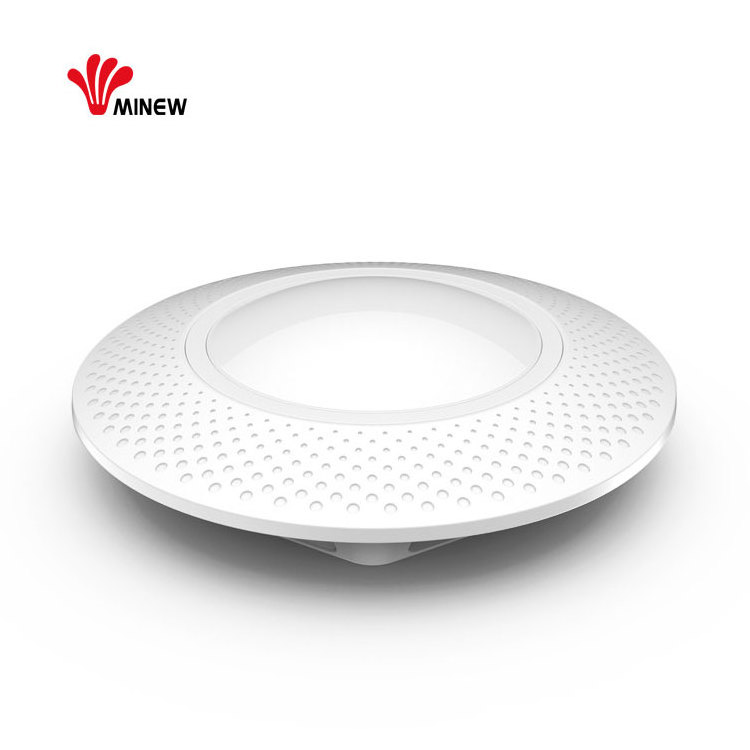

Hot selling bluetooth beacon receiver gateway
USB/PoE power supply iot bluetooth lte enabled ble beacon 3g 4g LTE gateway G1 for iot devices
3. Configuration: G1 BLE & WiFi gateway can be configured throught a simple WEB configuration interface or configuration APP in PC(Batch Configuration Tool).
4. Advantage: Data Saved in TF Data Card or Udisk, even if disconnected & Firmware Upgraded by OTA
5. Application:
* iBeacon / Eddystone / other BLE tag receiver
* BLE sensor reader / receiver
* Asset tracking
* Access control management
* Advertisement promotion
* Indoor location and position
* Industrial automation
Application of G1 BLE &Wifi gateway:
G1 Gateway can manage the beacon, receive Bluetooth signal and send to cloud server.
General:
●
Input: DC 5.0V, 1A, micro-USB
● Supports 802.3af PoE standard
Supports firmware upgrade Over-the-Air
● Operating temperature: -10℃ to 50℃
● Reads multiple BLE devices in the same time
●
Supports HTTP(support SSL/TLS)/MQTT(support SSL/TLS and Proxy)/TCP
● Built-in RTC and NTP support
● RGB LED string as the status indicator
● Based on OpenWrt 15.05
BLE:
● Bluetooth 5.0 hardware nRF52832
● With a power amplifier
● With 3dBi flexible FPC antenna
● 300 meters range in open space
● Rx sensitivity -108dBm
● Bi-directional (reads data / sends command)
WiFi:
● Up to 150 Mbps PHY data rate ● With 3dBi flexible FPC antenna
● 100 meters range in open space ● 1T1R 2.4GHz frequency band
● IEEE 802.11b/g/n ● Web based UI for configuration
● Connects to the local server or remote cloud
|
Color
|
White
|
|
Size
|
150x150x36mm
|
|
Net Weight
|
155g
|
|
Accessory
|
1x USB cable, mental fixing and screws
|
|
Power supply (Vcc)
|
DC 5.0 (+/- 5%) Max. 5.5 Volts
|
|
Storage temperature
|
-40℃ to 85℃
|
|
Humidity
|
Max 95%, Non condensing, relative humidity
|
Founded in 2007,Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated to the market demand all along.We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.We focus on designing and manufacturing many different high quality and low cost iBeacons hardware , offering one-stop services include:
1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling.
Warmly welcome the OEM and ODM projects.
Bluetooth 5.0 iBeacon Eddystone Reader/ BLE & WiFi Gateway
1.According to our customers requirements, we are willing to handle shipment for our customers, and the shipment fee is needed in this case.Fast Express like DHL,UPS, TNT, FedEx are all available here.
2. If our customers have their own Express account, freight forwarder in China,we are happy to contact their Express people or freight forwarder to pick up products from our factory.
Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. Firmwork 3. Demo APP 4. Configuration APP 5. Instructions
Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.
Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.
Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
