Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Chuangda
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
6200*4200*1800mm
-
Weight:
-
6800 kg
-
Marketing Type:
-
Hot Product 2020
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Toilet roll:
-
90-120mm
-
Key words:
-
toilet roll machine
-
embossing:
-
steel to rubber
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
1750mm Max Jumbo Roll
-
Max. workable width:
-
1800mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Chuangda
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
6200*4200*1800mm
-
Weight:
-
6800 kg
-
Marketing Type:
-
Hot Product 2020
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Toilet roll:
-
90-120mm
-
Key words:
-
toilet roll machine
-
embossing:
-
steel to rubber

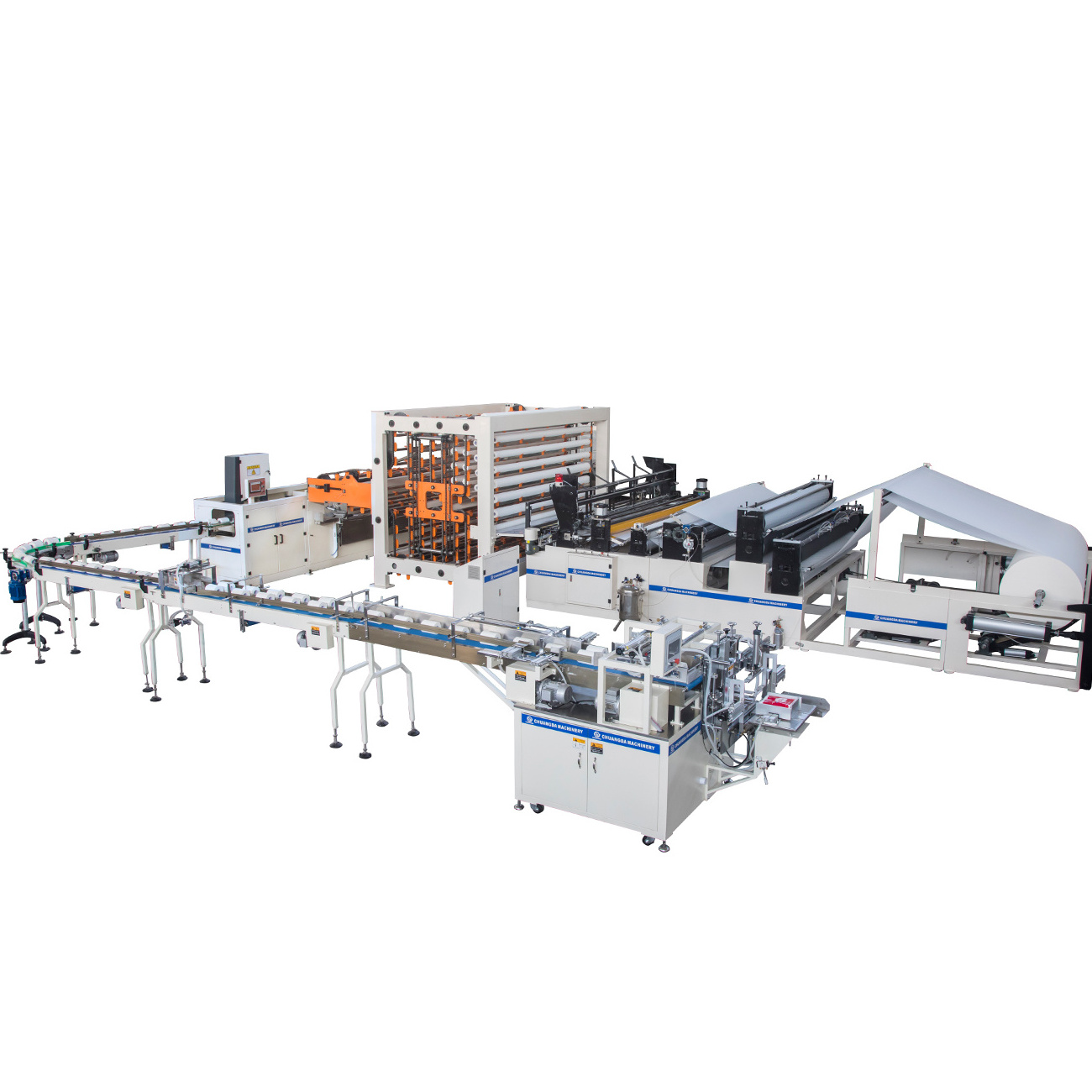

Full Automatic Toilet Paper Machine, Toilet Roll Making Machine, Toilet Tissue Machine, Kitchen Towel Machine, Paper Converting Machine
|
Model No. |
Machine Name |
Functions |
Specifications |
|
CDH-1575-YE |
Full Automatic Toilet Roll & Kitchen Towel Making Machine |
Color printing, Embossing, Lamination, Perforating, Rewinding, Sealing |
Three paper stands, Two embossing sets, (steel to wool) One lamination unit Two color printings |
1. Main Technical Parameter
Finished Roll Diameter: Φ70~140 mm (Degree of tightness adjustable)
Finished Roll Core Diameter: Φ 20~50 mm
Raw Material Diameter: ≤Φ 1100 mm (Other sizes are available )
Raw Material Core Diameter: 3”(76.2 mm) (Other sizes are available )
Perforating Pitch: 90~160mm (Pneumatically separating unit-Optional)
Speed: 180-200 meters/min
Parameter Setting: Touch button LCD Screen operation panel
Programme Controller : MITSUBSHI Programmable Controller (PLC)
Mechanism Driving: Stepless gear box, insure the precision of finished product length
Embossing Roller: Two sets of Steel to rubber
Unwinding Paper Stand : 3 ply
Pneumatic System: 3 HP air compressor, mini pressure 5kg/cm2 Pa(Provided by client)
Power: Variable frequency speed control, 7.5KW
Machine Size : 6200×4200×1800mm(L×W×H)
Weight: 6800kg
2. Machine Introduction
Full Automatic Toilet Paper Machine with Automatic Trimming, Sealing, Embossing and Perforating Rewinder adopts advanced PLC technology, variable speed adjustment, electronic braking, and touch button multimenu type LCD screen operation control panel. Also the machine is newly developped with coreless roller shaped rewinding system, with the adoption of PLC wind pipe-shaped new technology. That is, It’s no need to put core or stainless steel pipe when production, which keeps ahead of other applications.
