Quick Details
-
Power:
-
36kw
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
NEWINDU
-
Machine Weight:
-
6000 kg
-
Bucket Load:
-
0.23m3
-
Rated power:
-
36kw
Quick Details
-
Operating Weight:
-
6 ton, 6000KG
-
Bucket capacity:
-
0.23M3
-
Engine Brand:
-
top brand
-
Power:
-
36kw
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
NEWINDU
-
Machine Weight:
-
6000 kg
-
Bucket Load:
-
0.23m3
-
Rated power:
-
36kw
Contact way
Ethan Li
Sales Manager
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2801, Super Ocean Finance Center,2067 West Yan'an Road, Shanghai 200336, China
Mobile / Whatsapp/ Skype/Wechat: 008618339192133 or 0008615737370228
Web: www.newindu.com
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2801, Super Ocean Finance Center,2067 West Yan'an Road, Shanghai 200336, China
Mobile / Whatsapp/ Skype/Wechat: 008618339192133 or 0008615737370228
Web: www.newindu.com

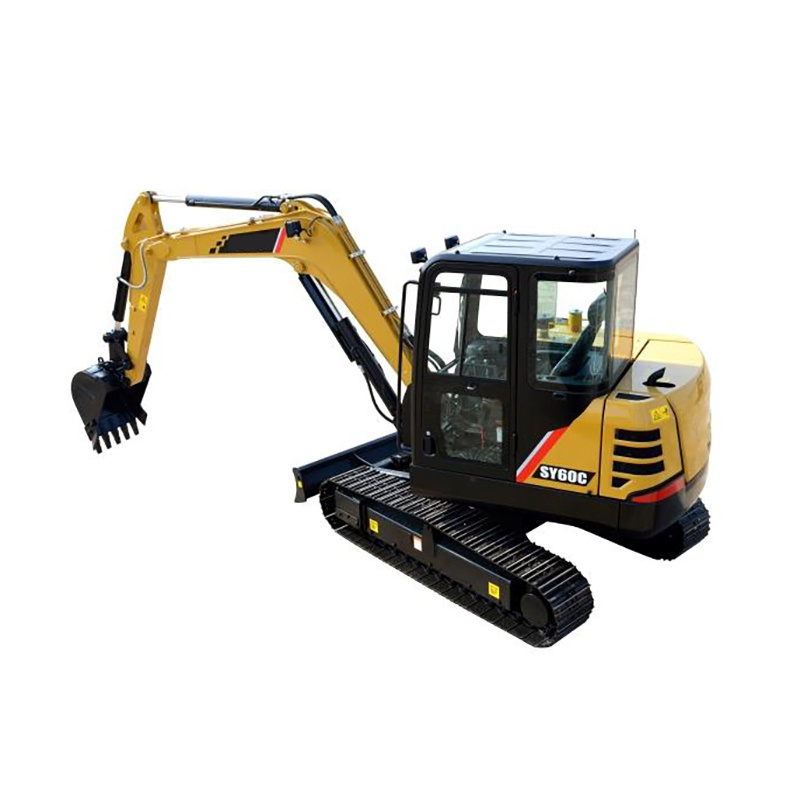

China 6 Ton Full Hydraulic Excavator Excavators SY60C With Side Swing Boom
Products Description
Farster Operating Speed
A quick return line is added to the arm oil cylinder circuit, considerably improving the operating efficiency at low energy
consumption.
High Realiability
Load Sensitive Flow Distribution System: Senses micro changes of the load and adjusts flow and pressure in real time; optimized
main valve core for perfect synergism between actuators and precise control.
Safe and Comfortable Operating Environment
The newly-designed cab with much room and larger windows provides you with a wider view.Equipped with excellent sealing, the cab
is free from dust, rain, and noise that effectively reduce the fatigue of operator.
Reinforced Boom
The side plates are thicker than before and the ear plates are redesigned to reduce stress at the bending. The boom has stood the
durability test and field (soil and rock mixture) digging test.
A quick return line is added to the arm oil cylinder circuit, considerably improving the operating efficiency at low energy
consumption.
High Realiability
Load Sensitive Flow Distribution System: Senses micro changes of the load and adjusts flow and pressure in real time; optimized
main valve core for perfect synergism between actuators and precise control.
Safe and Comfortable Operating Environment
The newly-designed cab with much room and larger windows provides you with a wider view.Equipped with excellent sealing, the cab
is free from dust, rain, and noise that effectively reduce the fatigue of operator.
Reinforced Boom
The side plates are thicker than before and the ear plates are redesigned to reduce stress at the bending. The boom has stood the
durability test and field (soil and rock mixture) digging test.
Technical Specifications
|
Model
|
|
Unit
|
SY60C
|
|
|
Operating weight
|
|
kg
|
6000
|
|
|
Standard bucket capacity
|
|
m³
|
0.09-0.23
|
|
|
Engine
|
Engine model
|
/
|
4TNV94L
|
|
|
|
Rated power/speed
|
kw/rpm
|
36/2000
|
|
|
|
Displacement
|
L
|
3.123
|
|
|
Performance
|
Travel speed
|
km/h
|
4.2/2.2
|
|
|
|
Ground pressure
|
kPa
|
32.67
|
|
|
|
Max.Bucket digging force
|
kN
|
42.54
|
|
|
|
Max.traction force
|
kN
|
50.8
|
|
|
Hydraulic system
|
Main pump
|
/
|
Japan
|
|
|
|
Max pressure of travel system
|
MPa
|
22
|
|
|
|
Max pressure of pilot system
|
MPa
|
2.7
|
|
|
Oil capacity
|
Fuel tank capacity
|
L
|
110
|
|
|
|
Hydraulic tank capacity
|
L
|
88
|
|
|
|
Engine lubrication
|
L
|
12
|
|
|
Overall dimension
|
Overall length
|
mm
|
5737
|
|
|
|
Overall width
|
mm
|
1845
|
|
|
|
Overall height
|
mm
|
2590
|
|
|
|
Track length
|
mm
|
2540
|
|
|
|
crawer width
|
mm
|
400
|
|
|
|
Clearance under counter weight
|
mm
|
710
|
|
|
|
Ground clearance
|
mm
|
385
|
|
|
Operating range
|
Max. digging height
|
mm
|
5630
|
|
|
|
Max. digging depth
|
mm
|
3830
|
|
|
|
Max.dozer lifting height
|
mm
|
390
|
|
