Quick Details
-
Color:
-
Customized Color
-
Type:
-
Prefabricated Modular Houses
-
Window:
-
Plastic Steel Window
-
Advantage:
-
Fast Install
-
Function:
-
Portable Room Outdoor
-
Delivery Time:
-
10-15days
-
Structure:
-
Steel Luxury Container House
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIACHENG
-
Product name:
-
Folding house
-
Color:
-
Customized Color
-
Type:
-
Prefabricated Modular Houses
-
Window:
-
Plastic Steel Window
-
Advantage:
-
Fast Install
-
Function:
-
Portable Room Outdoor
-
Delivery Time:
-
10-15days
-
Structure:
-
Steel Luxury Container House
You may also like
Products Show

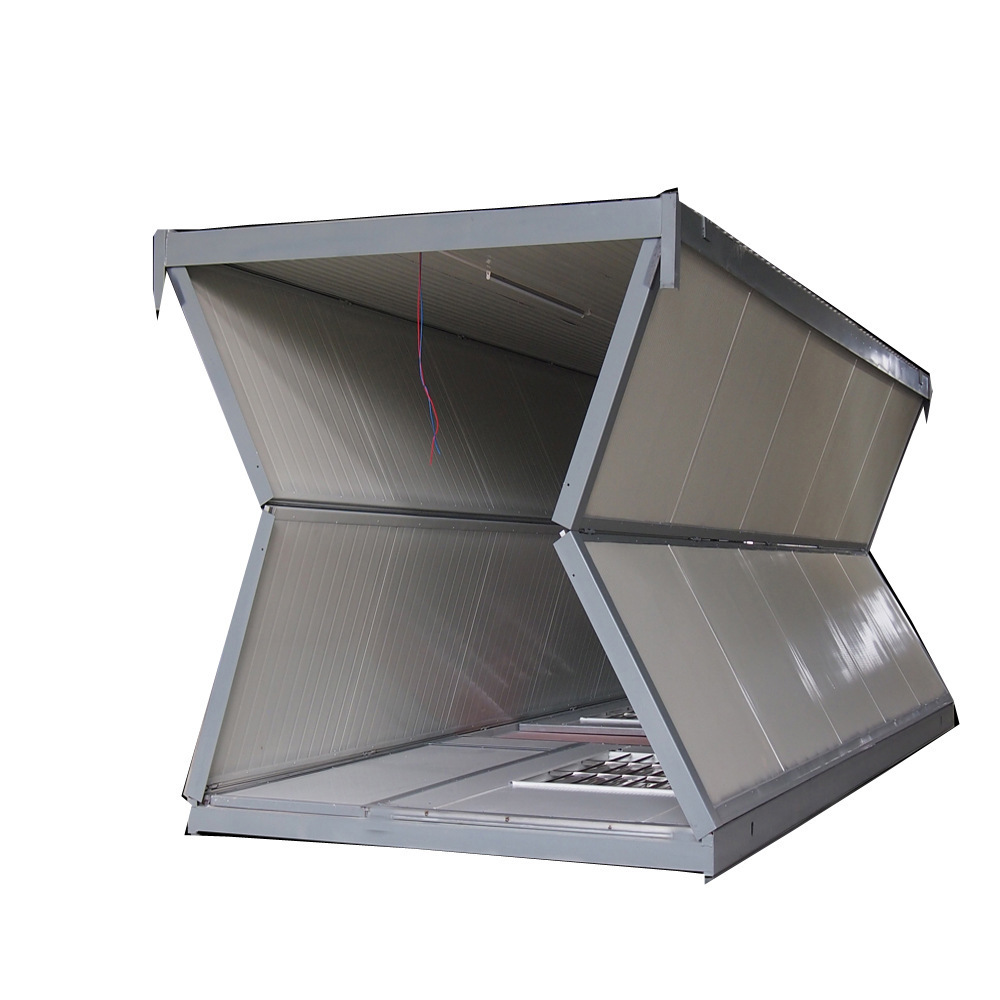

FOLDING CONTAINER HOUSE
|
TYPE
|
SPECS
|
MATERIAL NAME
|
SIZE
|
THICKNESS
|
BASIC SIZE
|
EXTERNAL SIZE(mm)
|
|
5800*2480*2560
|
|
|
INNER SIZE(mm)
|
|
5640*2320*2400
|
|
|
FOLDING SIZE(mm)
|
|
5800*2480*380
|
|
|
TOTAL WEIGHT(kg)
|
|
1100
|
|
|
TOP FRAMES
|
Q235B rectangle tube
|
40*40
|
1.5mm
|
|
|
Q235B rectangle tube
|
20*40
|
1.5mm
|
|
|
Q235B rectangle tube
|
60*80
|
1.5mm
|
|
|
P type tube
|
40*40
|
1.5mm
|
|
|
Glass wool
|
|
65mm
|
|
|
Suspended ceiling
|
|
0.3mm
|
|
5.8m wall sides
|
Q235 rectangle tube
|
40*80
|
1.5mm
|
|
|
P type tube
|
40*80
|
1.5mm
|
|
|
Hinge
|
high sttength
|
|
|
|
Wall sheets
|
double 0.3mm
|
50mm
|
|
|
Galvanized corner
|
|
0.7mm
|
|
|
D type&E type rubber strips
|
|
|
|
2.48m wall sides
|
P type tube
|
40*80
|
1.5mm
|
|
|
Wall sheets
|
double 0.3mm
|
65mm
|
|
|
Window
|
920*920
|
4mm
|
|
|
Hanging head baffle
|
|
|
|
|
door
|
970*1970
|
10mm
|
|
|
D type black rubber strip
|
|
|
|
Bottom frames
|
customized bottom gal.sheet
|
160*80*2.8m
60*80
|
1.5mm
|
|
|
Hinge
|
high sttength
|
1.5mm
|
|
|
Q235B rectangle tube
|
40*60
|
1.7mm
|
|
|
floor
|
|
1.5mm
|
CONTAINER TOP
|
Integral frame coating
|
electrostatic spraying
|
|
External sheet
|
Gal.sheet 0.45mm*1.5m*5.95m*2pcs
|
|
Internal sheet
|
color steel sheet V831/0.3mm
|
WALL
|
5.8m wall sides
|
50mm EPS sandwich panels 0.35mm sheets+EPS foam
|
|
2.48m wall sides
|
65mm EPS sandwich panels 0.35mm +EPS foam
|
FLOOR
|
fireproof MGO floor 15mm
|
|
|
|
|||
ELECTRIC SYSTEM
|
All as the electric requirements of CE certificate.With 4² international soft copper line,20A circuit breaker,2.5² line for
socket,5 hole single open socket(one piece),AC socket one piece,one LED light.
|
|
|
|
|||
ANTI-THEFT DOOR
|
high quality anti-theft door(warm white color)with size 970W*1970L
|
|
|
|
|||
WINDOW
|
920*920 sliding plastic steel window with 4mm thickness glass(warm white color and double glasses,with insect screen)
|
|
|
|
|||
QUALITY WARRANTY
|
10 years
|
|
|
|
|||
ROOF PRESSURE-BEARING
|
1.0 KN/m2
|
|
|
|
|||
BUILDING PRESSURE-BEARING
|
4.2 KN/m2
|
|
|
|
|||
FLOOR PRESSURE-BEARING
|
2.0 KN/m2
|
|
|
|
|||
WALL PRESSURE BEARING
|
0.5 KN/m2
|
|
|
|
|||
FIREPROOF LEVEL
|
A grade
|
|
|
|
|||
ANTI-EARTHQUAKE LEVEL
|
8 grade
|
|
|
|
|||
ANTI-WIND LEVEL
|
10 grade
|
|
|
|
Can be customized according to your needs any size!
Please contact customer service, they will be professionally customized for you!
CLICK HERE FOR DISCOUNT
Advantage:
1.100% folding design.(Except door lock)
2.100% fire proof and water proof.
3.2 workers can install 1 set in only 5 minutes.
4.The installation is very simple, with less cost, time saving, labor saving and convenient transportation.
5.Glavanized steel all steel structures are spray painting process and can be used for 20 years.
6.Diversified Specification:
Our design can be customized.
The doors, windows,the front and back walls can be exchanged each other.
And the partition walls according to the customers’ requirements.
7.Change the internal space of the container according to your space
Prefabricated box house is a modular building product based on steel frame and light wall panel structure system. This product adopts the proprietary third-generation packing box technology, which is composed of top frame, bottom frame, corner post and interchangeable wall panels. It can be packaged, easy to install, and convenient for land or sea transportation. It can be used as an office, accommodation, restaurant , sanitary ware and combined large space use, which can meet the needs of construction site barracks, field work barracks, municipal resettlement houses and various commercial houses. It is currently widely used in Europe, Africa, Southeast Asia, North America, South America and the Middle East and other regions .
Rock Wool
New fire-proof rock wool sandwich panel is made of two layers of high-quality color coated steel plates or other precision-shaped metal plates. Vertical to the upper and lower layers of steel plates), high-strength, high-adhesion, and high-fire-proof adhesives are used to bond high-quality rock wool and metal panels to form a beautiful, flat, rigid and tough building board. The formed board has excellent fire protection, thermal insulation, environmental protection and other characteristics, providing an excellent choice for industrial building envelope systems.
Partial equipment display
Partial raw material show
