Quick Details
-
Color:
-
Black
-
Usage:
-
Logistic Locker
-
voltage:
-
12V
-
Rated Current:
-
2A
-
Size:
-
6.6 x 7.3 x 1.3cm
-
Suitable for:
-
Security Storage
-
Keyword:
-
Electric Magnetic Door Lock
-
Feature:
-
Easy Installation
-
MOQ:
-
1pcs
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Robotlinking
-
Product Name:
-
Small Locker Electromagnetic Lock
-
Color:
-
Black
-
Usage:
-
Logistic Locker
-
voltage:
-
12V
-
Rated Current:
-
2A
-
Size:
-
6.6 x 7.3 x 1.3cm
-
Suitable for:
-
Security Storage
-
Keyword:
-
Electric Magnetic Door Lock
-
Feature:
-
Easy Installation
-
MOQ:
-
1pcs

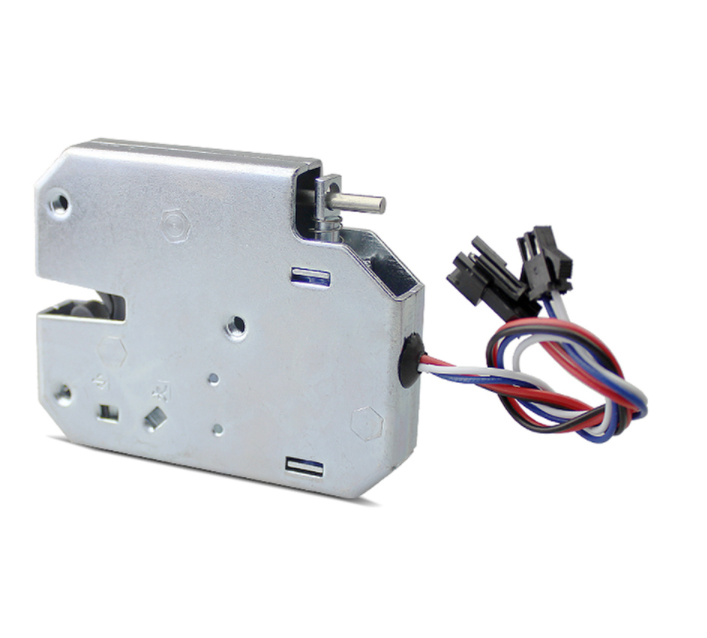

Silver XG07C DC12V 2A Washing Machine Electromagnetic Lock Refrigerated Cabinet Electronic Control Lock
Description:
The electric lock applicable for delivery locks, refrigerated cabinet, mail or newspaper box, self-service lock, book counter, changing clothes cabinet etc. Adopted steel plate for shell and carbon steel for inner material. Strong and safe to use,And it is waterproof
Features:
The electric lock is mainly adopted carbon steel for inner material. Strong and safe to use.
Feedback signal output: feedback signal with short-circuit switch. Disconnect when unlocked, connect when locked Waterproof design: important internal parts are sealed to achieve waterproof effect Security: latch hook can bear 150kg traction, won't obvious permanent deform permanently, shockproof, anti prying. Compact, easy to install, no left, right, front, reverse side limitation, and allowing mechanical lash-up unlocking position. Self Elastic Design: Elasticity adjustable, suitable for weight 0.5~5kg door. Application: Delivery Lockers, refrigerated cabinet, mail or newspaper box, Self-Service Locker, Book Counter,Changing Clothes Cabinet etc.
Feedback signal output: feedback signal with short-circuit switch. Disconnect when unlocked, connect when locked Waterproof design: important internal parts are sealed to achieve waterproof effect Security: latch hook can bear 150kg traction, won't obvious permanent deform permanently, shockproof, anti prying. Compact, easy to install, no left, right, front, reverse side limitation, and allowing mechanical lash-up unlocking position. Self Elastic Design: Elasticity adjustable, suitable for weight 0.5~5kg door. Application: Delivery Lockers, refrigerated cabinet, mail or newspaper box, Self-Service Locker, Book Counter,Changing Clothes Cabinet etc.
Specifications:
Condition: 100% Brand New Main Material: Carbon Steel Surface Treatment: Plated Electrophoretic Paint (neutral frog experiment over 500hours) Work Mode: Independent type (Power off and close the door-Locked;Power on-Unlocked) Electrical Parameters: DC12V/2A Mechanical Life: In Designing Load Condition, about 500 000 times Electromagnet Life: In Rated Working Condition, more than 1 000 000 times Waterproof level: IPX8 level Strength of Lock Hook: 150kg force (no permanent deformation) Ambient Temperature: -10℃~70℃ Size: Approx. 6.6 x 7.3 x 1.3cm Package Weight: 164g
Requirements for use:
The
power-on unlocking time of the electromagnetic lock needs to be controlled within 1-3 seconds, and it is not possible to maintain
the power-on unlock state for a long time, otherwise the internal components will be damaged Package Included: 1 x
Electronic
Lock
(With detection switch)
