Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
ranking
-
Model Number:
-
P0.5T
-
Place of Origin:
-
China
-
Cable Length:
-
1m
-
Outlet Size:
-
1"
-
Power:
-
640W
-
motor:
-
N/A
-
flow rate:
-
3~8L/min
-
wet material:
-
SS304/316L
-
inlet size:
-
38mm
-
outlet size:
-
20mm
-
air supply pressure:
-
0.3~1Mpa
-
lift head:
-
100m
-
Cylinder pressure ratio:
-
2:1
Quick Details
-
Application:
-
Other, Food and Beverage Industry, Pharmaceutical industry, Washing and Cleaning, Paint processing
-
Pressure:
-
10bar
-
Voltage:
-
N/A
-
Warranty:
-
1 year
-
Brand Name:
-
ranking
-
Model Number:
-
P0.5T
-
Place of Origin:
-
China
-
Cable Length:
-
1m
-
Outlet Size:
-
1"
-
Power:
-
640W
-
motor:
-
N/A
-
flow rate:
-
3~8L/min
-
wet material:
-
SS304/316L
-
inlet size:
-
38mm
-
outlet size:
-
20mm
-
air supply pressure:
-
0.3~1Mpa
-
lift head:
-
100m
-
Cylinder pressure ratio:
-
2:1
Product Description

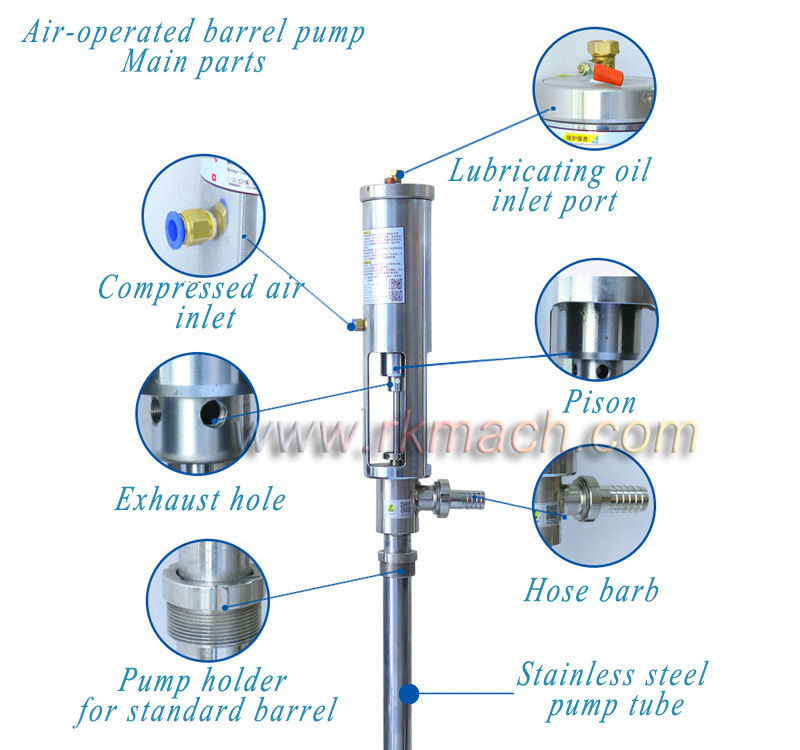

Pneumatic piston transfer pump is ideal for high viscosity liquid with poor fluidity like ink, glue, gel, grease, honey, petroleum jelly, preserve etc. W ith our air driven piston transfer pumps, which feature an enclosed, dual seal wet cup design. you can evacuate directly from pails, bins or drums.
Specification
Every transfer process are unique. To fit every unique applications, we have several different pumps for you to choose from
| No. | Model | P0.5T | P0.8T |
| 1 | flow rate | max 500L/h | max 800L/H |
| 2 | lift head | 0~100m | |
| 3 | inlet size | 38mm | |
| 4 | outlet size | 20mm | |
| 5 | max particles size allowed | 1mm | |
| 6 | air inlet size | 8mm | |
| 7 | air supply pressure | 0.3~1Mpa | |
| 8 | outlet pressure | 0.3~1Mpa | |
| 9 | air consumption | 0.3~1CBM/min | |
| 10 | Pump barrel outer diameter | 80mm | |
| 11 | total length | 1320mm | |
| 12 | net weight | 8kg | |
| 13 | packing by | wooden case |
