Quick Details
-
Application:
-
Other
-
Design Style:
-
Modern
-
Type:
-
Suspended Platform
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
suspended platform
-
Model Number:
-
zlp630 zlp800 zlp1000
-
model:
-
zlp630 zlp800 zlp1000
-
Material:
-
painted steel, hot dipped galvanized, aluminum
-
Rated Load:
-
500kg/630kg/800kg/1000kg
-
Motor:
-
2*1.5 kw/2*1.8kw/2*2.2kw
-
Motor rotation speed:
-
1420(r/min)
-
Max Lifting height:
-
300m
-
Voltage:
-
220V,380V,400V,415V,440V 3-phase 50HZ/60HZ
-
Diameter of steel rope:
-
8.3mm 8.6mm 9.1mm
-
Safety Rope Diameter:
-
18mm 20mm
-
Platform Length:
-
5m,6m,7.5m
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Free spare parts
-
Project Solution Capability:
-
Others
-
Application:
-
Other
-
Design Style:
-
Modern
-
Type:
-
Suspended Platform
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
suspended platform
-
Model Number:
-
zlp630 zlp800 zlp1000
-
model:
-
zlp630 zlp800 zlp1000
-
Material:
-
painted steel, hot dipped galvanized, aluminum
-
Rated Load:
-
500kg/630kg/800kg/1000kg
-
Motor:
-
2*1.5 kw/2*1.8kw/2*2.2kw
-
Motor rotation speed:
-
1420(r/min)
-
Max Lifting height:
-
300m
-
Voltage:
-
220V,380V,400V,415V,440V 3-phase 50HZ/60HZ
-
Diameter of steel rope:
-
8.3mm 8.6mm 9.1mm
-
Safety Rope Diameter:
-
18mm 20mm
-
Platform Length:
-
5m,6m,7.5m
Video Description
ZLP800 /1000 Specification
ZLP630 Specification
ZLP500 Specification
|
Technical Parameter
|
|
|
|
|
||||
|
Type
|
ZLP500
|
ZLP630
|
ZLP800
|
ZLP1000
|
||||
|
Rated Load
|
500KG
|
630KG
|
800KG
|
1000KG
|
||||
|
Platform Sise
|
5x0.69x1.18m
|
6x0.69x1.18m
|
7.5x0.69x1.18m
|
7.5x0.69x1.18m
|
||||
|
Platform material
|
Aluminum Alloy type, steel type with hot galvanized,steel type with painting
|
|
|
|
||||
|
Wire Rope Height
|
0-200m
|
|
|
|
||||
|
Electrical Cable
|
(3x2.5+2x1.5mm2 )0-200m
|
|
|
|
||||
|
Working height
|
0-200m
|
|
|
|
||||
|
Steel rope
|
4pcsx100m,Ф8.3mm,Ф8.6mm,Ф9.1mm
|
|
|
|
||||
|
Hoisting Machinery (Copper winding)
|
LTD5.0
|
LTD6.3
|
LTD8.0
|
LTD10.0
|
||||
|
|
1.5kwx2
|
1.5kwx2
|
1.8kwx2
|
2.2kwx2
|
||||
|
|
15KN
|
15KN
|
15KN
|
15KN
|
||||
|
Lifting speed
|
9.3m/min ± 5%
|
|
|
|
||||
|
Safety Lock
|
LSG20
|
LSG20
|
LSG30
|
LSG30
|
||||
|
|
20KN
|
20KN
|
30KN
|
30KN
|
||||
|
|
Locking Cable Angle: 3°~8°
|
|
|
|
||||
|
Suspension mechanism Hot Galvanized
|
Front beam overhang: 1.3 m
|
|
|
|
||||
|
|
Support adjustable height: 1.1~1.6m
|
|
|
|
||||
|
Power Source
|
380V/50HZ 3Phase, 220V/60HZ 3Phase , 220V/60HZ single phase
|
|
|
|
||||
|
Counterweight
|
800kg
|
1000kg
|
1000kg
|
1200kg
|
||||

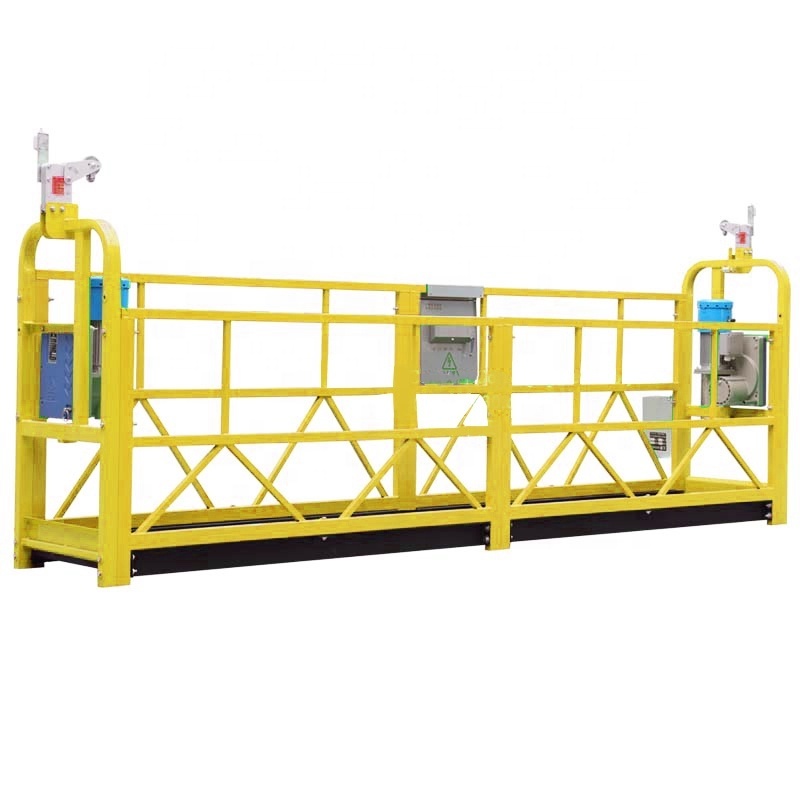

Suspended platform is mainly composed by suspension mechanism, hoist, safety lock, electric control box, working platform.Its structure is reasonable and easy to operate.It can be assembled and disassembly accroding to the actual Demand.The cleaning platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building.
Successful Case
Our Construction gondola for window cleaning machine suspended platform have exported to more than 20 countries with good feedback from customers. We supply site access solutions according to different construction solution.
Technological process
Packing&Delivery
FAQ
1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of model, platform length,loading capacity, material, painting
coat or galvanzied, voltage,with counterweight or not and price terms.
2. What quality certificate you own for your products?
Our products own CCC, CE, EAC and ISO9001 certificate.
3. How about the price?
Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
4. Payment term?
T/T, L/C, Alibaba trade.
5. Spare parts & guarantee?
If any parts get damaged because of quality within 12 months after shipping date. We will send new parts to replace right away.
6. Can you make suspended platform with our brand?
Yes.
7. Can you OEM as customers site situation?
Yes.
8. Delivery time?
According to order quantity, 10-20 working days will be finished after getting the deposit.
Price will offer you immediately after telling us your requirements of model, platform length,loading capacity, material, painting
coat or galvanzied, voltage,with counterweight or not and price terms.
2. What quality certificate you own for your products?
Our products own CCC, CE, EAC and ISO9001 certificate.
3. How about the price?
Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
4. Payment term?
T/T, L/C, Alibaba trade.
5. Spare parts & guarantee?
If any parts get damaged because of quality within 12 months after shipping date. We will send new parts to replace right away.
6. Can you make suspended platform with our brand?
Yes.
7. Can you OEM as customers site situation?
Yes.
8. Delivery time?
According to order quantity, 10-20 working days will be finished after getting the deposit.
