Quick Details
-
Working pressure:
-
Max1.6Mpa
-
Voltage:
-
12V 24V 220V
-
Output torque:
-
3.5NM
-
Material of ball valve:
-
Brass
-
Port size:
-
DN15,DN20,DN25,DN32,DN40,DN50
-
Opening time:
-
<15S
-
Color:
-
Blue/Red/Grey
-
Wiring:
-
CR02(three wire)
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Name:
-
3 way mixing valve with actuator
-
Type:
-
2way/3way
-
Working pressure:
-
Max1.6Mpa
-
Voltage:
-
12V 24V 220V
-
Output torque:
-
3.5NM
-
Material of ball valve:
-
Brass
-
Port size:
-
DN15,DN20,DN25,DN32,DN40,DN50
-
Opening time:
-
<15S
-
Color:
-
Blue/Red/Grey
-
Wiring:
-
CR02(three wire)
Offer Small Electric Ball Valve Actuator 220V 24V DN15 DN20 DN25 DN32 DN40 DN50 Electric ball valve for HVAC systems FCU flow control valve 3 way motorized ball valve 3 way mixing valve with actuator

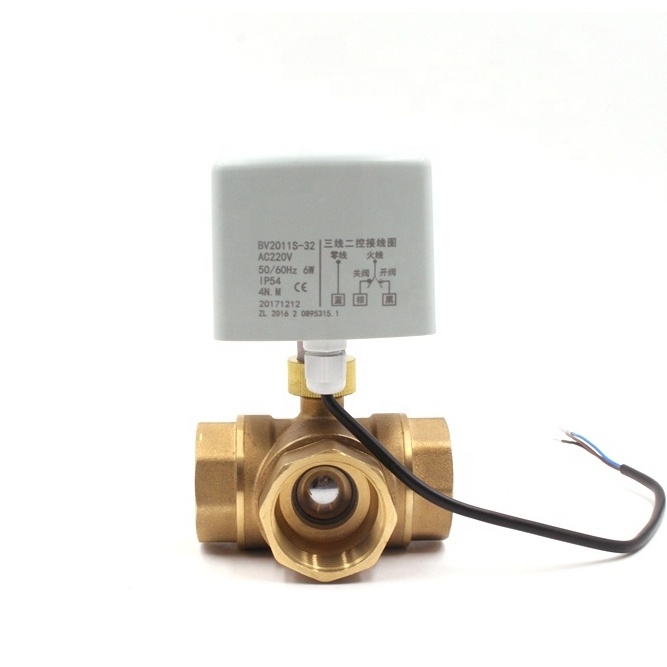

3 way motorized ball valve 3 way mixing valve with actuator
1. Quick and easy install design - specially suitable for on-off control of HVAC, coil fan water
control system.`r and valve body - easy to troubleshoot and maintain.
3. Equipped with indicator lights - convenient to monitor the open/closed status of the valve and
troubleshooting.
4. Synchronous electric drive - stable performance.
5. Built-in limit switches enable automatic power-off when the valve is fully open or fully closed -
energy-efficient and eco-friendly.
6. Compact structure and smart shape - meet different space allocation needs.
7. Electric motor with high power - high output torque of 3.5Nm.
8. Enclosure of IP 65 - can be used in relatively humid environment.
9. Brass forged valve body - durable in use.
3 way motorized ball valve 3 way mixing valve with actuator
| Voltage | Control mode | Nominal pressure | Output torque | Connection end |
| AC220V | CR02 | 1.6Mpa | 3.5NM/4Nm/8Nm | Pipe thread G |
| AC24V | ||||
| Power consumption | Action time | Close differential pressure | Medium temperature | Wire length |
| <6W | <15S | <0.4Mpa | 2-90℃ | 15cm |
3 way motorized ball valve
3 way mixing valve with actuator
fcu control valve
