Quick Details
-
Brand Name:
-
WARWICK
-
Products name:
-

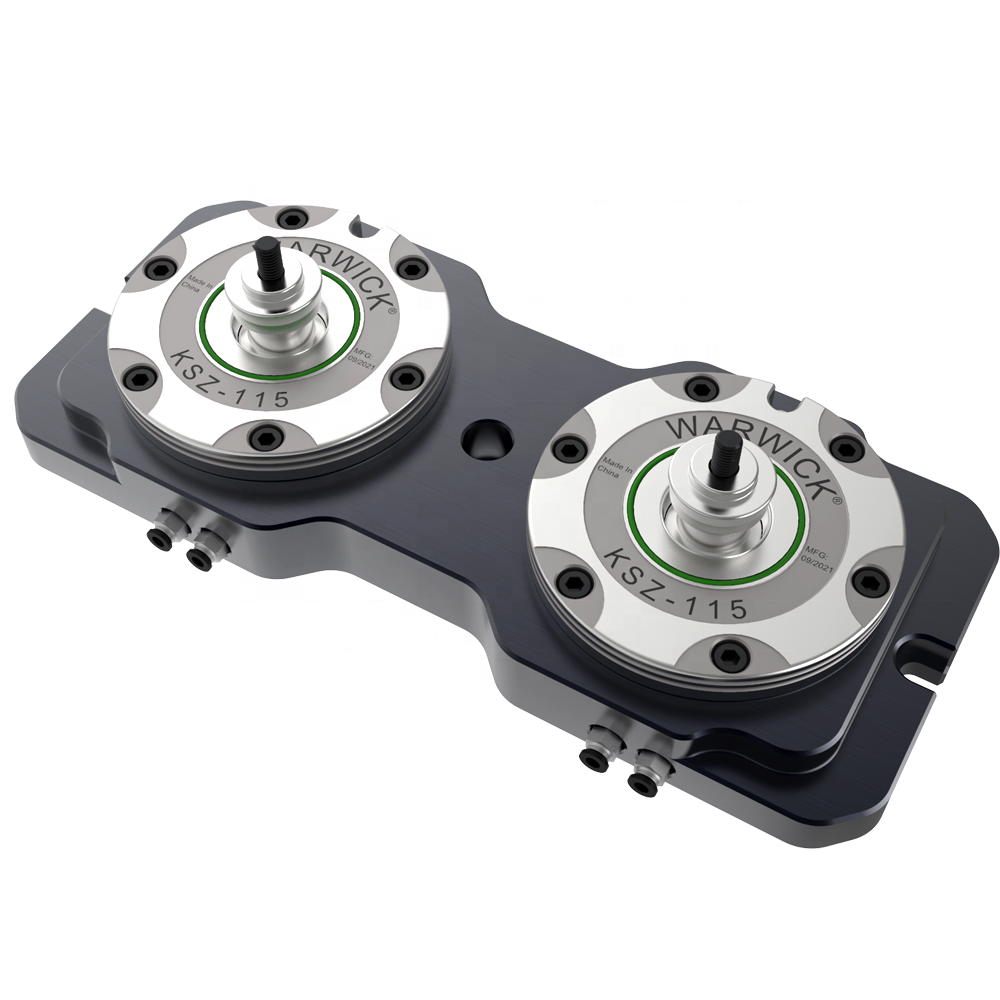

Pneumatic modular Quick-Change Pallet system
-
Model:
-
KSZ115-T2
-
Brand:
-
WARWICK
-
Repeatability:
-
0.005MM
-
Air pressure:
-
6-9 bar
-
Clamping force at 6bar:
-
20KN
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Weight (KG):
-
28
-
Marketing Type:
-
The set-up time optimizer
-
Brand Name:
-
WARWICK
-
Products name:
-
Pneumatic modular Quick-Change Pallet system
-
Model:
-
KSZ115-T2
-
Brand:
-
WARWICK
-
Repeatability:
-
0.005MM
-
Air pressure:
-
6-9 bar
-
Clamping force at 6bar:
-
20KN
-
After-sales Service Provided:
-
Video technical support
The cost include 2pcs clamp pin ,if you need extra clamp pins, pls kindly click the following link for order:
The KSZ115-T2 normally need 1PCS DCPA40+1PCS DCPB40
Quick Change Pallet System
Achieve the perfect connection between machine table and clamping device. Through μ-exact fixing, positioning, and clamping, you will increase the efficiency of your production in a single operation.
Lower your set-up times and costs by up to 90%.
pallet technology with draw-in forces of 5000 N to 25000 N guarantee maximum flexibility!
The advantage: there is one clamping pin size for all module sizes.
Advantages:
Positioning and clamping in one operation
Workpiece/device changed in seconds
Single interface for all machines
Repeat accuracy < 0.005 mm
Fast with precision to < 0.005 mm
from machine table to the measuring machine and back again
