Quick Details
-
Model Number:
-
FZ6231-180/FZ6231-270
-
Size:
-
48x30x75mm (1.58 x 0.79 x 1.50 in)
-
Product name:
-
DS5180 Digital Servo
-
Torque:
-
80KG
-
Model:
-
DS5180
-
Application:
-
1/5 Scale RC Cars
-
Weight:
-
160 g
-
Motor Type:
-
DC Motor
-
Gear Type:
-
Copper & Aluminum
Quick Details
-
Use:
-
Vehicles & Remote Control Toys
-
Place of Origin:
-
China
-
Brand Name:
-
Stemedu
-
Model Number:
-
FZ6231-180/FZ6231-270
-
Size:
-
48x30x75mm (1.58 x 0.79 x 1.50 in)
-
Product name:
-
DS5180 Digital Servo
-
Torque:
-
80KG
-
Model:
-
DS5180
-
Application:
-
1/5 Scale RC Cars
-
Weight:
-
160 g
-
Motor Type:
-
DC Motor
-
Gear Type:
-
Copper & Aluminum
Products Description
|
Customization
|
Custom education kit or other similar products
|
|
|
|
|||
|
One-stop Shopping
|
Send us a product list if you need more products
|
|
|
|
|||
|
Freight
|
Please contact the seller to reconfirm the freight when you think it is high
|
|
|
|
|||
|
Bulk Order
|
Discount for bulk orders, please contact sales01@flyfuntech.com
|
|
|
|
|||
Excellent - Big servo 80kg HV Robotic Servo for 1/5 Redcat HPI Baja 5B SS RC Crawler compatible SAVOX-0236 LOSI XL 5T
High Quality - full stainless steel gears,durable power cord and parts,CNC aluminium middle Shell,water-proof sealing silicone loop,dual ball bearing.To easure longer serive time,high speed low noise
Support High Voltage - the best volts is 7.4V, It's recommended to use 2S battery for power supply 6-8.4V
Best for your DIY Projects: easy to install,widely used in remote control crawler cars vehicle truck boat aircraft helicopter robot arm ect.
Dimension: 2.55x1.18x1.89inch (65*30*48mm);
Weight: 162g (5.71oz)
Operating Voltage: 6 – 8.4Volts DC
Speed:
▶0.24sec/60 degree @6V
▶0.21sec/60 degree @7.4V
▶0.19sec/60 degree @8.4V
Torque:
▶85kg.cm(1180oz-in) @6V
▶98kg.cm(1361oz-in) @7.4V
▶105kg.cm(1458oz-in)@8.4V
Operating Temperature: -25°C~70°C
Waterproof performance: IP67
Control angle: 180 degree / 270 degree
Bearing: 2BB
Voltage: 6v-8.4v
Dead Zoon setting: 3 Microseconds
Horn Gear Spline: 18 Tooth
Case Material : Engineering Plastic & Aluminum Alloy
Motor Type: Brushed
Command Signal: Pulse Width Modification
Amplifier Type: Digital Controller
Pulse Width Range: 500～2500usec
Neutral Position: 1500usec
Running Degree: 180±3°(PWM 500～2500usec)
Dead Band Width: 3 usec
Rotating Direction Counterclockwise: (when 1000～2000usec)
CE /RoHs:Yes

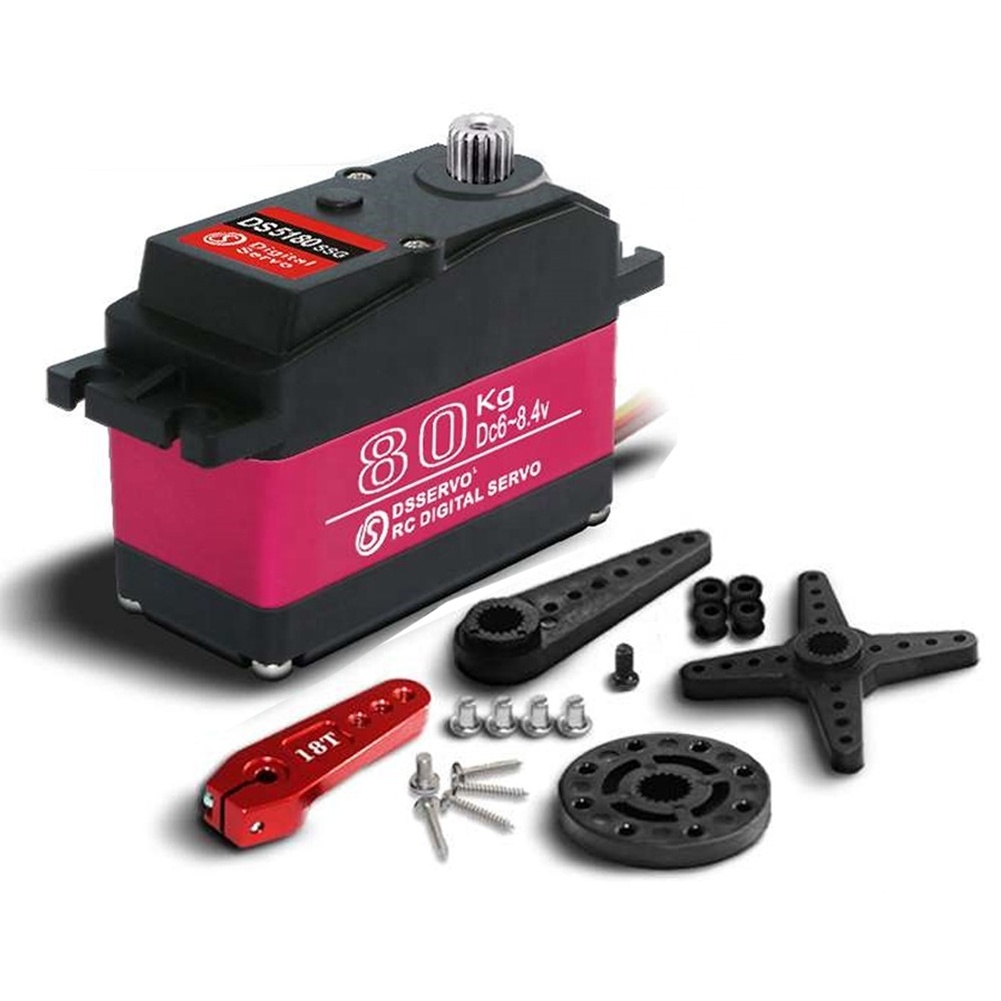

Package Included:
1 x DS5180 Digital Metal Robotic Servo;
1 x 18T Adjustable metal servo arm;
1 x Accessories (like pictures)
1 x DS5180 Digital Metal Robotic Servo;
1 x 18T Adjustable metal servo arm;
1 x Accessories (like pictures)
