Rubber Plastic Incinerator Price Industrial For Poultry Farm Sanitary Pad Incenerator

Rubber Plastic Incinerator Price Industrial For Poultry Farm Sanitary Pad Incenerator

FOB Reference Price: Get Latest Price

≥1 Sets

US $8900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: KTL-30

Power:: 0.25

Material:: Wooden box

Marketing Type:: New Product 2024

Weight (KG):: 2100 kg

Name:: Waste Incinerator

Application:: Solid Waste

Raw material:: Carbon Steel and High Temperature Materials

Certification:: CE

Function:: Waste Burning

Fuel:: Diesel/Natural gas/LPG

Final product:: Ashes

Voltage:: 380v/220v

Advantage:: Easy Opperation

Size:: 1300*800*2300 mm

Quick Details

Production Capacity:: 20-30kg/batch

Place of Origin:: Shandong, China

Brand Name:: KTL

Model Number:: KTL-30

Power:: 0.25

Material:: Wooden box

Marketing Type:: New Product 2024

Weight (KG):: 2100 kg

Name:: Waste Incinerator

Application:: Solid Waste

Raw material:: Carbon Steel and High Temperature Materials

Certification:: CE

Function:: Waste Burning

Fuel:: Diesel/Natural gas/LPG

Final product:: Ashes

Voltage:: 380v/220v

Advantage:: Easy Opperation

Size:: 1300*800*2300 mm

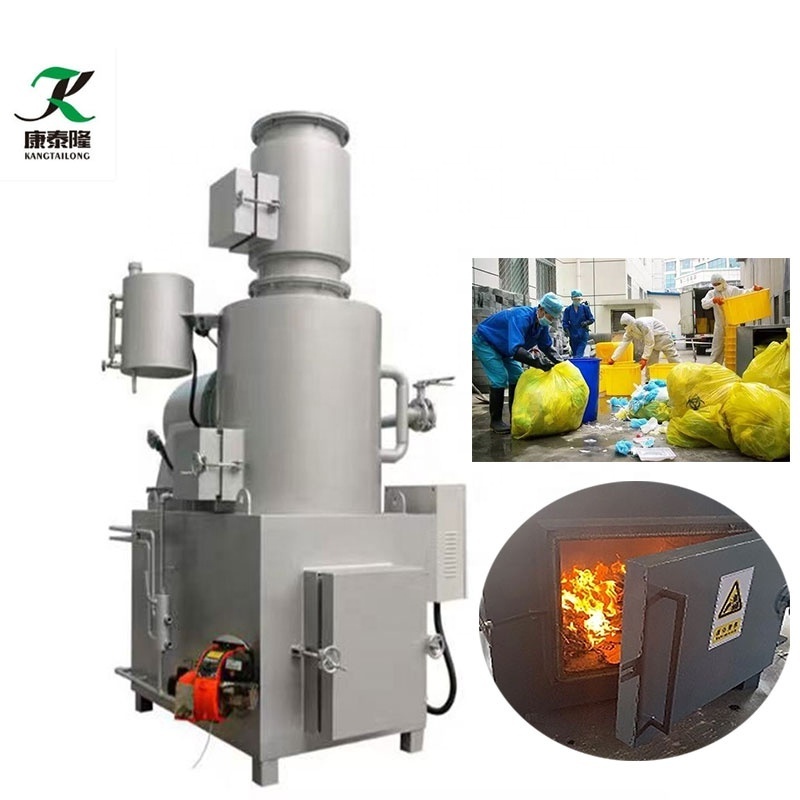

WASTE INCINERATOR

Products Description

Technical characteristics of incinerators KTL series of refuse incinerators adopt the most advanced incineration mode of primary pyrolysis gasification + ambient air mixed combustion + secondary incineration + burnout treatment.The design of the primary combustion chamber of the incinerator adopts the gasification incineration technology to make the temperature in the incinerator move from 200℃ to 400℃, so that the waste will not produce frit, slag block, sintering and other problems in the incineration process, and the dust production is very small .

Application

Advantages of our incinerator：

1. It's easier to operate than other manufactures' incinerators. There is an automatic air blower inside of burner.It's for protection burner, no need to operate it.When you close the burner,the air blower will be stop automatically at a certain time.
2. Low running&maintenance cost .The first burner of first consumption more longer than general burner,it's specially made of save fuel .
3. Environment friendly,Duel chamber design,there is no smoke,no smell,no pollution after waste burning.
4. The highest temperature can reach 1100-1300 degrees Celsius ,which can achieve the effect of sterilization and disinfection.
5. Long service time .Material of construction-Heavy duty steel ,Insulated and refractory lined chambers.
6. Be portable and cover a small area .

Detailed Images

A combustion chamber inside the furnace chamber

Incinerator from inside to outside is composed of refractory brick and refractory cement, insulation material and carbon steel. Make sure the furnace body is not hot when burning, and the surrounding workers will not feel very hot.

Electric Control Box

Lock the device and stop the process in sequence, power off protection device, overload protection (electrical), alarm function.The electronic control system not only performs the closed-loop control of the combustion temperature in the combustion chamber,but also performs the closed-loop control of the oxygen supply time, and coordinates the control between them so that the control system and the control results of each process can meet the requirements, so the entire system of closed-loop control.

Specification

Type	Burning ability （Kg/Batch）	Size *(LWH m )*	Chimney	Total power (KW)	voltage (V)	Weight(Kg)
KTL-30	20~30	*1.30.82.3*	OD219	0.55	220	2000
KTL-50	30~50	*1.4612.59*	OD280	0.55	220	2300
KTL-100	50~100	*1.71.153*	OD280	0.55	220	4000
KTL-150	100~150	*1.81.33.2*	OD280	055	220	5500
KTL-200	150~200	*1.91.43.5*	OD300	0.8	220	7000
KTL-300	200~300	*2.11.553.8*	OD400	0.98	220	8000
KTL-400	300~400	*2.61.754.27*	OD400	1.05	220	11000
KTL-500	400~500	*324.8*	OD500	1.05	220	13000

Our service

Pre-Sales Service

1.Recommend equipment suitable for customers. 2.View the factory and provide inspection reception. 3.Provide sample test and demo operation.

After-Sales Service

1.Video technical support and online support.

2.Field installation,

commissioning and training. 3.Field maintenance,free spare parts and repair service.

Shipment

Company introduction

Shandong Kangtailong Intelligent Equipment Co., Ltd. is a modern enterprise focusing on the production and manufacturing of all kinds of waste incineration equipment.The company is located in Zhucheng, Shandong Province. Our company mainly produces all kinds of waste incinerator equipment, focusing on the solution of municipal solid waste, waste produced by the medical industry to sick and dead animals, industrial waste and other various types of waste produced in all walks of life.The product adopts the principle of thermal incineration of organic waste gas, which decomposes organic matter into inorganic matter and achieves standard discharge of flue gas.
For a long time, the company always adhere to the "science and technology for development, quality for survival" policy, to "pay close attention to quality for credibility, strengthen management for the upper echelon" as the goal, forge ahead, and strive to open up the market.All the employees of the company are willing to excellent products, good service, sincere attitude, and sincerely hope to cooperate with new and old friends closely, hand in hand to forge ahead, a total of grand exhibition.
