Tin Coating Thickness Gauges Meter, Coating Thickness Meter
Tin Coating Thickness Gauges Meter, Coating Thickness Meter

Tin Coating Thickness Gauges Meter, Coating Thickness Meter

FOB Reference Price: Get Latest Price
≥1 Sets
US $415
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
ZL
Model Number:
ZL-1204
Name:
Paint Coating Thickness Tester Gauge Price
Minimum measuring area:
6mm
Thinnest base:
0.3mm
Environment Temperature:
0-40 ℃
Humidity:
10-90% RH
Accuracy:
± (1 ~ 3% n) or ± 2.5um
Dimensions:
126X65X27mm
Weight:
81g (without battery)
Battery voltage indication:
Low Voltage Tips

Quick Details

Warranty:
2 years
Power:
Electronic
Place of Origin:
Guangdong, China
Brand Name:
ZL
Model Number:
ZL-1204
Name:
Paint Coating Thickness Tester Gauge Price
Minimum measuring area:
6mm
Thinnest base:
0.3mm
Environment Temperature:
0-40 ℃
Humidity:
10-90% RH
Accuracy:
± (1 ~ 3% n) or ± 2.5um
Dimensions:
126X65X27mm
Weight:
81g (without battery)
Battery voltage indication:
Low Voltage Tips

Tin Coating Thickness Gauges Meter, Coating Thickness Meter

Product Description

Product Overview:

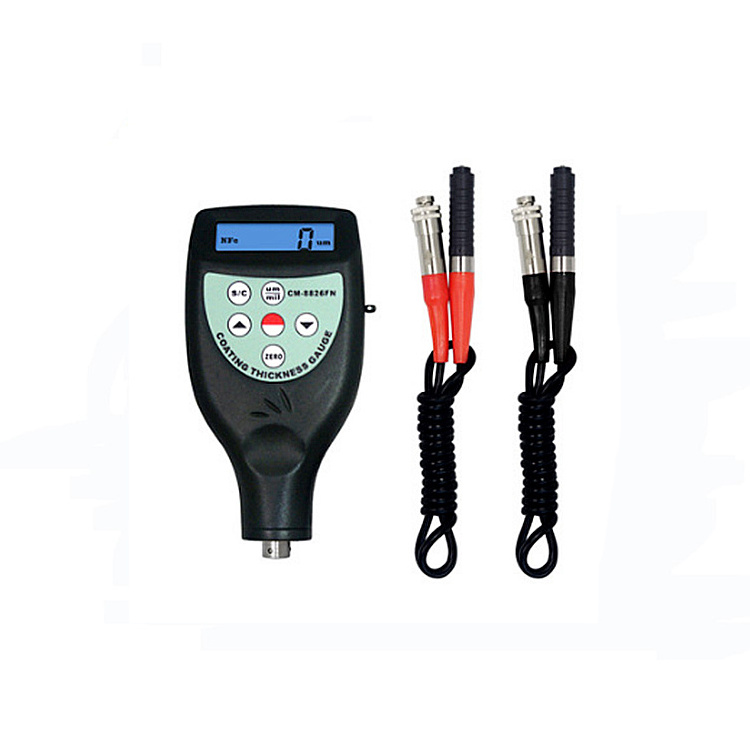

Coating thickness gauge is a portable thickness gauge, which can measure the thickness of coating and coating layer quickly, without damage and accurately.It can be used in engineering field or laboratory. It can meet various measurement requirements through the use of different probes.Widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields;It is a necessary instrument for material protection.

Applications:

Measuring steel, iron and other ferromagnetic metal matrix on the non-ferromagnetic coatings, coating with a magnetic sensor, such as: paint, powder, plastic, rubber, synthetic materials, phosphate layer, chromium, zinc, lead, aluminum, tin, cadmium, porcelain, enamel, oxide layer.

(Integrated sensor coating thickness)
There are five key seven key options

Function

measuring non-magnetic coatings on magnetic object thickness

Measurement Method

F magnetic induction

Measuring range

0-1250um / 0-50mil (standard range) (0-1500un need to customized)

Resolution

0.1 / 1

Minimum surface

F Convex 1.5mm / concave 25mm

Minimum measuring area

6mm

Thinnest base

0.3mm

Environment Temperature

0-40 ℃

Humidity

10-90% RH

Accuracy

± (1 ~ 3% n) or ± 2.5um

Metric / Imperial

Convertible

Power

4 AAA batteries

Battery voltage indication

Low Voltage Tips

Dimensions

126X65X27mm

Weight

81g (without battery)


Optional accessories : ( need to customized)
1 . RS-232 cable and software or online
2. Bluetooth communications and software
