Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Receiver
-
Frequency:
-
433.92Mhz / 315Mhz
-
Keyword:
-
Home Smart Technology
-
Usage:
-
Roller Shutter
-
Power supply:
-
DC12-36V
-
Feature:
-
Wireless Lamp Switch Remote Control
-
Support:
-
433 MHz RF Control
-
Shell:
-
included
Quick Details
-
Function:
-
LED Touch Control, Digital LED Display, Heat Adjustment, Auto shut-off, LED indicator light, Timer Function, Automatic, Voice control
-
Brand Name:
-
RIVERS
-
Model Number:
-
RDL2L
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Receiver
-
Frequency:
-
433.92Mhz / 315Mhz
-
Keyword:
-
Home Smart Technology
-
Usage:
-
Roller Shutter
-
Power supply:
-
DC12-36V
-
Feature:
-
Wireless Lamp Switch Remote Control
-
Support:
-
433 MHz RF Control
-
Shell:
-
included
Product Description

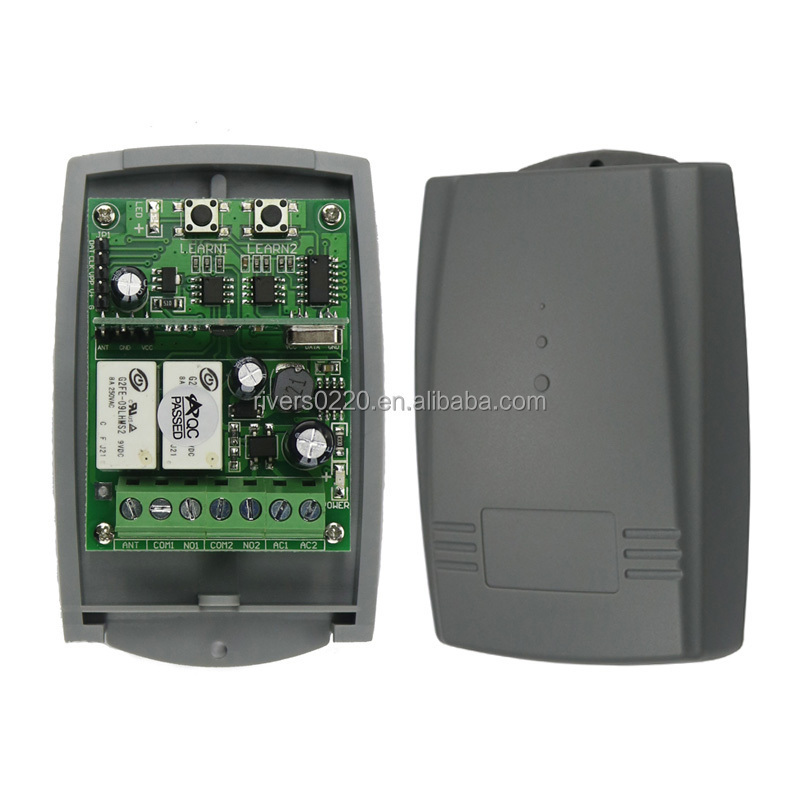

The main technical parameters--Receiver
1. Model: AK-DL2L
2. Working voltage: 12-36V
3. Quiescent current: 10mA
4. Working current: 20mA-30mA
5. Working temperature: -20℃-80℃
6. Receiving sensitivity: -103dBm
7. Working frequency: 315/433 frequency
8. Size: 62mm*46mm
9. Supported remote control types: learning code, fixed code (customizable rolling code).
10. Multiple working modes: jog, self-locking
The main technical parameters--Remote
1. Model : R208
2. Channel: Two/ Four
3. Remote Control Distance: 1000 meter(open/ideal) in theory
4. Encode: Learning code EV1527,Fixed code, soldering
5. Frequency: 433 MHz, 315 MHz
6. Power Supply: 12V/23A (battery included)
7. Support Services: Support shipping for Amazon, free QR code stickers. WELCOME
2. Channel: Two/ Four
3. Remote Control Distance: 1000 meter(open/ideal) in theory
4. Encode: Learning code EV1527,Fixed code, soldering
5. Frequency: 433 MHz, 315 MHz
6. Power Supply: 12V/23A (battery included)
7. Support Services: Support shipping for Amazon, free QR code stickers. WELCOME
Specification
|
Model
|
RDL2L (Receiver)
|
|
Operating frequency
|
433.92 MHz/315MHz
|
|
Frequency deviation
|
± 0.2MHz
|
|
Operating voltage
|
DC12-36V
|
|
Operating current
|
20mA-30mA
|
|
Receiving sensitivity
|
-103dBm
|
|
Operating temperature
|
-10 ℃ ~ +60 ℃
|
|
Inside PCB Size
|
62mm*46mm（mm）
|
|
Signal output method
|
L4:Latch-signal interlocking,
M4:Momentary-signal non-locking ,
T4:Toggle-signal self-locking ,
|
|
Decoder chip
|
Learning code (Program IC), It
can learn with transmitter which is fixed code (PT2262/PT2264/SC2262) and learning code(EV1527) |
|
Support Services
|
Support shipping for Amazon, free QR code stickers.
WELCOME
|
Working Mode
Momentary. Toggle .Latched
Momentary
press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control
Toggle
press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control
Latched
press one button is working/ON ,press another button is stop/OFF . ( one channel switch need 2 buttons remote control )
Clear code
Long press the learning button until the indicator light is always off.
Momentary
Press the learning key 1 once to release, immediately press any key on the remote control, the indicator light flashes five times quickly, indicating that the No. 1 relay is successfully learned; press the learning key 2 to release, repeat the above steps to learn the No. 2 relay;
Toggle
Press the learning key 1 twice to release, immediately press any key on the remote control, the indicator light flashes five times quickly, indicating that the No. 1 relay is successfully learned; press the learning key 2 to release, and repeat the above steps to learn the No. 2 relay;
Latched
Download---The Manual of RQ1
