Quick Details
-
Power:
-
5W
-
Voltage:
-
DC12V-36V
-
Warranty:
-
15 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunveytech
-
Model Number:
-
HQ2-CX77+609T1+X04T1
-
Screen Size:
-
7 Inch IPS Color Monitor
-
Channel numbers:
-
2 Cameras (Ch1/Ch2)
-
Resolution:
-
1024*RGB*600
-
Shockproof Level:
-
4G
-
Compatible system:
-
NTSC & PAL (automatically)
-
Cam Illuminance:
-
0.005 Lux, IR ON
-
Camera Waterproof Rate:
-
IP 68
-
Power Requirements:
-
DC 12V-36V
-
Storage temperature:
-
-30℃ to 80℃
-
Consumption:
-
<3W
Quick Details
-
Car Fitment:
-
Universal
-
View Angle:
-
120°-170°
-
Function:
-
Waterproof, NIGHT VIEW, Parking Line
-
Power:
-
5W
-
Voltage:
-
DC12V-36V
-
Warranty:
-
15 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunveytech
-
Model Number:
-
HQ2-CX77+609T1+X04T1
-
Screen Size:
-
7 Inch IPS Color Monitor
-
Channel numbers:
-
2 Cameras (Ch1/Ch2)
-
Resolution:
-
1024*RGB*600
-
Shockproof Level:
-
4G
-
Compatible system:
-
NTSC & PAL (automatically)
-
Cam Illuminance:
-
0.005 Lux, IR ON
-
Camera Waterproof Rate:
-
IP 68
-
Power Requirements:
-
DC 12V-36V
-
Storage temperature:
-
-30℃ to 80℃
-
Consumption:
-
<3W

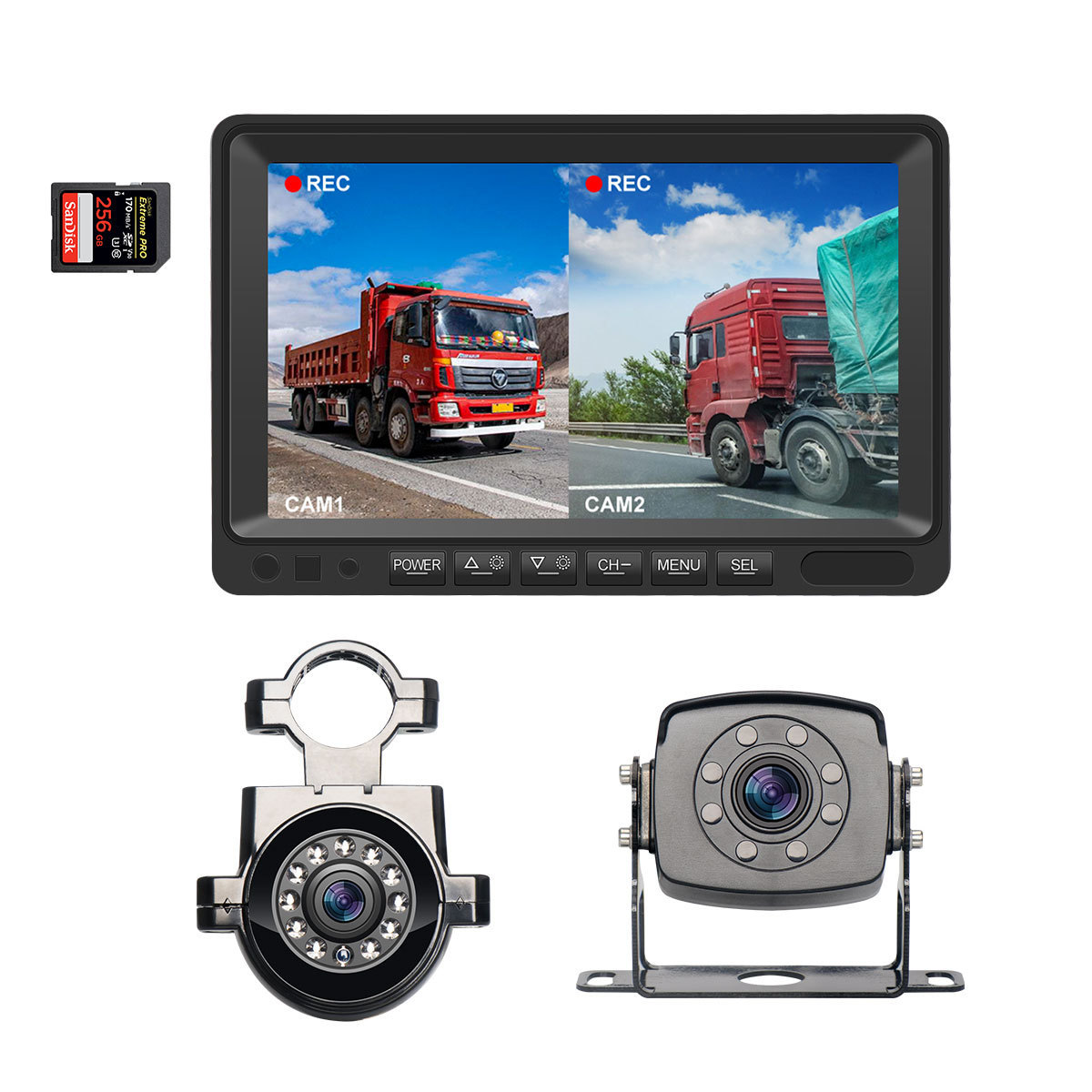

HD 1024*600 HD 1024*600 7 Inch IPS Screen 2CH Waterproof Wide View Angle Backup Camera and Monitor Kit System
[1080P AHD Technology]
Adopted With AHD 1080P Image Processor Chip, The Backup Camera System Will Ensure You The Sharpest Pictures Ever! No Signal Interference With Super Stable Quality, Stay Smooth And Clear At High-Speed.
[Durable Metal Housing, Remarkable Waterproof]
Completely Waterproof With An IP68 Rating. This Is Actually The Highest IP Rating There Is And Means The Camera Will Work Fine In All Weather Conditions.
[Flexible Vehicle Compatibility]
Voltage Range From 9-36V DC Power To Accommodate a Wide Variety of Large Vehicle as Semi-Trailer/Box Truck/5th Wheel/Trailer/Bus. Hard Wired System is Also Easy to Install with the Included Professional Instructions.
[Full Angle without Blind Spots Vision]
With An Ultra Wide Viewing Angle and IPS Full View Screen, The Backup Camera will Provide A Complete View From Behind Your Vehicle. This Ensures Complete Safety with No Blind Spots.
|
7 ’’ IPS Color Monitor |
Camera 1 |
Camera 2 |
|||
|
Model |
CX77 |
Model |
609 |
Model |
X04 |
|
S ystem |
NTSC & PAL |
S ystem |
NTSC & PAL |
S ystem |
NTSC & PAL |
|
Resolution |
1024 * RGB*60 0 |
Resolution |
1920*1080 |
Resolution |
1920*1080 |
|
Back Light Luminance |
500cd/stere |
Illuminance |
0 .005 Lux, IR ON |
Illuminance |
0 .005 Lux, IR ON |
|
Screen Ratio |
16 : 9 |
Waterproof Level |
IP68 |
Waterproof Level |
IP68 |
|
OSD control |
Brightness, Contrast, Saturation, Language |
Viewing Angle |
1 00 ° [H] |
Viewing Angle |
1 30 ° [H] |
|
Power |
DC 12-36V |
Power |
DC 12-36V |
Power |
DC 12-36V |
|
C onsumption |
< 5W |
C onsumption |
< 3 W |
C onsumption |
< 3 W |
|
Storage temperature |
-30℃ to 80℃ |
Storage temperature |
-30℃ to 80℃ |
Storage temperature |
-30℃ to 80℃ |
|
Working temperature |
-20℃ to 70℃ |
Working temperature |
-20℃ to 70℃ |
Working temperature |
-20℃ to 70℃ |
|
Accessories |
User manual, Bracket, Hexagon wrench, Hexagon screws, S unshade |
||||
|
Package |
2.5KG/PCS 10sets/Carton Gross weight:16KG /CTN Dimension : 56*30*44cm |
||||
