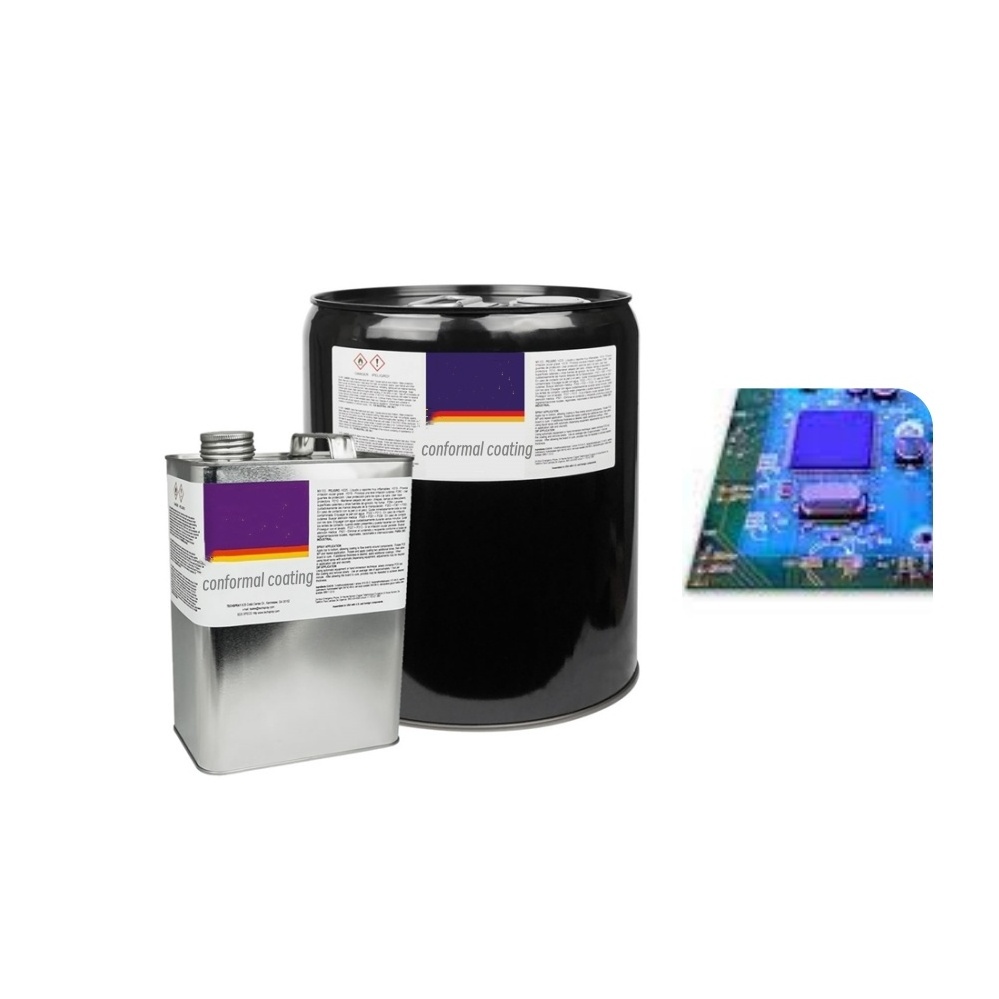

Silicone Conformal Coating Spray For PCBS Protection

Silicone Conformal Coating Spray For PCBS Protection

FOB Reference Price: Get Latest Price

≥1 Kilograms

US $35.1

≥200 Kilograms

US $34.2

≥500 Kilograms

US $33.3

≥1000 Kilograms

US $32.4

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

EINECS No.:: 203-625-9

Place of Origin:: Jiangxi, China

Brand Name:: SAN CHEN

Model Number:: SC-9277

Product Name:: silicone Conformal coating

Application:: electrical insulating paint, coating, molding materials

Appearance:: Transparent Colorless Liquid

Packing:: barrel

Material:: silicone

Feature:: high solid content

Advantage:: Good adhesion, high hardness, corrosion resistance

Effect:: Dust-proof, shock-proof, anti-chemical corrosion

Viscosity ,25℃,CPs:: 800-1100

Hardness, shore D:: ≥22

Quick Details

CAS No.:: 68952-93-2

Other Names:: METHYLPHENYLSILSESQUIOXANE

MF:: H4Si

EINECS No.:: 203-625-9

Place of Origin:: Jiangxi, China

Brand Name:: SAN CHEN

Model Number:: SC-9277

Product Name:: silicone Conformal coating

Application:: electrical insulating paint, coating, molding materials

Appearance:: Transparent Colorless Liquid

Packing:: barrel

Material:: silicone

Feature:: high solid content

Advantage:: Good adhesion, high hardness, corrosion resistance

Effect:: Dust-proof, shock-proof, anti-chemical corrosion

Viscosity ,25℃,CPs:: 800-1100

Hardness, shore D:: ≥22

Why You Should Use Conformal Coating To Protect Electronic PCB Circuit Boards?

The circuit board is the most essential part of electronics design. It is responsible for carrying electrical signals to and from
the motherboard, peripheral cards, and power supply so that they can perform their designated functions.

Without a circuit board,modern technology would not even exist. That’s why manufacturers of electronic products need to take every precaution possible to protect these delicate devices from exposure to harmful substances and extreme temperatures.

Conformal Coating Overview

Conformal coating is a thin layer of material that is applied to the surface of an electronic circuit board. This coating protects the circuit board from the environment and prevents damage to the components. Conformal coating is available in various materials,including acrylic, polyurethane, silicone, and epoxy.
Conformal coating is applied using various methods, including spray, dip, and brush. The most common way is a spray used for large circuit boards. Dip and brush methods are typically used for smaller boards or areas that are difficult to reach with a sprayer.Conformal coating can be applied before or after the circuit board is assembled. If used before assembly, it is essential to ensure that the layer does not come into contact with any components. The components must be protected from the coating material if applied after assembly.
Conformal coating is typically applied in a controlled environment to ensure that the coating material does not come into contact with dust or other contaminants. The coated circuit board is then placed in a curing oven to harden the coating.Conformal coating provides several benefits to circuit boards. It protects the components from damage due to moisture, humidity,and other environmental factors. It also prevents short circuits by insulating the conductive paths on the circuit board.Conformal coating can also improve the reliability of circuit boards by reducing the risk of solder joint failure. Solder joints are often the weakest point on a circuit board.

Advantages of Conformal Coating

Conformal coating provides many advantages over other methods of protecting electronic circuit boards. It is an extremely thin film applied to the board’s surface, and it conforms to the contours of the circuit board, providing a uniform layer of protection. Conformal coating is also highly resistant to moisture and chemicals, making it ideal for protecting circuit boards exposed to harsh environments.

How to Choose the Right Material?
When choosing the suitable material for your conformal coating needs, there are a few key factors you’ll want to keep in mind. The first is the environment in which the coated PCB will be used. If it is exposed to harsh chemicals or high temperatures, you’ll need a material that can withstand those conditions. There are a variety of conformal coatings on the market that are designed for different applications, so make sure to choose one that’s appropriate for your needs.
Another essential factor to consider is the thickness of the coating. Too thin and it won’t provide adequate protection; too thick and it could interfere with the circuit board’s performance. The thickness will also affect the drying time, so factor that into your decision.Finally, you’ll want to consider the cost of the conformal coating material and compare it to other options on the market. In many cases, price shouldn’t be the only deciding factor, but it’s something you’ll need to take into account nonetheless.By keeping these factors in mind, you can be sure to choose the suitable material for your conformal coating needs.

Common Design Flaws and How To Prevent Them?

Regarding the design of electronic circuit boards, a few common flaws can lead to problems down the line. Here are some of the most common design flaws and how you can prevent them:
More clearance around components: Components on a circuit board need more support around them, so they don’t come into contact with each other or other parts of the board. This can cause shorts or other problems.
Traces that are too close together: Traces on a circuit board need to be spaced far enough apart, so they don’t short out. This is especially important for high-current traces.
More vias: Vias are connections between layers of a circuit board. They’re essential for routing signals and power around theboard. If there aren’t enough vias, signals can get lost or corrupted.
Improper use of ground planes: A ground plane is a large area of copper on a circuit board that provides a low-impedance return path for signals and power. If it’s not used correctly, it can cause many problems.
These are just a few of electronic circuit boards’ most common design flaws. You can help prevent them from happening in your designs by being aware of them.

What is the Proper Procedure for Applying Conformal Coatings?

There are many different types of conformal coatings, each with its specific application process. However, general steps should be followed when applying a conformal coating to an electronic circuit board.
1. The first step is to clean the circuit board. This can be done with various methods, but it is essential to remove all dirt,
grease, and other contaminants from the board’s surface.
2. Once the board is clean, a thin layer of conformal coating material should be applied evenly over the entire surface.
3. The coated board should be cured using either ultraviolet light or heat.
4. After curing, the circuit board will need to be inspected to ensure that the coating is applied correctly and that there are no defects.

Product Description

1. Name : SC-9277 silicone Conformal Coating

One-part, transparent medium viscosity conformal coating with firm, abrasion resistant surface after cure

2. FEATURES :

1. One Part Silicone Resin Solution
2. Cures to a tough, elastoplastic, resilient, abrasion resistant surface
3. Solvent-borne resin coating
4. Room temp cure with optional heat acceleration after solvent flash-off
5. UV indicator for inspection
6. UL V-0 flammability rating
7.. RT cure, no ovens required
8. Mild heat acceleration (after solvent flash-off) can speed in-line processing
9. Good adhesion allows use with many low-solids (no clean) and no-lead solders
10. UV indicator allows for automated inspection
11. Can be good choice for uses requiring more toughness and abrasion resistance after cure

Certificates

Specification

item	SILICONE CONFORMAL COATING
CAS No.	67763-03-5
Other Names	silicone resin
MF	H4Si
EINECS No.	946-216-7
Place of Origin	China
	Jiangxi
Classification	Hot Melt Adhesives
Main Raw Material	Silicone
Usage	Transportation, automotive electronics
Brand Name	SAN CHEN
Model Number	SC-9277
Type	PCB COATING
Appearance	Translucent liquid
Solid Content,%	70±2
Viscosity ,25℃,CPs	800-1100
Hardness, shore D	≥22
/Special Gravity ,25℃,g/cm3	1.037
Volume Resistivity, Ω.cm	3.7X1015
Dielectric Constant,25℃ 100KHz	≤2.71
Dielectric Loss Factor ,25℃ 100KHz	≤2.8 X10-3
Adhesion	Cross Hatch Test
High temp. resistance	125℃/1000HOUR
