Quick Details
-
Brand Name:
-
YHX
-
Model Number:
-
SEN-FB43WA
-
Operating Temperature:
-
0~60℃
-
Certification:
-
consult the seller
Quick Details
-
Media Type:
-
water
-
Flow Rate:
-
1.8-2.5L/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YHX
-
Model Number:
-
SEN-FB43WA
-
Operating Temperature:
-
0~60℃
-
Certification:
-
consult the seller

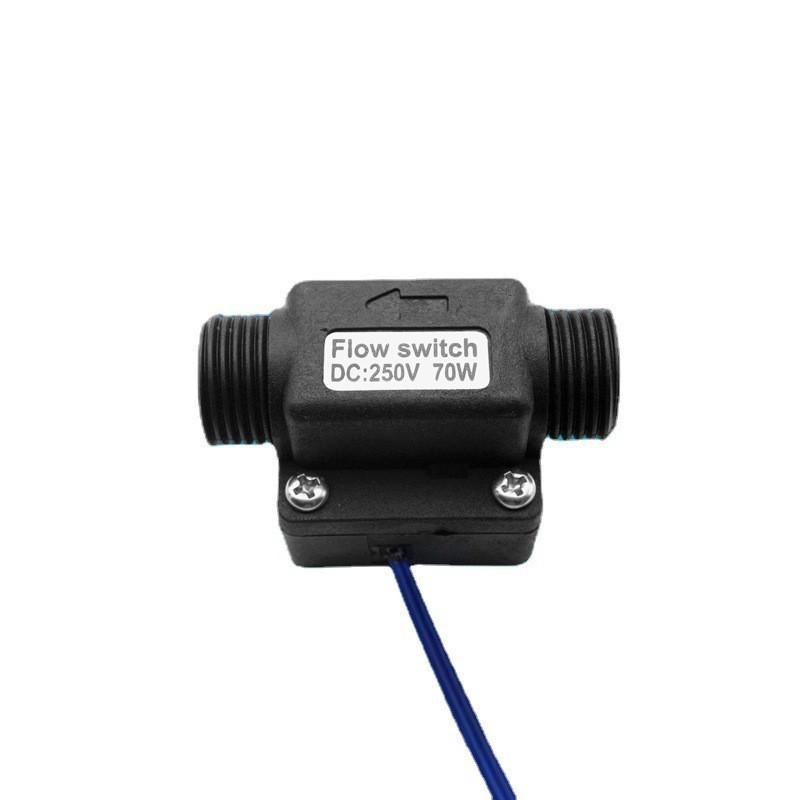

SEN-FB21WA Flip-type water flow switch, switch signal, nylon material (copper casting material available), there are two specifications of 4 points and 6 points to choose from
1. Water quality requirements: hygienic standard for drinking water, ≤60°C
2. Flow range: 3.5-20L/min
3. Water pressure resistance: 1.2MPa
4. Voltage and current: DC200V, ≤0.5mA
5. Switching power: 10W, normally open (NO)
6. Insulation resistance: 108Ω
7. Switch life: 108 times
8. Switch response time: 0.2ms;
9. Installation method: horizontal installation is recommended
10. Wire harness specifications and switching power (optional 70W) can be customized
11. Applied to mechanical equipment, instrumentation, water pump start, water heater, solar energy, etc.
