Quick Details
-
Design Printing:
-
No printing
-
Material:
-
ALUMINIUM FOIL
-
Feature:
-
Heat-Resistant
-
Use:
-
Carton Sealing
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEIYUAN
-
Model Number:
-
T-FG1801R
-
Product name:
-
T-FG1801R
-
Foil Thickness:
-
0.0014
Quick Details
-
Adhesive:
-
Acrylic
-
Adhesive Side:
-
Single Sided
-
Adhesive Type:
-
Pressure Sensitive, Water Activated, Hot Melt
-
Design Printing:
-
No printing
-
Material:
-
ALUMINIUM FOIL
-
Feature:
-
Heat-Resistant
-
Use:
-
Carton Sealing
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEIYUAN
-
Model Number:
-
T-FG1801R
-
Product name:
-
T-FG1801R
-
Foil Thickness:
-
0.0014
Description

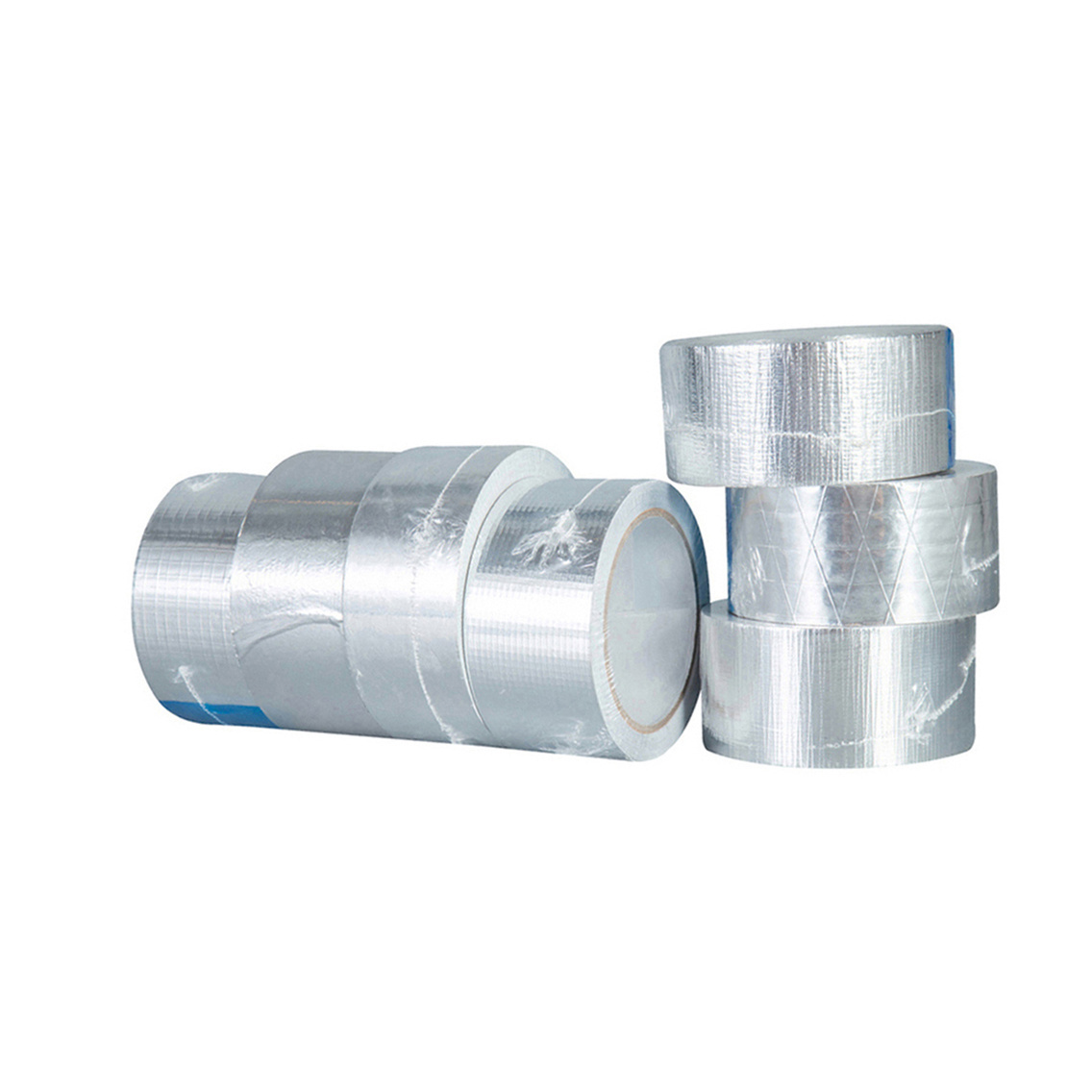

Meiyuan T-FG1801R Foil-Glass Cloth Tape is a foil-glass cloth backing (18u foil with an 8x8 mesh 95gsm glass cloth) with aggressive flame-retardant acrylic adhesive and protected by easy release liner.
Features
¨ High Tensile & Tear Strength ¨ UL 723 Approval & Permanent Bonding
¨ Match Foil-Glass Cloth Laminate ¨ Outstanding Temperature & Aging Resistance
Applications
I ndustrial FR grade f oil- g lass c loth t ape, UL 723 approval. Specially designed for industrial equipment and pipe as well as vessel engine room’s thermal Insulation.
Technical Data Sheet
|
Property |
Unit |
Value |
Test Method |
|
Backing Thickness |
Micron |
125 |
PSTC-33 / ASTM D3652 |
|
Peel Adhesion |
N/25mm |
18 |
PSTC-1 / ASTM D3330 |
|
Tack Rolling Ball |
cm |
20 |
PSTC-6 / ASTM D3121 |
|
Tensile Strength |
N/25mm |
250 |
PSTC-31 / ASTM D3759 |
|
Elongation |
% |
5.0 |
PSTC-31 / ASTM D3759 |
|
Fire Rating |
(25 / 50 & Class O) |
Passed |
UL 723 & BS476 Pt 6 & 7 |
|
Service Temperature |
° C |
- 3 0 ~ +120 |
---------- |
|
Applying Temperature |
° C |
+10 ~ +40 |
---------- |
Cut Roll: 48mm, 50mm (2"), 60mm, 63mm (2.5"), 72mm, 75mm (3"), 96mm, 100mm (4").
Jumbo Roll: 1200mm x 750M
