Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IY19E-03
-
IP level:
-
IP65
-
Product name:
-
Key Switch
-
Mounting Hole:
-
19mm
-
Head Type:
-
Flat head
-
Position:
-
3 position
-
Enclosure Material:
-
Metal
-
Contact Resistance:
-
50 mΩ max
-
Insulation Resistance:
-
1000MΩ Min
-
Dielectric Intensity:
-
2000VAC
-
Operating Temperature:
-
-20°C ~+55°C
-
Product type:
-
Key push button switch
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
0.5A
-
Max. Voltage:
-
48VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IY19E-03
-
IP level:
-
IP65
-
Product name:
-
Key Switch
-
Mounting Hole:
-
19mm
-
Head Type:
-
Flat head
-
Position:
-
3 position
-
Enclosure Material:
-
Metal
-
Contact Resistance:
-
50 mΩ max
-
Insulation Resistance:
-
1000MΩ Min
-
Dielectric Intensity:
-
2000VAC
-
Operating Temperature:
-
-20°C ~+55°C
-
Product type:
-
Key push button switch
Products Description

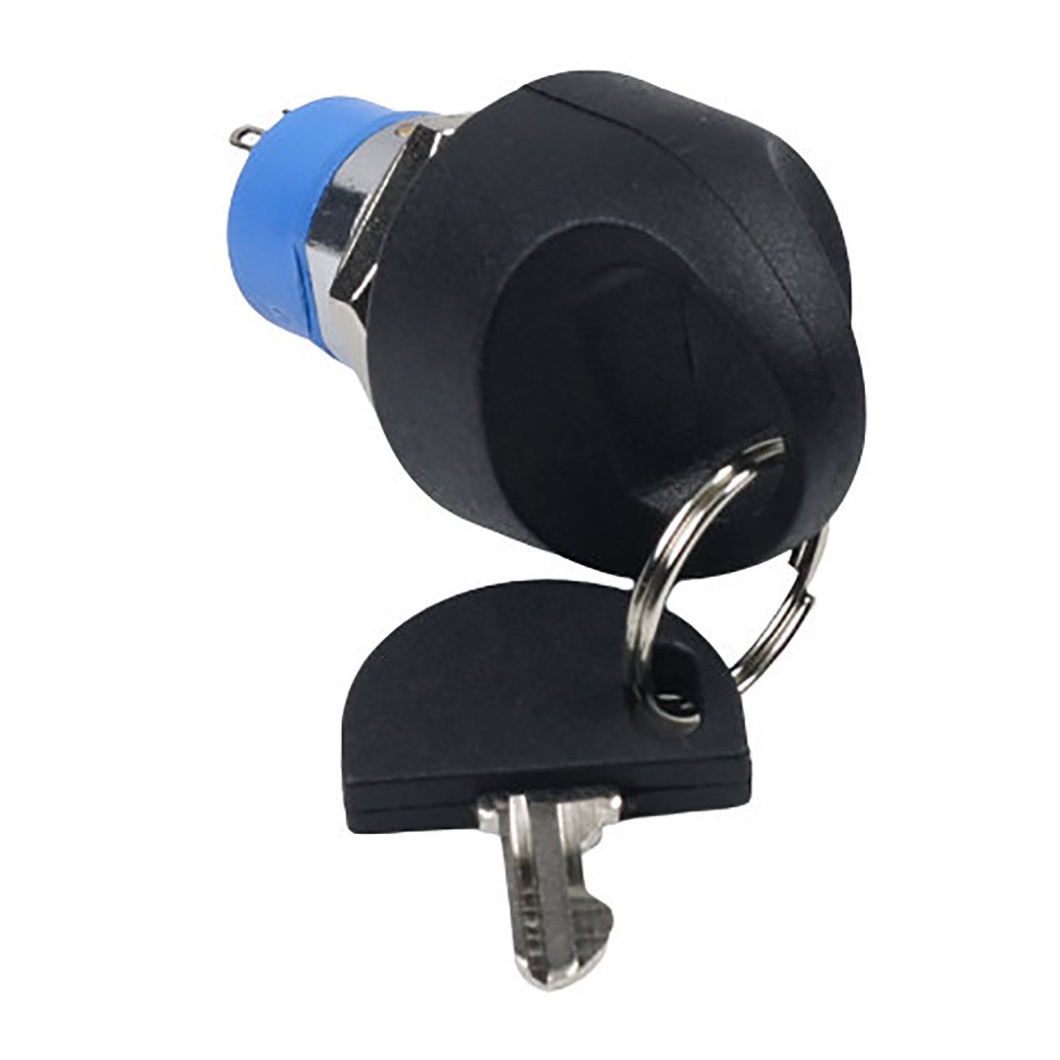

19mm Heavy Duty Key Operated Selector Switch, 3 Positions, Maintain Type Key Lock Switch
Features
:
The key and switch are identical and interchangeable with each other, one key can open all switch.
Small size, easy to carry.
Key operated rotary switch is made of high-quality plastic, flame retardant and high temperature resistant.
The housing and cylinder are zinc alloy die cast providing long lasting and heavy-duty materials that are designed not to wear down or break
Specification:
This key switch has a hole of 19mm.
Product Name: Switch lock
Terminals quantity : 2
Suitable for different industries cabinets, toolboxes, automation equipment.
The Wire Connector:
With the wire connector, you don't need to solder the terminals,
make installing very easy Saves the issue of soldering to the switch,
and possibly melting it as well You can replace the switch anytime by just unplugging the switch from its socket
Note:
-These switches come with a rubber O-ring which makes them splash resistant
but they can NOT be submerged underwater
-The project you are going to be used for, don't let current go above 5 amps.
Or the switch will get warm and to be burned out
Product Paramenters
Model Specification
|
|
|
Model NO.
|
Keylock switch
|
|
Model
|
IY19E-03
|
|
Mounting Hole
|
19mm
|
|
Position
|
3 position
|
|
Place of Origin
|
Zhejiang, China
|
|
Enclosure Material
|
Metal
|
|
Terminal typeDelivery Days
|
5-7 days
|
|
Contact Resistance
|
50 mΩ max
|
|
Insulation Resistance
|
1000MΩ Min
|
|
Dielectric Intensity
|
2000VAC
|
|
Operating Temperature
|
-20°C ~+55°C
|
|
Wire Soldering
|
Acceptable and with fast shipping
|
Installation Instructions
