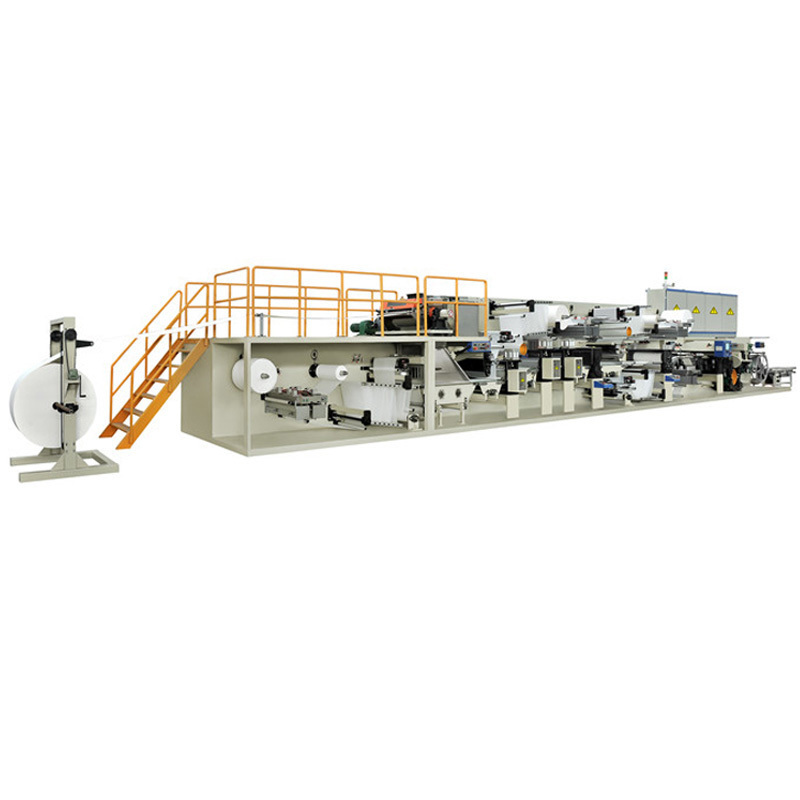

1. Underpad machine have three frequency motors control driving with PLC and touch screen;
2. High speed teeth-like crushes;
3. Web-wheel molding;
4. SAP auto adding with amount control;
5. Frequency unwinding,auto-tension control and auto spilicing for raw material;
6. Auto reject for wasted & rejected product,auto detect & alarm for material exhausted;
7. Phase adjusting during running without stop;
8. Product auto counting & output in line.
|
Specifications
|
|
|
|
Designed production speed
|
250 pieces/min
|
|
|
Stable production speed
|
200pieces/min(or as per customers designed)
|
|
|
Underpad width(min-max)
|
800-1200mm
|
|
|
Underpad length(min-max)
|
800-3000mm
|
|
|
Finished product rate
|
≥98%
|
|
|
Machine power
|
three-phase five-wire(380V, 50HZ)
|
|
|
Machine capacity
|
about 380KW(exclude hot melt applicators and air compressor)
|
|
|
Machine size
|
32m*22m*3.8m(L*W*H)
|
|
|
Equipment installation footprint size
|
40*8*5m(L*W*H)
|
|
|
Machine weight
|
about 30 Ttons(whole production line)
|
|
|
Air consumption
|
4000L/min
|
|
