The Heat Resistant Tape is made from premium material polyimide(PI) film with high performance silicone adhesive. It has excellent heat resistance and wide operating temperature range up to 500°F(260°C)
- Product Details
- {{item.text}}
Quick Details
-
Design Printing:
-
No printing
-
Material:
-
Polyimide
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Naikos
-
Model Number:
-
Naikos series for polyimide foil tape
-
Color:
-
Amber
-
Application:
-
PCB masking,3D printer masking
-
Sample:
-
Freely
-
Thickness:
-
0.06mm/0.08mm/0.085mm
-
Backing material:
-
Polyimide film + silicone adhesive
-
Electrical Strength:
-
5000~12000 Volts
-
Temperature Resistance(℃):
-
-20℃ ± 280℃
-
Width:
-
33/66
-
Length:
-
2~500
-
Storage Condition:
-
20℃,65%RH
Quick Details
-
Adhesive:
-
Silicone
-
Adhesive Side:
-
Single Sided
-
Adhesive Type:
-
Pressure Sensitive, Hot Melt
-
Design Printing:
-
No printing
-
Material:
-
Polyimide
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Naikos
-
Model Number:
-
Naikos series for polyimide foil tape
-
Color:
-
Amber
-
Application:
-
PCB masking,3D printer masking
-
Sample:
-
Freely
-
Thickness:
-
0.06mm/0.08mm/0.085mm
-
Backing material:
-
Polyimide film + silicone adhesive
-
Electrical Strength:
-
5000~12000 Volts
-
Temperature Resistance(℃):
-
-20℃ ± 280℃
-
Width:
-
33/66
-
Length:
-
2~500
-
Storage Condition:
-
20℃,65%RH
Products Description
heat resistant polyimide tape
Features
heat resistant polyimide tape
★
Width:custom slit
heat resistant polyimide tape
★

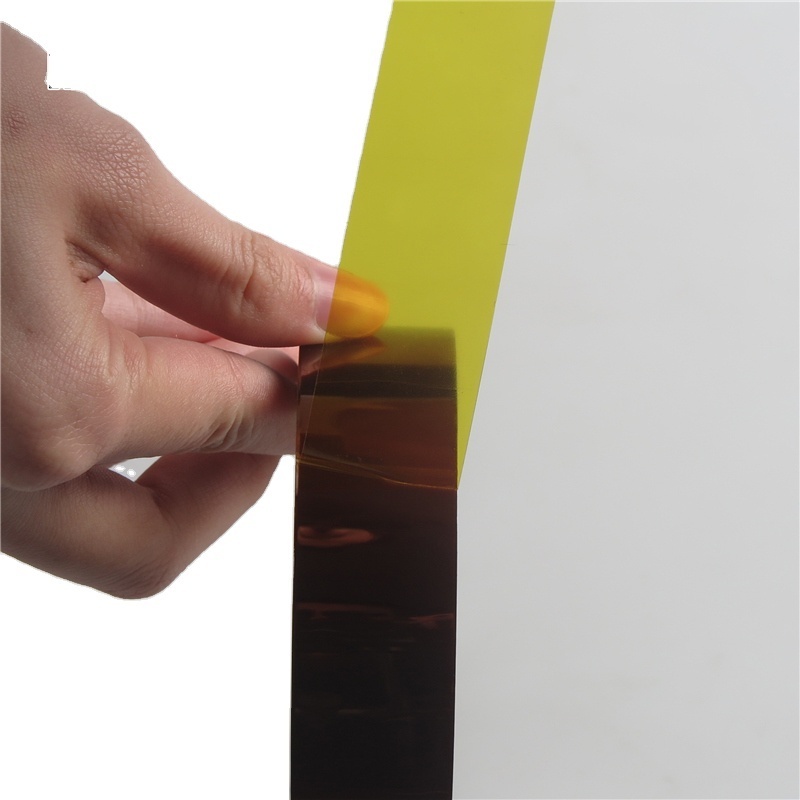

Peeled off without leaving an adhesive residue
heat resistant polyimide tape
★
High electrical strength
★ Class H insulation
★ Class H insulation
Application Ideas
heat resistant polyimide tape
heat resistant polyimide tape
Properties
|
Item
|
NKS-01
|
NKS-02
|
NKS-03
|
NKS-05
|
NKS-01E SD
|
||||
|
Color
|
Amber
|
|
|
|
|
||||
|
Carrier
|
Polyimide
|
|
|
|
|
||||
|
Adhesive
|
Silicone
|
|
|
|
|
||||
|
Carrier Thickness（mm）
|
0.025
|
0.05
|
0.075
|
0.0125
|
0.025
|
||||
|
Total Thickness (mm)
|
0.060
|
0.085
|
0.12
|
0.16
|
0.060
|
||||
|
Tensile Strength（N/25mm）
|
115
|
185
|
280
|
450
|
115
|
||||
|
Adhesion (N/25mm)
|
5.5
|
5.5
|
6
|
6
|
5.5
|
||||
|
Elongation at Break（％）
|
45
|
50
|
55
|
60
|
45
|
||||
|
Corrosion Resistance
|
1.0
|
1.0
|
1.0
|
1.0
|
1.0
|
||||
|
Heat Resistance（％）
|
250
|
250
|
250
|
250
|
250
|
||||
|
Electrical Strength（Volts）
|
5000
|
7000
|
9000
|
12000
|
5000
|
||||
|
Anti-static（Ω）
|
|
|
|
|
＜1*108
|
||||
|
Storage Condition
|
20℃,65％RH
|
|
|
|
|
||||
|
ROHS Certificate
|
Complied
|
|
|
|
|
||||
|
Specification
|
|
|
|
|
|
||||
|
Length（m）
|
33/66
|
|
|
|
|
||||
|
Width(mm)
|
2~500
|
|
|
|
|
||||
Note:
These values are measured values and not guaranteed value
heat resistant polyimide tape
Single Side:
Polyimide Film
Silicone Adhesive
heat resistant polyimide tape
Double Side:
Silicone Adhesive
Polyimide Film
Silicone Adhesive
Release Film
