Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
8225*3016*3515mm
-
Machine Weight:
-
17500 kg
-
Bucket capacity:
-
2.5~4.5M3
-
Wheel base:
-
3300mm
-
Reach at maximum lift:
-
1100~1220mm
-
Max.breakout force:
-
175±5kN
-
After Warranty Service1:
-
Video technical support
-
After Warranty Service2:
-
Online support
-
After Warranty Service3:
-
Spare parts
-
After Warranty Service4:
-
Field maintenance and repair service
-
Certification:
-
ISO/CE
Quick Details
-
Engine Brand:
-
WEICHAI
-
Power:
-
162kw
-
Brand Name:
-
XCMG
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
8225*3016*3515mm
-
Machine Weight:
-
17500 kg
-
Bucket capacity:
-
2.5~4.5M3
-
Wheel base:
-
3300mm
-
Reach at maximum lift:
-
1100~1220mm
-
Max.breakout force:
-
175±5kN
-
After Warranty Service1:
-
Video technical support
-
After Warranty Service2:
-
Online support
-
After Warranty Service3:
-
Spare parts
-
After Warranty Service4:
-
Field maintenance and repair service
-
Certification:
-
ISO/CE
Products Description

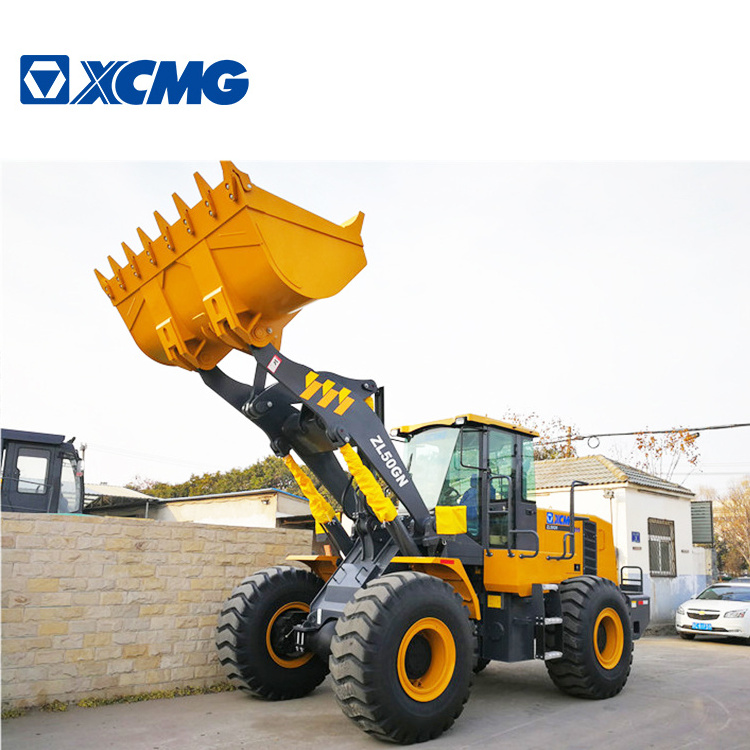

XCMG Official Bucket Front End Loader Zl50gn 5 Ton Wheel Loader Machine for Sale
ZL50GN wheel loader is the latest cross-generation product developed by XCMG on the basis of the globalized technologic resources.
Focusing on customer value and emphasizing customer experiences, XCMG loader is the first-choice equipment for the production organization in the fields of ports, engineering constructions, and logistics.
Model Characteristics:
1. XCMG's exclusive high torque and high efficiency drive chain features reasonable matching.
2. XCMG's characteristic super-heavy-load structure parts are free of redundant weight.
3. With extended wheelbase, the working capacity and stability are leading the industry.
4. The centering design of main hinge joints reduces the turning radius and lowers the tire wear and energy consumption.
5. The ergonomically design cab adopts integral skeleton structure, delicate interior trim parts, and sound insulation and noise reduction measure, featuring broad visual field, super-large space, and high operation comfort.
6. The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.
Performance Highlights:
1. The 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.
2. ≥7,500kg lifting capacity and 170kN breakout force handle all kinds of materials with ease.
Variety attached tools meeting requirements of different working conditions:
Side-dump bucket/ Clipping plier I (paired teeth)/ Clipping teeth II (staggered teeth)/ Toad's mouth clamp/ Port plier/ Grasping grass machine/ Snowplow/Pallet fork
1. XCMG's exclusive high torque and high efficiency drive chain features reasonable matching.
2. XCMG's characteristic super-heavy-load structure parts are free of redundant weight.
3. With extended wheelbase, the working capacity and stability are leading the industry.
4. The centering design of main hinge joints reduces the turning radius and lowers the tire wear and energy consumption.
5. The ergonomically design cab adopts integral skeleton structure, delicate interior trim parts, and sound insulation and noise reduction measure, featuring broad visual field, super-large space, and high operation comfort.
6. The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.
Performance Highlights:
1. The 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.
2. ≥7,500kg lifting capacity and 170kN breakout force handle all kinds of materials with ease.
Variety attached tools meeting requirements of different working conditions:
Side-dump bucket/ Clipping plier I (paired teeth)/ Clipping teeth II (staggered teeth)/ Toad's mouth clamp/ Port plier/ Grasping grass machine/ Snowplow/Pallet fork
Product Paramenters
|
Description
|
Unit
|
|
Parameter value
|
|
|
Rated operating load
|
kg
|
|
5000
|
|
|
Bucket capacity
|
m³
|
|
2.5~4.5
|
|
|
Machine weight
|
kg
|
|
17500±300
|
|
|
Dump clearance at maximum lift
|
mm
|
|
3100~3780
|
|
|
Reach at maximum lift
|
mm
|
|
1100~1220
|
|
|
Wheel base
|
mm
|
|
3300
|
|
|
Tread
|
mm
|
|
2250
|
|
|
Max.breakout force
|
kN
|
|
175±5
|
|
|
Max.horse power
|
kN
|
|
160±5
|
|
|
Hydraulic cycle time-raise
|
s
|
|
≤6
|
|
|
Total hydraulic cycle time
|
s
|
|
≤10.5
|
|
|
Min. turning radius over tyres
|
mm
|
|
5925±50
|
|
|
Articulation angle
|
°
|
|
38
|
|
|
Gradeability
|
°
|
|
30
|
|
|
Tyre size
|
|
|
23.5-25-16PR
|
|
|
Overall machine dimension L×W×H
|
mm
|
|
8225*3016*3515
|
|
|
Model
|
|
|
WD10G220E21
|
|
|
Rated Power
|
kW
|
|
162
|
|
|
Travel Speed
|
Ⅰ-gear(F/R)
|
km/h
|
13/17
|
|
|
|
Ⅱ-gear(F)
|
km/h
|
41
|
|
