Quick Details
-
Model Number:
-
JL-600-6H, JL-600-6H
-
Function:
-
Wire cut, double end peeling, middle peeling
-
Weight:
-
35kg
-
Feature:
-
Large square peeling
-
Keywords:
-
wire cut strip machine
-
Cutting length:
-
0.1mm~99999.9mm
-
Size:
-
420*297*345mm
-
Power:
-
120-220v
Quick Details
-
Use:
-
Stripping
-
Place of Origin:
-
Guangdong, China, Guangdong, China
-
Brand Name:
-
JULI, Juli
-
Model Number:
-
JL-600-6H, JL-600-6H
-
Function:
-
Wire cut, double end peeling, middle peeling
-
Weight:
-
35kg
-
Feature:
-
Large square peeling
-
Keywords:
-
wire cut strip machine
-
Cutting length:
-
0.1mm~99999.9mm
-
Size:
-
420*297*345mm
-
Power:
-
120-220v

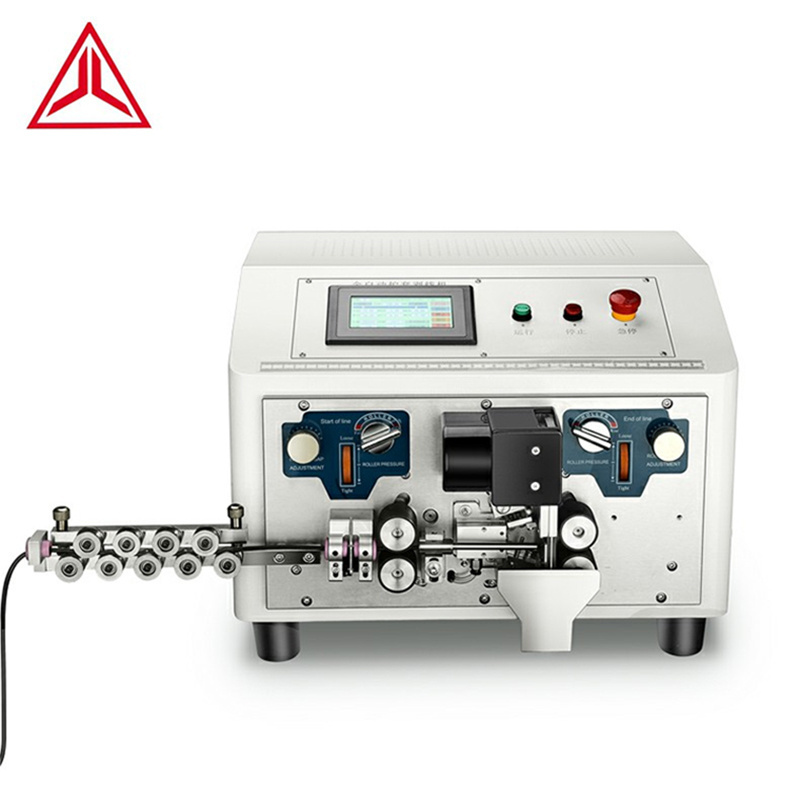

Fully Automatic computer cable wire cutting stripping machine USB data cable manufacturing machine
|
Machine description |
|
|
This machine is driven by a four-wheel stepper motor, mainly for 2 core/3 core/4 core soft sheathed wire, hard sheathed wire, Teflon sheathed wire copper sheathed wire, cable sheathed wire |
|
|
Machine parameters |
|
|
Product name/model |
Automatic computer sheath wire stripping machine JL-600-6H |
|
size |
470mm*450mm*350mm |
|
weight |
36.5KG |
|
power |
AC220V 50/60HZ 700W |
|
Stripping range |
Diameter 1mm-6mm |
|
Core wire processing range |
Two core/three core/four core |
|
Cutting length |
0.1-99999.9 |
|
Length of outer stripped wire |
Stripping head 0.1-70mm, stripping tail 0.1-70mm |
|
Core wire stripping length |
Stripping head 0.1-30mm, stripping tail 3-30mm |
|
Stripping accuracy |
Silent hybrid stepping motor 0.01mm |
|
Blade material |
Imports of tungsten steel / high speed steel |
|
Operation interface |
Full touch 4.3 inch LCD display |
|
Control system |
SCM self-developed motion control board |
|
Drive method |
Four-wheel stepper motor drive |
|
Program |
100 memory programs |
|
Production capacity |
100/500/1000mm (1300/1100/900pieces/hour) |
