Quick Details
-
Brand Name:
-
KXL
-
Filter Rating:
-
150 Micron, 150Micron
-
Thickness:
-
1mm 1.7mm, 1/1.7 mm
-
Length:
-
130
-
Width:
-
110
-
Product name:
-

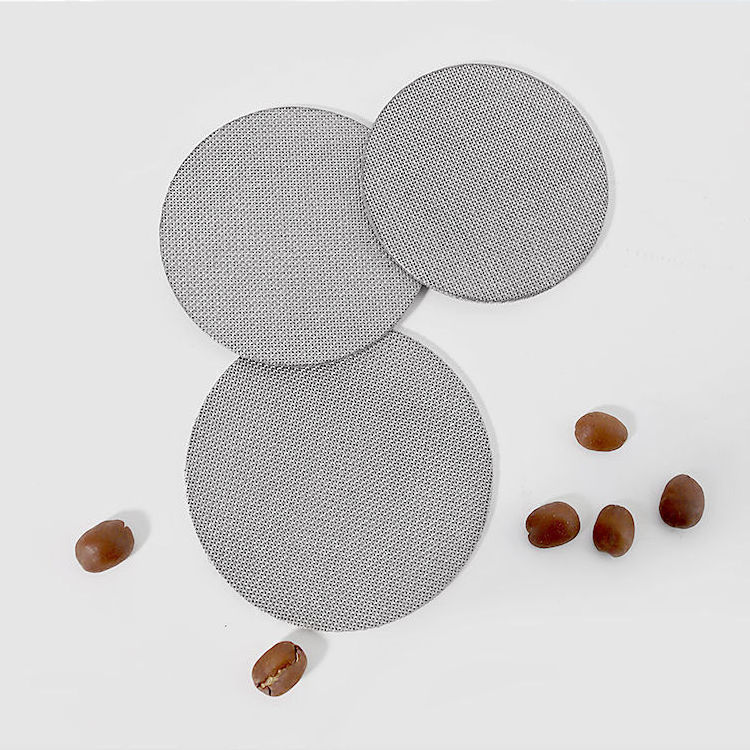

Stainless Steel Sintered Wire Mesh Filter
-
Filter Fineness:
-
150Micron
-
Numbers of Layers:
-
1-5Layers
-
Weave Style:
-
Plain Weave, Twill Weave, Dutch Weave
-
Diameter:
-
51 53 53.5 58 58.5
-
MOQ:
-
50 Pieces
Quick Details
-
Weight (KG):
-
1.6
-
Core Components:
-
sintered mesh
-
Place of Origin:
-
Anping
-
Brand Name:
-
KXL
-
Filter Rating:
-
150 Micron, 150Micron
-
Thickness:
-
1mm 1.7mm, 1/1.7 mm
-
Length:
-
130
-
Width:
-
110
-
Product name:
-
Stainless Steel Sintered Wire Mesh Filter
-
Filter Fineness:
-
150Micron
-
Numbers of Layers:
-
1-5Layers
-
Weave Style:
-
Plain Weave, Twill Weave, Dutch Weave
-
Diameter:
-
51 53 53.5 58 58.5
-
MOQ:
-
50 Pieces
Product Description
Stainless steel sintered mesh filter is a new type of filter material made of multi-layer metal woven wire mesh through lamination pressing and vacuum sintering. It has high mechanical strength and overall solid structure.
Single/Multiple Layer of Sintered Mesh
Customize
According to the number of layers, sintered mesh laminate can be divided into two series: single layer sintered mesh laminate and
multiple layers sintered mesh laminate.
|
Product name
|
Ultra fine 1 micron sintered metal filter/ Sintered woven wire mesh/Sintered mesh
|
|
|
|
||||
|
Micron size
|
0.2μm - 300 microns
|
|
|
|
||||
|
Feature
|
High temperature and corrosion resistance
|
|
|
|
||||
|
Layer
|
1-5 or as required
|
|
|
|
||||
|
Shape
|
Rectangle, square, round, oval, circular, cap, waist, and abnormity.
|
|
|
|
||||
|
Available materials
|
SS 304, 304L, 316, 316L, 904L, etc.
|
|
|
|
||||
|
Sample: Free samples
Application :Industry Filter Sieve .Used in distillation, absorption, evaporation and filtration process of rubber, plastic
industry, the screening of grain and oil,and other industries and air filter |
|
|
|
|
||||
Standard material for sintered wire mesh
Our standard material for sintered wire mesh is 316L stainless steel. For tougher and harsher working fluids and environments, higher grade alloys are available, such as 310S, 904L, 254 SMO, Monel 400, Inconel 600 625, Hastelloy C276, Hastelloy C22, Duplex Stainless Steel 2205 and 2507 etc.
Features of sintered wire mesh laiminates
Features of sintered wire mesh laiminates
The fixed and stable pore size makes the filtration more accurate, Higher temperature and pressure resistance Excellent corrosion resistance, Sturdy construction with its own support layer. Excellent cleanability for extended service life No risk of wire migration in case of wear or deformation
Specification
Specifications of 5-Layer Sintered Mesh Filter
The following table summarizes the specifications of
5-layer sintered mesh filter.
Packing & Delivery
Water-Proof Paper+ Wooden Case
