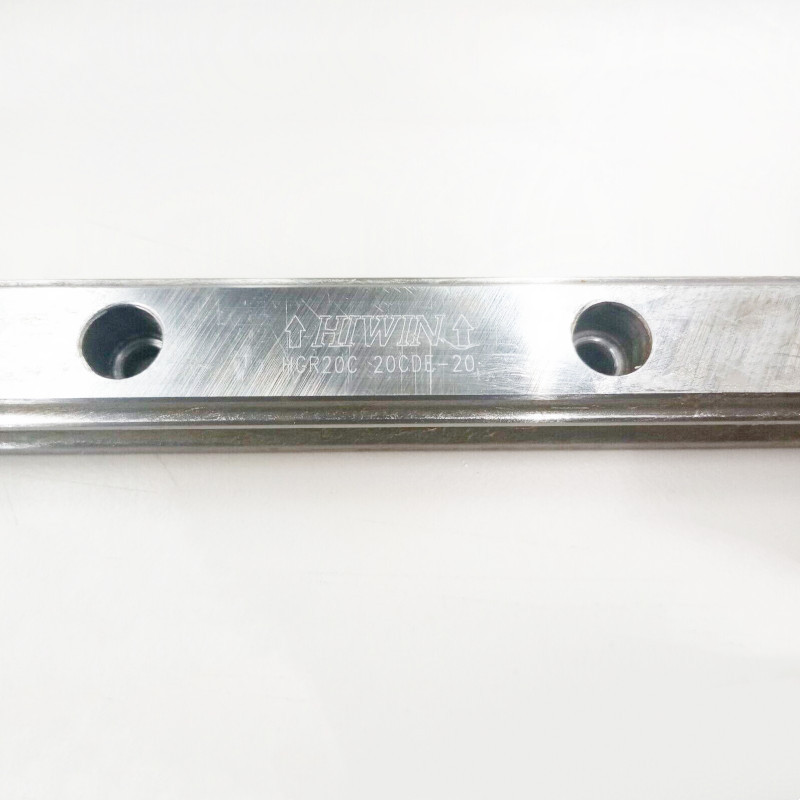

HIWIN Linear Rail 500mm 1000mm 1500mm HGR20 HGR20T Linear Guide

Description

A linear guideway allows a type of linear motion that utilizes rolling elements such as balls or rollers. By using recirculating rolling elements between the rail and the block, a linear guideway can achieve high precision linear motion. Compared to a traditional slide, the coefficient of friction for a linear guideway is only 1/50. Because of the restraint effect between the rails and the blocks, linear guideways can take up loads in both the up/down and the left/right directions. With these features, linear guideways can greatly enhance moving accuracy, especially, when accompanied with precise ball screws.

Structure and Features
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with
circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, HIWIN HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.

(1) Self-aligning capability
By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation.

(2) Interchangeability
Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.

(3) High rigidity in all four directions
Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.

Application

Machine Centers
CNC Lathes
Grinding Machines
Precision Machining Machines

Heavy Cutting Machines
Automation Devices
Transportation Equipment
Measuring Equipment
Devices Requiring High
Positional Accuracy

Relative Model

HGH15CA HGH20CA HGH25CA HGH30CA HGH35CA HGH45CA HGH55CA HGH65CA

HGL15CA HGL25CA HGL30CA HGL35CA HGL45CA HGL55CA

HGL25HA HGL30HA  HGL35HA  HGL45HA HGL55HA

HGW15CA HGW20CA HGW25CA HGW30CA HGW35CA HGW45CA HGW55CA HGW65CA

HGW15CC HGW20CC HGW25CC HGW30CC HGW35CC HGW45CC HGW55CC HGW65CC

HGW15CB HGW20CB HGW25CB HGW30CB HGW35CB HGW45CB HGW55CB HGW65CB

HGH20HA HGH25HA HGH30HA HGH35HA HGH45HA HGH55HA HGH65HA

HGW20HC HGW25HC HGW30HC HGW35HC HGW45HC HGW55HC HGW65HC

HGW20HA HGW25HA HGW30HA HGW35HA HGW45HA HGW55HA HGW65HA

HGW20HB HGW25HB HGW30HB HGW35HB HGW45HB HGW55HB HGW65HB

RGH25CA RGH30CA RGH35CA RGH45CA RGH55CA RGH65CA

RGW25CA RGW30CA RGW35CA RGW45CA RGW55CA RGW65CA

RGW25CC RGW30CC RGW35CC RGW45CC RGW55CC RGW65CC

RGW25CB RGW30CB RGW35CB RGW45CB RGW55CB RGW65CB

RGH25HA RGH30HA RGH35HA RGH45HA RGH55HA RGH65HA

RGW25HC RGW30HC RGW35HC RGW45HC RGW55HC RGW65HC

RGW25HA RGW30HA RGW35HA RGW45HA RGW55HA RGW65HA

RGW25HB RGW30HB RGW35HB RGW45HB RGW55HB RGW65HB

EGH15CA EGH20CA EGH25CA EGH30CA EGH15SA EGH20SA EGH25SA EGH30SA

EGW15CA EGW20CA EGW25CA EGW30CA EGW15SA EGW20SA EGW25SA EGW30SA

MGN7C MGN9C MGN12C MGN15C MGN7H MGN9H MGN12H MGN15H

MGW7C MGW9C MGW12C MGW15C MGW7H MGW9H MGW12H MGW15H
