Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Marking Head Brand:
-
SINO
-
Weight (KG):
-
70 KG
-
Machinery Test Report:
-
Provided CE Cerport
-
Product name:
-
Fiber Laser Marking Machine
-
Polarization:
-
Random
-
Central Emission Wavelength:
-
1060-1070 Nm
-
Emission Bandwidth (Fwhm):
-
<10 Nm
-
Pulse Width, (Fwhm):
-
100 Ns
-
Operating Voltage:
-
220V
-
Control Units:
-
Laser Mark (English Version)
-
Marking Speed:
-
0-8000mm/s
-
Beam Quality, M2:
-
<1.4 or <1.8
-
Spot Size:
-
≤ 40 Micron (F-Theta 160)
Quick Details
-
Working Accuracy:
-
0.002
-
Graphic Format Supported:
-
AI, PLT, DXF, Dwg, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Marking Head Brand:
-
SINO
-
Weight (KG):
-
70 KG
-
Machinery Test Report:
-
Provided CE Cerport
-
Product name:
-
Fiber Laser Marking Machine
-
Polarization:
-
Random
-
Central Emission Wavelength:
-
1060-1070 Nm
-
Emission Bandwidth (Fwhm):
-
<10 Nm
-
Pulse Width, (Fwhm):
-
100 Ns
-
Operating Voltage:
-
220V
-
Control Units:
-
Laser Mark (English Version)
-
Marking Speed:
-
0-8000mm/s
-
Beam Quality, M2:
-
<1.4 or <1.8
-
Spot Size:
-
≤ 40 Micron (F-Theta 160)
bottle engraving machine laser/aluminum rotary laser engraving machine /stainless steel pencil laser engraving machine
(Model:
PEDB-100A /
PEDB-400B / PEDB-400D)
Contact: Jessica Wechat: perfectlaser15 Email: Jessica(@)perfectlaser.net
Product Description
Perfect Laser is a prestigious manufacturer of fiber laser marking machines . We have many different models and specifications of laser marking machines, such as desktop, standing, mini, hand-held, color laser marking machines and so on. The fiber laser marking machine adopts high-quality fiber laser and ultra-high-speed scanning galvanometer system.The fiber laser marking machine has high electromechanical and optical conversion efficiency.The laser marker adopts air cooling, the whole machine is small in size, the output beam quality is good, the marking accuracy is high, the service life is up to 100,000 hours, and it is maintenance-free.
Samples
This laser marking machine is mainly applied to the higher marking precision such as mobile phones buttons, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

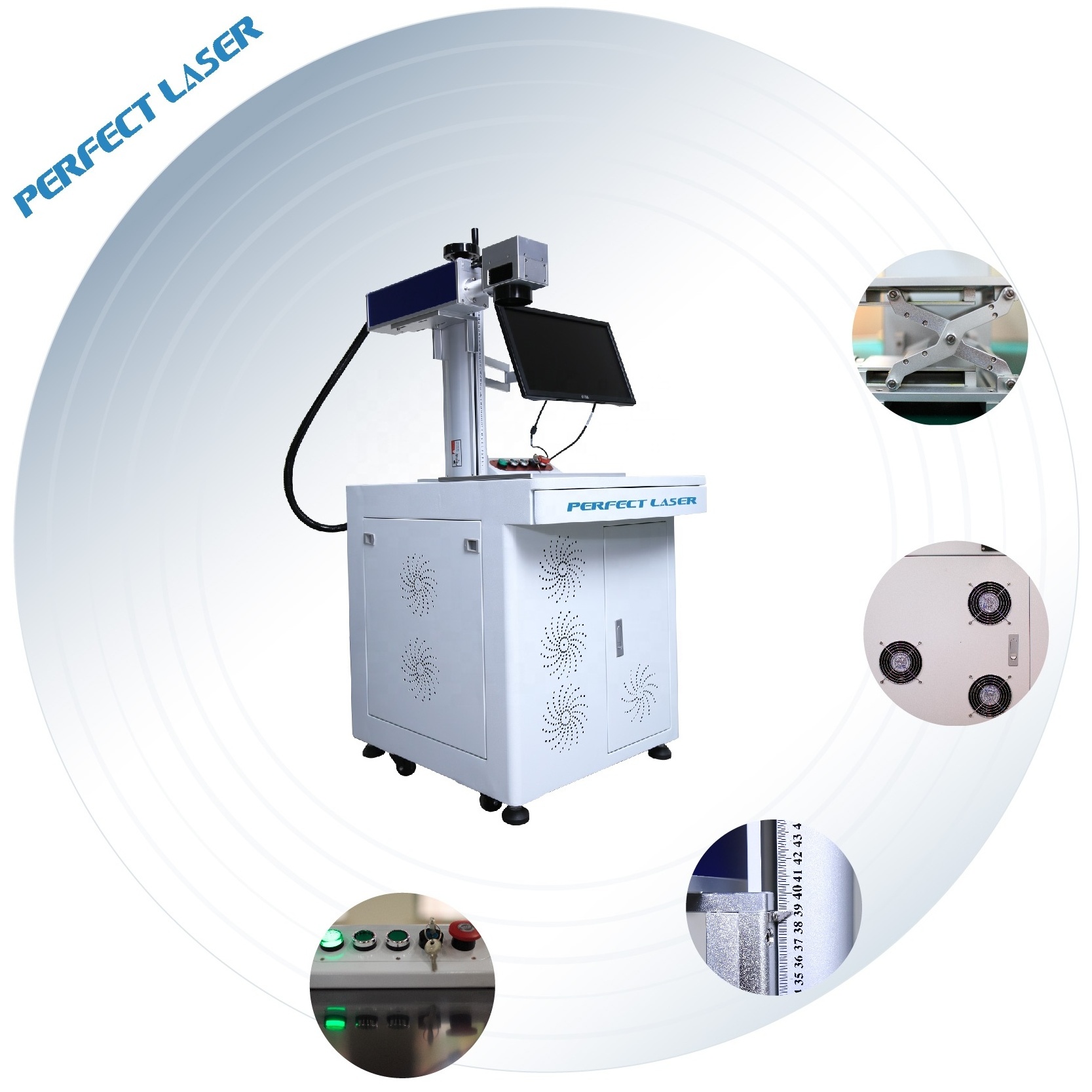

Machine Details
>>>>> Main Features
1. High efficiency: The marking speed is up to 8000m/s, and the speed is fast. When used with a conveyor belt, it can achieve efficient flow production.
2. Low cost: Compared with traditional ink jet coding, it has high electro-optical conversion rate, no consumables, no wearing parts, maintenance-free, non-toxic, non-polluting, and saves processing costs.
3. Long service life: The imported laser ensures faster marking speed and marking consistency, 24-hour continuous and stable processing, and maintenance-free time of 100,000 hours.
4. Easy to operate: The man-machine dialogue interface is friendly, the marking process and effects are controllable and visible, and the operation is simple and easy to use, eliminating the trouble of frequent changes of operators.
5.Permanent marking: serial number (barcode, serial number, batch number, date) can be automatically generated, which is used to realize product marking for identification, mass production and easy traceability. Smuggling effect.
Technical Data
|
Model No
|
PEDB-100A
|
PEDB-400B
|
PEDB-400D
|
||
|
Type
|
Small/Mini
|
Desktop
|
Standby
|
||
|
Computer
|
Not Includes Pc
|
|
Includes Pc
|
||
|
Laser Source
|
MAX/RAYCUS/IPG
|
|
|
||
|
Mode Of Operation
|
Pulsed
|
|
|
||
|
Polarization
|
Random
|
|
|
||
|
Central Emission Wavelength
|
1060-1070 Nm ,Q-Switched Operation Output Power Adjustment Range 10%-100%
|
|
|
||
|
Emission Bandwidth
(Fwhm) |
<10 Nm
|
|
|
||
|
Long-Term Average Power Instability
|
<5%
|
|
|
||
|
Pulse Width, (Fwhm)
|
100 Ns
|
|
|
||
|
Laser Switching On Time
|
180 Μsec
|
|
|
||
|
Laser Switching Off Time
|
180 Μsec
|
|
|
||
|
Energy Per Pulse (Prr = 20 Khz)
|
0.95 MJ
|
|
|
||
|
Beam Quality, M2
|
<1.4
|
<1.8
|
|
||
|
Output Fiber Delivery Length
|
3m
|
|
|
||
|
Operating Voltage
|
220V
|
|
|
||
|
Max. Power Consumption
|
160W
|
600W
|
|
||
|
Marking Speed
|
0-8000mm/s
|
|
|
||
|
Marking Size
|
110mm×110mm (F-Theta 160)
|
|
|
||
|
Spot Size
|
≤ 40 Micron (F-Theta 160)
|
|
|
||
|
Cooling Method
|
Air Cooled
|
|
|
||
|
Pilot Laser
|
650nm Diode Laser, Visible Red Light For Marking Guide
|
|
|
||
|
Humidity
|
8～95%
|
45～85% (No Condensation)
|
|
||
|
Operating Temperature
|
0~60℃
|
0~40℃
|
|
||
|
Control Units
|
Laser Mark (English Version)
|
|
|
||
Related Product
Packing & Delivery
Our service
Our Company
We, Perfect Laser, As a 21 years history industrial equipment manufacture in laser field, 13 year Golden Supplier in Alibaba, with CE/ISO, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
