Quick Details
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated-need CPU support
-
Chipset:
-
Celeron 6305
-
FSB / HT:
-
2.0GHz
-
Brand Name:
-
Fodenn
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-

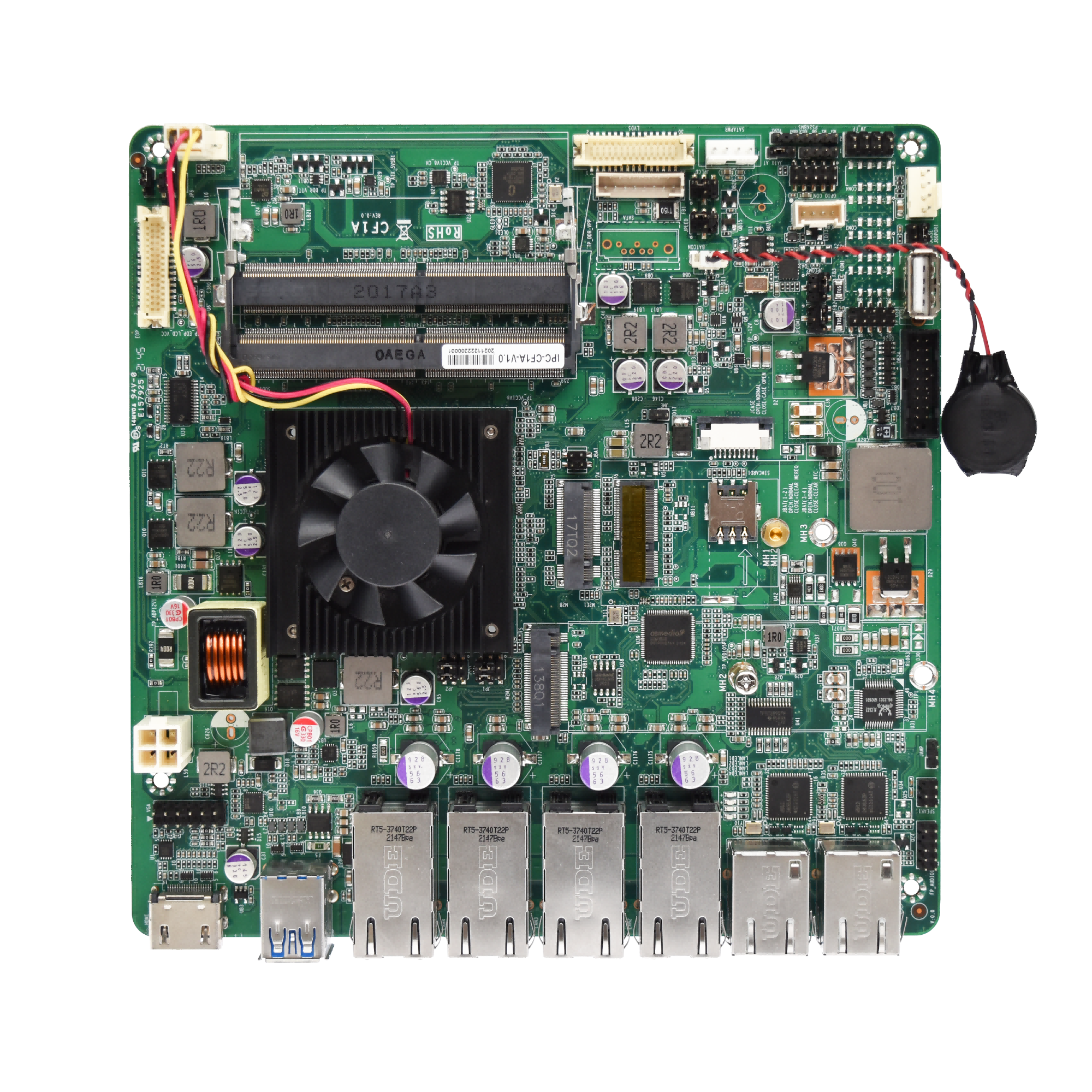

6*RJ45 Low Power MINI-ITX Embedded Industrial Motherboard
-
CPU:
-
Celeron 6305
-
System Memory:
-
2*SO-DIMM For DDR4 2400MHz,MAX 64GB
-
Storage:
-
1*M.2 Socket (2242/2280, SATA/NVMe, Jumper,Default NVMe ) 1*SATAIII
-
Network:
-
4*Intel I211AT(PoE PS)+ 2*Intel I211AT GIGALAN
-
Operating System:
-
WIN10/WIN11
-
LAN:
-
6*RJ45
-
COM:
-
4COM(COM1-2 suppoert RS422/RS485)
-
USB:
-
1*USB3.0,2*USB3.0,4*USB2.0
-
Dimension:
-
170*170MM
Quick Details
-
Maximum Ram Capacity:
-
64 GB
-
Application:
-
Industrial
-
Form Factor:
-
X86
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated-need CPU support
-
Chipset:
-
Celeron 6305
-
FSB / HT:
-
2.0GHz
-
Brand Name:
-
Fodenn
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
6*RJ45 Low Power MINI-ITX Embedded Industrial Motherboard
-
CPU:
-
Celeron 6305
-
System Memory:
-
2*SO-DIMM For DDR4 2400MHz,MAX 64GB
-
Storage:
-
1*M.2 Socket (2242/2280, SATA/NVMe, Jumper,Default NVMe ) 1*SATAIII
-
Network:
-
4*Intel I211AT(PoE PS)+ 2*Intel I211AT GIGALAN
-
Operating System:
-
WIN10/WIN11
-
LAN:
-
6*RJ45
-
COM:
-
4COM(COM1-2 suppoert RS422/RS485)
-
USB:
-
1*USB3.0,2*USB3.0,4*USB2.0
-
Dimension:
-
170*170MM
Features
Features
1.Low power consumption 15W, support 11th generation Tiger Lake-U platform, all Celeron, Pentium, Core series CPU2.Wide power supply Support PoE power supply3.Support CAN OPEN Support 2 RS4854.Support 16BIT GPIO Support I2C direct screen connection5.Dual memory slots can support dual channel
Application
Application
1.4 PoE can be directly linked to industrial cameras applications in the field of machine vision, serial port and USB port can simultaneously support peripheral applications, CAN port can support motion control.2.6 NICs can be applied to gateway, net gap applications.3.Support LVDS +EDP+I2C, can directly drive the screen, special USB TP interface is applicable to industrial panel PC.
Specification
Specification
| IPC-TGL6L Industrial Motherboard | ||
| System | CPU | Intel Core 11th gen Tiger Lake U-series/Pentium/Celeron |
| RAM | DDR4 2133--3200MHz ,2*SO-DIMM up to 64G | |
| BIOS | AMI UEFI | |
| Graphics | Intel® HD Graphics | |
| OS Support | WIN10/11, LINUX,UNIX | |
| Watchdog | 256 levels, programmable 0-255 sec/min | |
| TPM | Depends on CPU model, support TPM | |
| Rear I/O | LAN | 4*Intel I226LM(PoE PS)+ 2*Intel I226LM Gigbite LAN |
| Display | HDMI/LVDs/eDP synchronous/asynchronous display | |
| USB | 2*USB3.0 | |
| Internal I/O | Expansion port |
1* M.2 (B key 3042/3052 for 4G/5G)
1* M.2 (E key 2230 PCI-E,USB2.0) |
| Audio | Front_FP(support ALC888S/ALC897/ALC662)+ build-in SPK | |
| COM | 4*COM(COM1/2 support RS422/485) | |
| USB | 1*USB3.0, 4*USB2.0 | |
| Storage | 1*SATA3.0, 1*M.2 M key NVME 22110 | |
| GPIO | 8bits digital I/O | |
| SIM card | Onboard SIM card slot | |
| CAN | 1*CAN | |
| I2C | Support SMbus/ I2C | |
| Power | Power Input | DCin |
| Input Voltage | 9~36V wide voltage | |
| Structure | Dimension | Mini ITX,170X170MM |
| Environment | Operating Environment | 0°C~60°C,0~95%RH, non-condensing |
| Storage Environment | -40°C~85°C,0~95%RH, non-condensing | |
| Certificate | Safety Certification | CE |
| Parts List | I/O bezel,DB9 COM cable,USB cable | |
