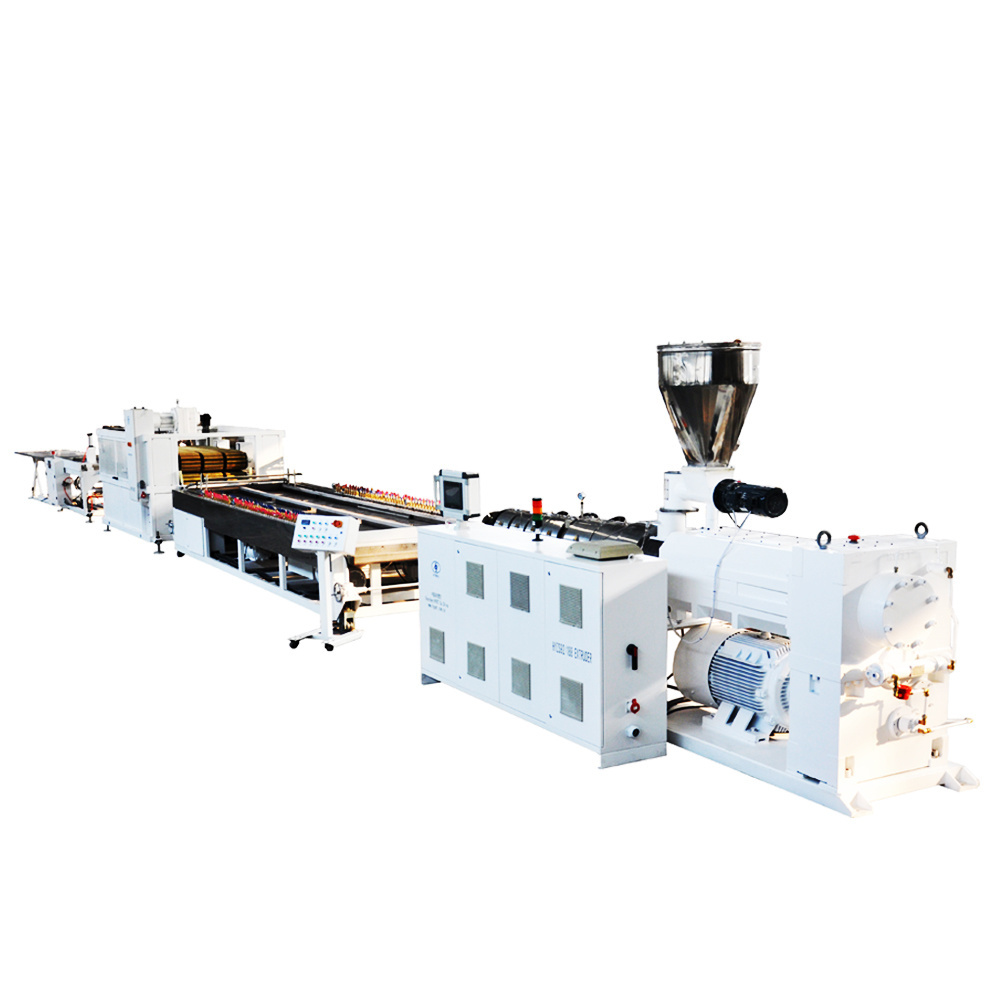

WPC door production line/PVC wood plastic composite door panel making machine /WPC profile extrusion
WPC door production line/PVC wood plastic composite door panel making machine /WPC profile extrusion
WPC door production line/PVC wood plastic composite door panel making machine /WPC profile extrusion
WPC door production line/PVC wood plastic composite door panel making machine /WPC profile extrusion
WPC door production line/PVC wood plastic composite door panel making machine /WPC profile extrusion
WPC door production line/PVC wood plastic composite door panel making machine /WPC profile extrusion
WPC door production line/PVC wood plastic composite door panel making machine /WPC profile extrusion
WPC door production line/PVC wood plastic composite door panel making machine /WPC profile extrusion

WPC door production line/PVC wood plastic composite door panel making machine /WPC profile extrusion

FOB Reference Price: Get Latest Price
≥1 Sets
US $30370
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Hubei, China
Brand Name:
HYMAX
Voltage:
380V 50Hz 3Phase or customized
Weight:
15000 KG
Keywords:
WPC door production line
Final product:
Door panel
Cavities:
Single/double/four
Extruder model:
ZS45/51/55/65/80/92
Extruder type:
Conic twin screw extruder
Control system:
PLC with touch screen
Motor/Inverter:
Siemens/ABB/China top brand
Processing material:
PVC Composite powder
Certification:
ISO9001, CE
Engineer installation service:
Yes

Quick Details

Screw Design:
Double-screw
Screw L/D Ratio:
28:1
Screw Speed (rpm):
48 rpm
Place of Origin:
Hubei, China
Brand Name:
HYMAX
Voltage:
380V 50Hz 3Phase or customized
Weight:
15000 KG
Keywords:
WPC door production line
Final product:
Door panel
Cavities:
Single/double/four
Extruder model:
ZS45/51/55/65/80/92
Extruder type:
Conic twin screw extruder
Control system:
PLC with touch screen
Motor/Inverter:
Siemens/ABB/China top brand
Processing material:
PVC Composite powder
Certification:
ISO9001, CE
Engineer installation service:
Yes
Product Description
PVC-WPC DOOR  PRODUCTION LINE
1. High output: Ensure you the highest output as compared with other supplier.
2. New technology gear box: High torque gear box, one body design, two cooling system.
3. Screw and barrel: Bi-metal material ensure longer working life, ensuring running non-stop 24 hours /day.
4. Energy saving heater: Heater on the barrel is energy saving type by 15%.
5. Electric elements and box: In detachable, with world famous brand such ABB, Siemens, Schneider, Delta, well organized.
6. HYPET PLC control system: With operation easy, management full, energy saving and counting, and intelligent control system.
7. Pipe brighten device: To make the pipe shining and smoothing.
8. Vacuum tank stainless steel 304: Water level and temperature controlled automatically.

Conic Twin Screw Extruders

H igh output / H igh torque / H igh quality

Self owned gear box patent
Self designed screw
Dual cooling system
Anti blocking feeder
Super size touch screen
Energy saving heaters
Low noisy blower
Top brand inverter
Strong motor

Twin conic screw extruder series
Item
35/80
45/100
51/110
55/120
65/132
80/156
80/173
92/188
Main motor
7.5
15
18.5
30
37
45
55
75
110
Output
75
120
140
250
350
450
550
650
950
Vacuum pump
1.1kw
1.5kw
1.5kw
1.5kw
2.2kw
2.2kw
3kw
3kw
4kw
Price USD
11500
13500
14500
16300
17500
18500
27500
3300
43500

Operating Screen

Super size operating screen to keep operation easily and well

Control system

Top brand Siemens PLC control sytem as operating heart

Heaters & blowers

Energy saving type heaters and low noisy blowers

Feeder

Special anti blocking design

Frequency inverter

ABB or Heavy type Delta

Gear box

Own patent with two cooling
MOLDS
The pressure class and standard will be made according to the requirement.
Materials of construction, alloy steel with flow path hard chrome plated.
The flow path are milled and are highly polished.
Better material and design for longer time running and better surface.

SHAPING TABLE
Vacuum Calibrator is with integrated leg & platform. Screen water filter with bypass system, solenoid valve at entry & exit, float switch. Visual inspection window is provided at the entry of the tank. Height adjustment on wheels & Motorized longitudinal movement & manual cross adjustment.


HAUL OFF MACHINE

Consists of top and bottom support which houses chain driven jaws with V- rubber profile. Bottom support is fixed one and top support is pneumatically operated by two sets of cylinders on either side. Independent special characteristic Vector AC strong Geared motor for each traction.


CUTTER

Dustless cutter to save the material and Environmental protection Cut neatly bright No noise and energy saving. Cast aluminum blocks for Clamping pipe Carriage made of Aluminum is mounted on hardened and hard chrome plated guide bar with linear motion bearings.
STACKER
The tripping chute is made from MS rigid structural steel
Stainless Flat type Tilting table provided for smooth scratch less pipe moment.
Tilting table is Pneumatically operated
2 Nos. Limit switches with adjustable bracket provided to cut various pipe length

WPC door processing flow

1. Wood powder making
Nature wood--Crush into scrap--Mill to powder--Drying
2. Raw material mixing
All material (PVC, CaCo3, Wooden powder and chemical agents) Mixing and stock in material dryer
3. Panel Production
Make the big door panel in mold width and request length.
4. Precise cutting
Cutting the door in exactly request size
5. Polishing
Brush the surface to smooth.
6. CNC design
Carve different pattern on the door panel surface
7. Hot-stamp & Lamination & Painting
Three way to handle the panel surface for option. hot-stamping & Lamination &Painting.
8. Top & Bottom carving and seal
Carving a round hole and seal it with our suitable strip.
9. Packaging.
Package and ready for delivery.
Cooperative brands
Auxiliary machine for option

Puliverizer

Recycled scraps into powder

Mixer

Mixing PVC, filler, chemical agent

Crusher

Recycle the bad final product into scrap

Precise cutter

Cutting the door edge

Polishing machine

Brushing the door surface

Hotstamping machine

Door surface pattern film

CNC machine

Door pattern design

Door sealing machine

Sealing the top and bottom of door

Lamination machine

Door surface lamination

Wooden crusher

Recycle nature wood to scrap

Wooden miller

Making wood powder from scrap

Wooden dryer

Drying the wet wood powder

Shredder

Recycle big pipe into small pieces

Chiller

Produce cooling water

Air compressor

Produce pressed air
Series Lines & Data
No.
Profile range
Extruders
Main Motor
Output
1
110
55/120
30
80-130
2
240
65-132
37
150-250
3
1000
92-188
110
350-450
Profile & Sheet production ine series
Final product
Width
Output
Extruder
Motor
Calibrator
Price
PVC window and door profile
240
350
ZS65/132
45kw
8m
39010
PVC window and door profile
180
160
ZS55/120
30kw
6m
33430
PVC window and door profile
110
120
ZS51/110
22kw
6m
28570
PVC  door panel
1200
550
ZS80/173
75kw
8m
69000
PVC-WPC door
1000
600
ZS92/188
110kw
8m
83980
PVC-WPC door frame
240
250
ZS65/132
37kw
8m
37040
PVC-WPC door cover
120
160
ZS51/110
22kw
8m
28570
