Quick Details
-
Model Number:
-
YKD100B
-
Item name:
-
Digital Vacuum pressure gauge meter digital manometer
-
accuracy:
-
0.05%,0.1%0.2%
-
Material:
-
Stainless Steel Case
-
Pressure range:
-
-0.1-0Mpa
-
Connection:
-
M20*1.5 or customer
-
Mounting:
-
Radial Direction Mounting
-
Others::
-
rs 232 ,rs485,usb output
-
Medium temperature::
-
-40 °C ~ 90 °C
-
Power supply::
-
3.6V high-energy lithium battery life 2-3 years or rechargeable
-
Pressure unit::
-
mmH2O mmHg psi kPa MPa Pa mbar bar pressure up to ten units (optional)
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Yunyi
-
Model Number:
-
YKD100B
-
Item name:
-
Digital Vacuum pressure gauge meter digital manometer
-
accuracy:
-
0.05%,0.1%0.2%
-
Material:
-
Stainless Steel Case
-
Pressure range:
-
-0.1-0Mpa
-
Connection:
-
M20*1.5 or customer
-
Mounting:
-
Radial Direction Mounting
-
Others::
-
rs 232 ,rs485,usb output
-
Medium temperature::
-
-40 °C ~ 90 °C
-
Power supply::
-
3.6V high-energy lithium battery life 2-3 years or rechargeable
-
Pressure unit::
-
mmH2O mmHg psi kPa MPa Pa mbar bar pressure up to ten units (optional)

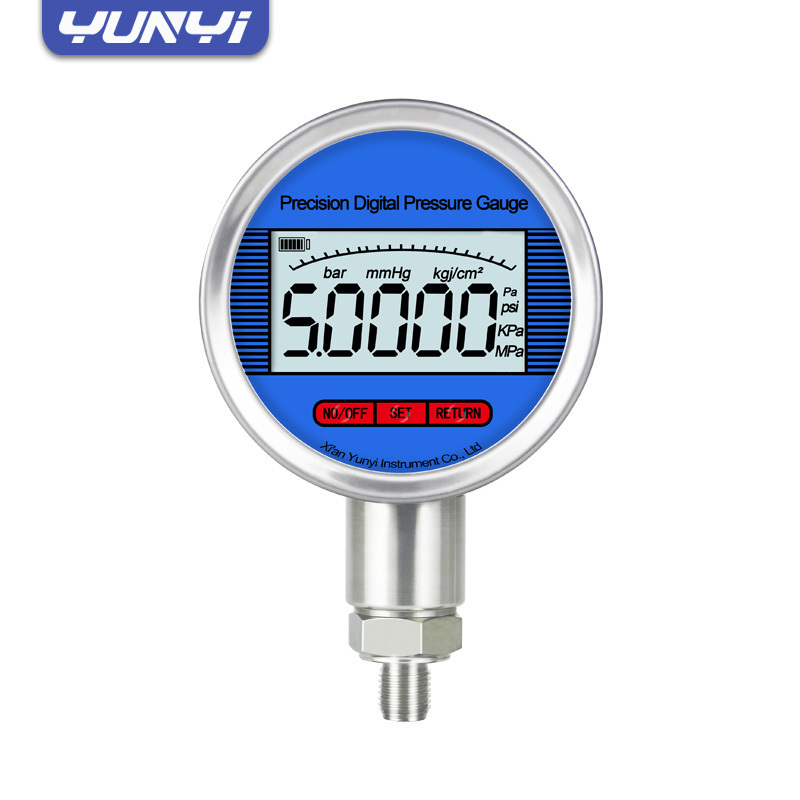

Description Digital Vacuum pressure gauge manometer
YK-100 digital pressure gauge imported sensor, superior performance, high accuracy, corrosion resistance, impact resistance,anti-vibration, high stability, etc.; signal processing circuitry using the latest ultra-low-power processors,signal processing and power management chip chips, using a large capacity,high performance lithium battery-powered, no external power supply. percentage using the digital display and analog display, intuitive readings, the product precision can reach 0.05 for ordinary pressure gauge, precision pressure gauge and pressure transmitter calibration and test, instead of themore traditional mechanical pointer pressure table-site measuring pressure.
|
Scale Range
|
-0.1~0~250MPa
|
Accuracy
|
0.4%, 0.2%,
|
|
|
Overload capacity
|
200%
|
Pressure Type
|
Vacuum,Gauge,Absolute Pressure
|
|
|
Stability
|
≤0.1%/year
|
Battery voltage
|
High energy 3.7v lithium battery
|
|
|
Display
|
LCD,5characters
|
Display range
|
-19999~99999
|
|
|
Ambient temperature
|
-20°C~70°C
|
Relative humidity
|
≤80%
|
|
|
Connection size
|
M20x1.5 Male or oem
|
Pressure unit
|
MPa,Kpa,PSI,mmHg,mHg,Bar,kgf/cm2,Pa
|
|
|
Case material
|
SS
|
Medium temp
|
-10~80°C
|
|
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What''s delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What''s your warranty terms?
A: We offer 12 months warranty time.
Q:Can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
