Quick Details
-
After-sales Service:
-
Call Center and on-line Technical Support
-
Screen Size:
-
17", 17 inch
-
Weight:
-
according to the size
-
Brand Name:
-
Hengstar or customized
-
Place of Origin:
-
Guangdong, China
-
Memory Capacity:
-
≥ 4GB, 4GB
-
Type:
-
MID, Other
-
Type1:
-
UMPC
-
Application:
-
wall mount / pedestal mount
-
Response Time:
-
8ms
-
Brightness:
-
380 cd/m2
-
Contrast ration:
-
1000:1
-
Packing details:
-
Standard Carton
Quick Details
-
Display Ratio:
-
5:4
-
Plugs Type:
-
US / others
-
Panel Type:
-
IPS, TFT
-
After-sales Service:
-
Call Center and on-line Technical Support
-
Screen Size:
-
17", 17 inch
-
Weight:
-
according to the size
-
Brand Name:
-
Hengstar or customized
-
Place of Origin:
-
Guangdong, China
-
Memory Capacity:
-
≥ 4GB, 4GB
-
Type:
-
MID, Other
-
Type1:
-
UMPC
-
Application:
-
wall mount / pedestal mount
-
Response Time:
-
8ms
-
Brightness:
-
380 cd/m2
-
Contrast ration:
-
1000:1
-
Packing details:
-
Standard Carton

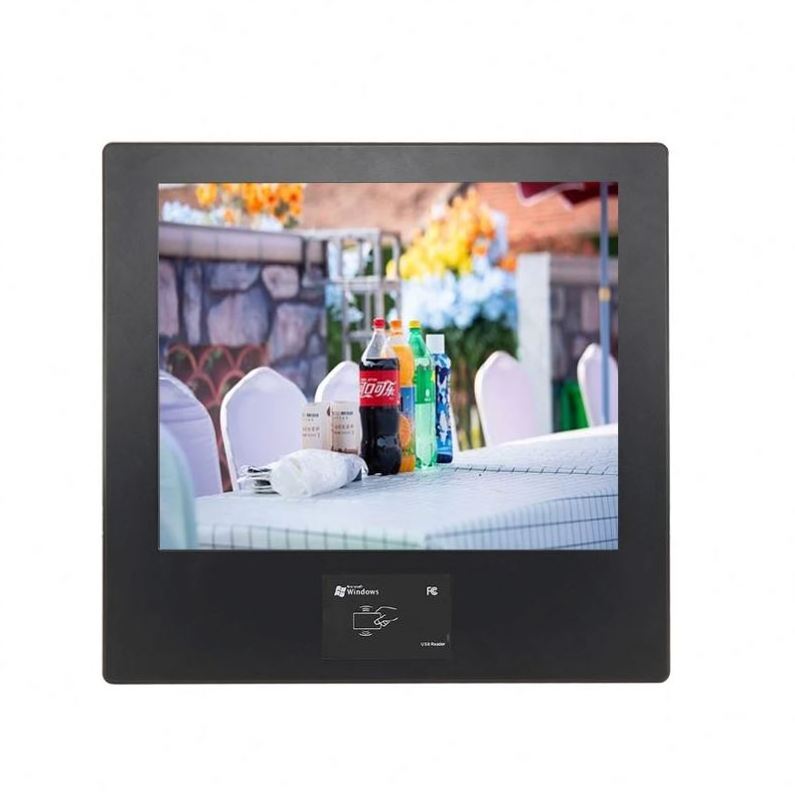

Universal Vesa Mount Cctv Professional Lcd Display 17' Industrial Lcd Monitor Notbook Computer
Features:
u Industrial LCD panel, reliable performance.
u LED backlight, lowe power consumption.
u Support VGA, SVGA, XGA.
u VGA interface.
u 12VDC power input.
u 5-wire analog resistive touchscreen, USB/RS232 touch interface.
u 100mm VESA holes, wall mount / pedestal mount at customer’s choice.
u Wide operational temperature range (-20~+ 50°C).
u Suit for industrial automation and process control systems.
Specification:
|
Model No. |
HSVIM-170 |
|
|
LCD panel |
Size/Aspect ratio |
17'/5:4 |
|
Pixel numbers |
1280(H)*1024(V) |
|
|
Brightness |
380 cd/m 2 |
|
|
Contrast Ratio |
1000:1 |
|
|
Viewing Angle |
170° (H)/160° (V) |
|
|
Colors |
16.7 M |
|
|
Input terminals |
PC signal |
D-Sub15 pin*1 |
|
Power plug |
12V DC jack |
|
|
OSD Control |
Menu, Auto, Up, Down, Power |
|
|
Touchscreen interface |
USB & RS232 |
|
|
Operating condition |
Temperature |
-20°C to 50°C (Operating) -30°C to 60°C (Storage ) |
|
Humidity |
10% RH to 90% RH (Operating) 10% RH to 90% RH (Storage) |
|
|
Touchscreen (optional) |
5-wire analog resistive ( >92% light transmission) |
|
|
Interface: USB / RS232 |
||
|
Power & Power rating (support DPMS) |
Input Voltage |
12V DC,(AC adapter,100~240VAC,50/60Hz) |
|
Operation |
48 watt |
|
|
Stand-by |
‹5 watt |
|
|
Weight |
N.W./G.W. |
|
|
External Dimension |
|
|
|
Mount |
VESA 100mm, wall mount, etc. |
|
|
Optional |
Input: VGA+DVI,VGA+DVI+AV Touch screen(Resistive,SAW,IR,Capacitive) Speakers Protect glass(Screen protected,double coating) |
|
