- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
LCUT
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
2300x 2270x 1250mm
-
Tool Configuration:
-
EOT+ CCD Positioning System+ Vacuum Adsorption
-
Motor:
-
Imported Servo Motor
-
Function:
-
Oscillating Knife Cutting Machine
-
Name:
-
Carton Box Cutting Machine
-
Safety Devices:
-
Use Infrared Sensing, Safe and Reliable
-
Cutting Area:
-
1300x 2500mm
-
Cutting Speed:
-
100-1200mm/s
-
Data Format:
-
DXF, HPGL, PLT, etc
-
Repeat Precision:
-
0.05mm
-
Support:
-
Customization
Quick Details
-
Voltage:
-
220 / 380V
-
Power:
-
9KW
-
Place of Origin:
-
Hainan, China
-
Brand Name:
-
LCUT
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
2300x 2270x 1250mm
-
Tool Configuration:
-
EOT+ CCD Positioning System+ Vacuum Adsorption
-
Motor:
-
Imported Servo Motor
-
Function:
-
Oscillating Knife Cutting Machine
-
Name:
-
Carton Box Cutting Machine
-
Safety Devices:
-
Use Infrared Sensing, Safe and Reliable
-
Cutting Area:
-
1300x 2500mm
-
Cutting Speed:
-
100-1200mm/s
-
Data Format:
-
DXF, HPGL, PLT, etc
-
Repeat Precision:
-
0.05mm
-
Support:
-
Customization
Product Description
Specification
|
Model
|

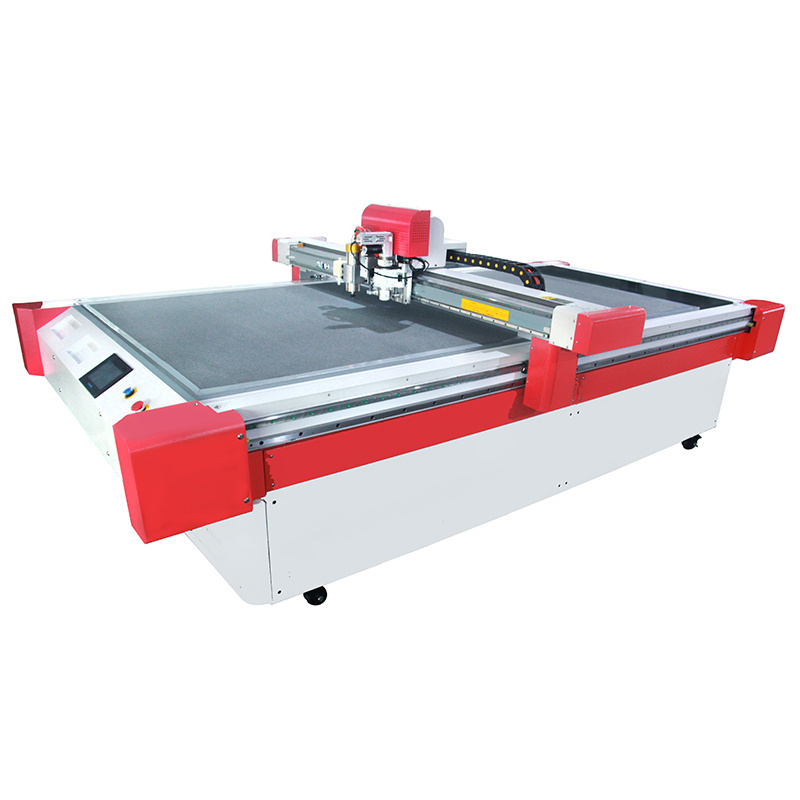

LCUT-1325 CNC Cutter Machine
|
|
Tool Configuration
|
EOT+ CCD Positioning System+ Vacuum Adsorption
|
|
Driving System
|
Imported Servo Motor
|
|
Cutting Speed
|
100-1200mm/s
|
|
Data Format
|
DXF, HPGL, PLT etc
|
|
Total Power
|
9KW
|
|
Material Fixing
|
Vacuum Partittion Adsorption
|
|
Fan Power
|
220V/ 2.2KW
|
|
Cutting Thickness
|
≤20mm(Customized According to Different Materials)
|
|
Repeat Precision
|
0.05mm
|
|
Interface
|
USB/ Enternet Port
|
|
Safety Devices
|
Use Infrared Sensing, Safe and Reliable
|
|
Cutting Area
|
1300mm Width x 2500mm Length
|
|
Applicable Materials
|
Carton box, paper card, cardboard, KT board, sticker, rubber, EVA, foam etc
|
|
Function
|
Flatbed Cutter/ Oscillating Knife Cutting Machine
|
Packing & Shipping
Company Introduction
Exhibition
Certifications
FAQ
Q. How can guarantee the products quality?
R: Always a pre-production sample before mass production, and final Inspection before shipment.
R: Always a pre-production sample before mass production, and final Inspection before shipment.
Q: I didn't use this machine before, is it easy to operate for me?
R: Yes, the machine is easy to use, and we will send you how-to tutorials and guide video, which can teach you how to operate. We can also assist you by online group chat, phone call, E-mail if you still have trouble handling it.
R: Yes, the machine is easy to use, and we will send you how-to tutorials and guide video, which can teach you how to operate. We can also assist you by online group chat, phone call, E-mail if you still have trouble handling it.
R: We would send free parts in warranty period, if machines have any problem under normal use.
Q: How would you pack the machine I bought?
R: Film packaging+ wooden case. Fumigation-free plywood case is also available.
R: Film packaging+ wooden case. Fumigation-free plywood case is also available.
Q: What is the price and payment terms?
R: Price terms: EXW, CIF, FOB ; Payment: TT/ Paypal / LC/ Western Union.etc
R: Price terms: EXW, CIF, FOB ; Payment: TT/ Paypal / LC/ Western Union.etc
