Quick Details
-
Mounting Type:
-
touch the air
-
Description:
-
40khz ultrasonic emitter transducer 1cm 10mm, ultrasonic piezoelectric transducer 10mm 40khz, 40khz underwater ultrasonic transducer
-
Model Number:
-
HC40-16TRBZ-T1
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
ISSR
-
Theory:
-
ultrasonic
-
Sensor frequency:
-
40KHz
-
Capacitance (pf):
-
1800±10%
-
Angle:
-
45±10
-
Echo sensitivity:
-
≥600mv
-
Residual vibration:
-
≤1.4ms
-
Material:
-
aluminum
-
Working temperature:
-
-40℃~+80℃
-
Storage temperature:
-
-40℃~+85℃
Quick Details
-
Usage:
-
distance, level, gas flow measuring
-
Series:
-
ultrasonic sensor transmitter and receiver
-
Features:
-
teach-in
-
Mounting Type:
-
touch the air
-
Description:
-
40khz ultrasonic emitter transducer 1cm 10mm, ultrasonic piezoelectric transducer 10mm 40khz, 40khz underwater ultrasonic transducer
-
Model Number:
-
HC40-16TRBZ-T1
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
ISSR
-
Theory:
-
ultrasonic
-
Sensor frequency:
-
40KHz
-
Capacitance (pf):
-
1800±10%
-
Angle:
-
45±10
-
Echo sensitivity:
-
≥600mv
-
Residual vibration:
-
≤1.4ms
-
Material:
-
aluminum
-
Working temperature:
-
-40℃~+80℃
-
Storage temperature:
-
-40℃~+85℃
ISSR 1cm 10mm 40 khz Ultrasonic Emitter Transmitter Piezoelectric 40khz Underwater Ultrasonic Transducer
>High sensitivity
>Wide frequency band
>Good signal-to-noise ratio
>High and low temperature resistance
>Simple structure and good appearance
>Reliable and stable performance
Product Parameters
________________________________________________________________________________________________________________
| Product Name | low frequency ultrasonic transducer | Model | HC40-16TRBZ-T1 |
| No. | Item | Test Conditions | Test Standard |
| 1 | Center frequency (KHZ) | Normal temperature 25±3 (℃) |
40±1
|
| 2 | Angle (°) |
Normal temperature 25±3 (℃), Probe from the ground height of 60cm, 60cm from the object to be detected by the probe.
The object is Dia. 75mm PVC pipe. The height of the pipe is 1 M. The test environment requires no obstacles within a 2 M radius. |
45±10 |
| 3 | Echo sensitivity (mv) | Room temperature 25±3 (℃), Distance:1.2m, Obstacle: Dia. 75mm*1000mm PVC pipe | ≥600mv |
| 4 | Residual vibration (ms) | 25±3 (℃) at room temperature, simulation test mainboard | ≤1.4 |
| 5 | Working temperature (℃) | [-40~+80(℃) | qualified |
| 6 | Storage temperature (℃) | [-40~+85(℃) | qualified |

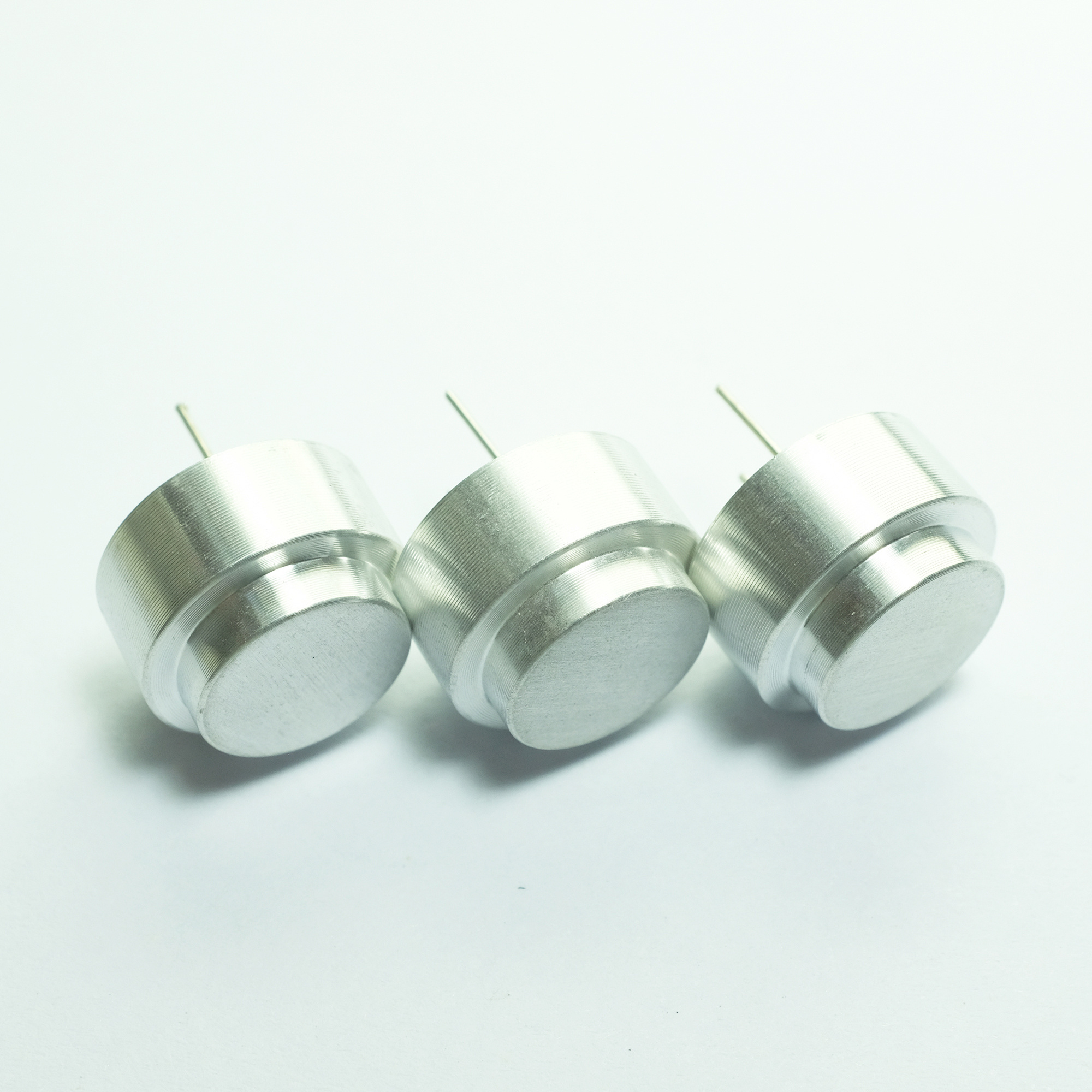

Ultrasonic Transducers Show
________________________________________________________________________________________________________________
Our Certificates
________________________________________________________________________________________________________________
Our company has obtained more than 20 patents as well as software copyrights. Moreover, ISSR has obtained ISO,9001, CE, ROHS, UL certificates. In addition, our transducers are certified by NSF IATF16949:2016.
Factory Show
________________________________________________________________________________________________________________
ISSR specializes in the design, development and production assembly of ultrasonic transducers and systems.CAMOTECH is another factory of our boss —— mainly producing ultrasonic transducers.
Sensor production process
