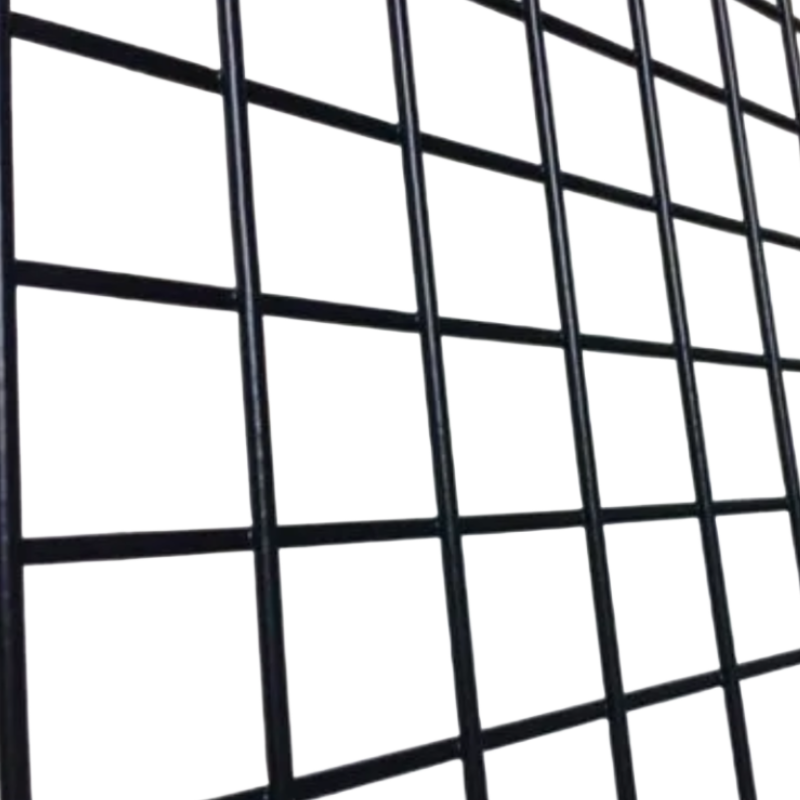

Black PVC Vinyl Coated 2"x2"x10g / 12g (2.5/3.0mm) Galvanised Weld Mesh Panel 6ft x 3ft

FOB Reference Price: Get Latest Price

≥50 Pieces

US $15

≥100 Pieces

US $13

≥500 Pieces

US $11

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: ANPING, HENGSHUI, HEBEI, CHINA

Model Number:: XBY-WMP-TG012

Brand Name:: XINBOYUAN

Wire Gauge:: 16ga. to 6ga. 1.6mm to 5.0mm

Mesh Size:: 1"x1", 2"x1", 3"x1", 2"x2", 3"x3", 4"x4" and 6"x3"

Hole shape:: Square, Rectangular

Panel Width:: 0.5m to 1.8m or customized

Panel Length:: 1.8m to 3.6m or customized

Surface treatment:: Galvanized, PVC/PE coated

Production Capacity:: 3500 sqm per Day

Supplied Shapes:: in Rolls, Panels, Discs, Sheets and other Customized Shapes

Feature:: Anti-corrosion, Anti-rust, Good Processing, Stablity

H.S. Code:: 7314310000

Quick Details

Material:: Iron Wire

Type:: Welded Mesh

Application:: Agricuture, Farming, Consturction, Industrial, Mine

Place of Origin:: ANPING, HENGSHUI, HEBEI, CHINA

Model Number:: XBY-WMP-TG012

Brand Name:: XINBOYUAN

Wire Gauge:: 16ga. to 6ga. 1.6mm to 5.0mm

Mesh Size:: 1"x1", 2"x1", 3"x1", 2"x2", 3"x3", 4"x4" and 6"x3"

Hole shape:: Square, Rectangular

Panel Width:: 0.5m to 1.8m or customized

Panel Length:: 1.8m to 3.6m or customized

Surface treatment:: Galvanized, PVC/PE coated

Production Capacity:: 3500 sqm per Day

Supplied Shapes:: in Rolls, Panels, Discs, Sheets and other Customized Shapes

Feature:: Anti-corrosion, Anti-rust, Good Processing, Stablity

H.S. Code:: 7314310000

Product Information

Galvanised welded wire steel mesh panels

Galvanised steel wire mesh panels, long-lasting for a wide range of uses including animal cages, plant climbing, garden fencing, automotive and agricultural sectors. All our galvanised mesh panels are hot-dipped galvanised and made from steel wires ranging from 2.5mm, 3mm, 4mm and 5mm diameter wires. Choose from 1"x1", 2"x1", 3"x1", 2"x2", 3"x3", 4"x4" and 6"x3" mesh holes sizes. Weld mesh panels can be used for fencing, pond covers, security cages, aviaries, dog kennels and runs, fox-proofing, fruit cages, machine guards, on scaffolding and behind walls for added security.

Welded wire mesh is supplied in different types of raw material.

1 - Black Iron Welded Wire Mesh

2 - Galvanized welded wire mes

3 - Stainless steel Welded Wire Mesh

4 - PVC coated welded wire mesh

Black Iron Welded Wire Mesh

Galvanized Welded Wire Mesh

PVC / PE Vinyl Coated Welded Wire Mesh

Stainless Steel Welded Wire Mesh

Product Specifications

Welded Wire Mesh Panel Specifications
Openning Size			Wire Diameter
(inch)	(mm)	(mm)
1/2"x1/2"	12.7 x 12.7	1.6-2.0
1/2"x1"	12.7 x 25.4	1.6-2.0
1"x1"	25.4 x 25.4	2-3
1"x2"	25.4 x 50.8	2-4
2"x2"	50.8 x 50.8	2-4
2"x3"	50.8 x 76.2	2-4
3"x3"	75 x 75	2-5
2"x4"	50 x100	2-5
4"x4"	100 x 100	2-5
Standard Panel Size: 2'x6', 3'x6', 4'x6', 4'x8', 6'x12' Customized Panel Size Available: width 2'-10', length 3'-26'

Application

Welded Border Fence

Plaster Welded Wire Mesh

Welded Cattle Fence / Farm Fence

Galvanized Rabitz Wire

Welded Gabion Baskets Stone Cage

EPS 3D wall Panel

Package and Loading

Company Profle

Anping XinBoYuan Wire Mesh Products Co., Ltd. is a professional wire mesh products manufacturer, which combines with production, processing and sales.

XinBoYuan factory main produces: Hexagonal Gabion box, Welded Gabbin Basket, Heavy Hexagonal Wire Mesh, Highway & Rail Fence, Ccommunity Garden Fence, Stadium Fence, Euro Fence, Temporary Fence, Workshop Warehouse Fence, SNS Active Protection System , SNS Passive Slope Protection System, Steel Grating, Wind/Dust-Suppression Nets, and other Deep processed Products.
