Quick Details
-
Theory:
-
Microwave motion sensor
-
Description:
-
12V 24V 220V 240V Motion Sensors Microwave Sensor
-
Application:
-
Intelligent Products
-
Detection Angle:
-
360 Degrees
-
Name:
-
12V 24V 220V 240V Pir Motion Sensors Microwave Sensor
-
Detection Range:
-
3-10M (radii)
-
Sensor Type:
-
Microwave Doppler Sensor
-
Time Delay:
-
10s-30s-90s-5min-10min-30min (adjustable)
-
Rated Load:
-
1200W (incandescent Lamp) 300W (energy-saving Lamp)
-
HF System:
-
5.8GHz
-
Mounting Type:
-
Surface Mount
-
Warranty:
-
3 Years
Quick Details
-
Use:
-
ON/OFF Switch for Light
-
Model Number:
-
YTC-WB06
-
Place of Origin:
-
Fujian, China
-
Theory:
-
Microwave motion sensor
-
Description:
-
12V 24V 220V 240V Motion Sensors Microwave Sensor
-
Application:
-
Intelligent Products
-
Detection Angle:
-
360 Degrees
-
Name:
-
12V 24V 220V 240V Pir Motion Sensors Microwave Sensor
-
Detection Range:
-
3-10M (radii)
-
Sensor Type:
-
Microwave Doppler Sensor
-
Time Delay:
-
10s-30s-90s-5min-10min-30min (adjustable)
-
Rated Load:
-
1200W (incandescent Lamp) 300W (energy-saving Lamp)
-
HF System:
-
5.8GHz
-
Mounting Type:
-
Surface Mount
-
Warranty:
-
3 Years
Detail Information:
| Operating voltage | 120 - 240V AC, 50/60Hz. DC 12 V 24V | |||
| Rated load: | 600W@120VAC (capacitive) / 1200W @ 200/240VAC (capacitive) | |||
| Stand-by power | <0.5W | |||
| Detection area | 25%/ 50%/75%/100% | |||
| Hold time | 5s/1min/5min/30min | |||
| Daylight threshold | 5Lux/20Lux/100Lux/Disable ( | |||
| Microwave frequency | 5.8GHz±75MHz | |||
| Microwave power | <0.3mW | |||
| Interfaces | 4-pole pluggable clamp terminal (L,N,N,L’) for 0.75-1.5mm2 cable | |||
| Mounting height | Max.5m(ceiling mounted);Max.3m(wall mounted) | |||
| Detection range | Max.ø12m(ceiling mounted);Max.10m(wall mounted) | |||
| Detection angle | 360° | |||
| Operating temperature | -25°C - +60°C | |||
| IP rating | IP20 | |||
| Warranty | 5 years | |||
Features:
1. Microwave motion detection version.
2. Six DIP switch setting, distance, hold time, daylight sensor adjustable.
3. Ultra-small mounting size, multiple mounting options, support for top and bottom mounting options.
4. Super cost-effective, support a variety of lamps,tri-proof lamps, ceiling lamps.
5. The infrared sensor is used to filter out the light sensor, and the light sensitivity value is more accurate, and is not affected by cloudy and sunny days.
6. Low impedance 5.8G antenna for superior immunity to interference.

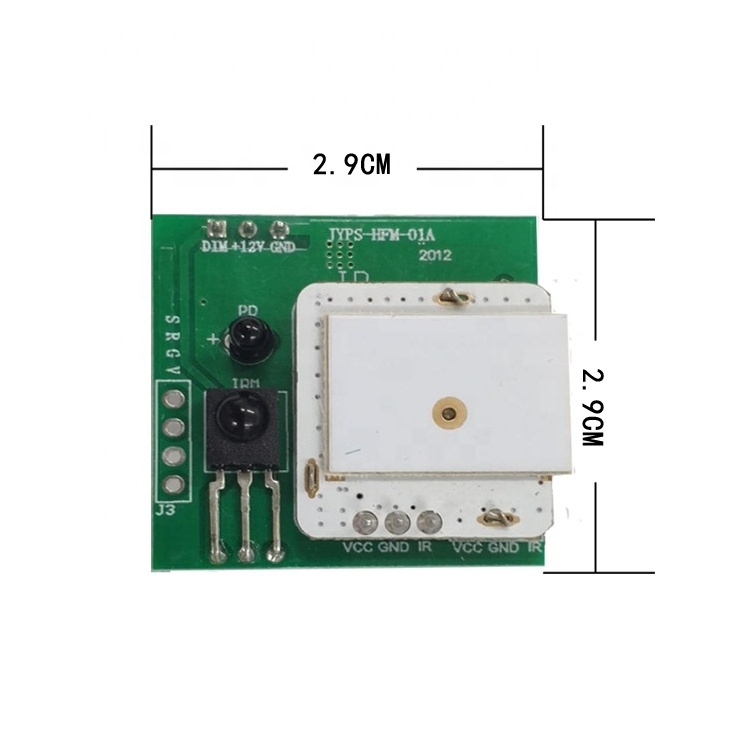

Dimension (mm):
Wiring and Structure:
Radiation Pattern:
Detection range
Detection range can be reduced by remote control
Demo:
OEM / ODM
