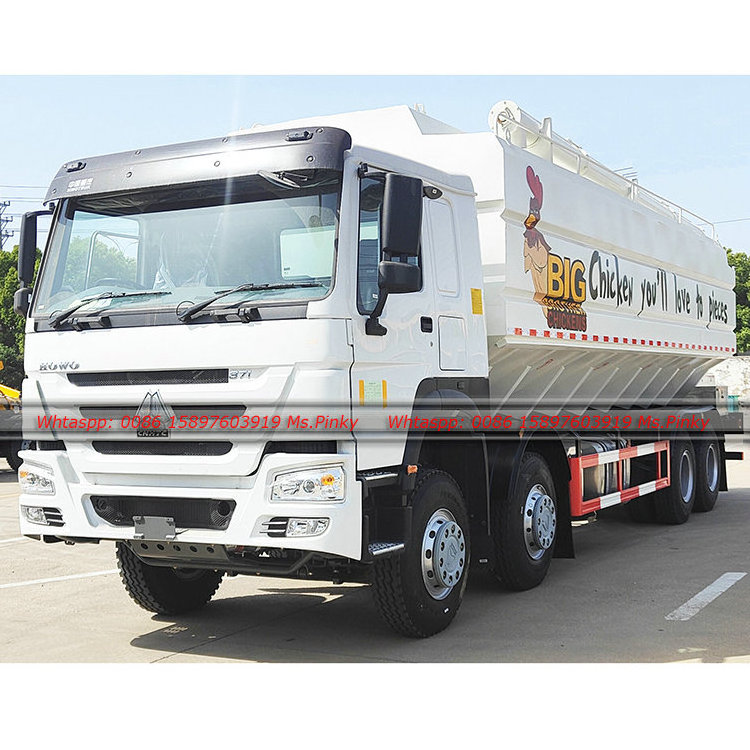

Superior Quality Sinotruk HOWO RHD Feed Grain Transport Truck For Poultry Bulk Feed Animals Feeding Delivery Trucks

Superior Quality Sinotruk HOWO RHD Feed Grain Transport Truck For Poultry Bulk Feed Animals Feeding Delivery Trucks

FOB Reference Price: Get Latest Price

≥1 Pieces

US $50500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Horsepower:: 351 - 450hp

Cargo Tank Type:: Van

Gross Vehicle Weight:: >=30000 kg

Drive Wheel:: 8X4

After-sales Service Provided:: Video technical support, Online support

Place of Origin:: Hubei, China

Size:: 11800*2500*3900

Cargo Tank Dimension:: 8500*2500*2400

Color:: Customer's Require Bulk Feed Transport Truck

Chinese Brand:: LHD Or RHD

Bulk feed capacity:: 40000Liters 40m3

Control System:: Hydraulic Control

Discharge principle:: Hydraulic twist, blade rotation

Packing auger material:: Alloy steel

Poultry Farm Bulk Feed Truck:: Transport animal grain feed livestock bulk feed

keywords:: Feed Grain Transport Truck

HOWO Bulk Feed Transport Truck:: Right hand drive RHD export to Zimbabwe

Driving type:: 8x4 12wheels

Quick Details

Condition:: New

Emission Standard:: Euro 2

Market Segement:: Livestock and poultry transportation

Horsepower:: 351 - 450hp

Cargo Tank Type:: Van

Gross Vehicle Weight:: >=30000 kg

Drive Wheel:: 8X4

After-sales Service Provided:: Video technical support, Online support

Place of Origin:: Hubei, China

Size:: 11800*2500*3900

Cargo Tank Dimension:: 8500*2500*2400

Color:: Customer's Require Bulk Feed Transport Truck

Chinese Brand:: LHD Or RHD

Bulk feed capacity:: 40000Liters 40m3

Control System:: Hydraulic Control

Discharge principle:: Hydraulic twist, blade rotation

Packing auger material:: Alloy steel

Poultry Farm Bulk Feed Truck:: Transport animal grain feed livestock bulk feed

keywords:: Feed Grain Transport Truck

HOWO Bulk Feed Transport Truck:: Right hand drive RHD export to Zimbabwe

Driving type:: 8x4 12wheels

Product Description

Sinotruk HOWO RHD Feed Grain Transport Truck For Poultry Bulk Feed Animals Feeding Delivery Trucks Feed Grain

Equipment purpose Of Bulk Feed Transport Truck:

Bulk feed truck is also called feed truck, feed delivery truck, feed tanker vehicle, feed tank truck, feed transport truck, bulk feed transport vehicle, bulk feed delivery truck, bulk feed transporter truck, etc. It is a special transport vehicle made of high-quality, high-strength steel plate welded forming tanks and equipped with electric or hydraulic auger unloading system on the basis of various types of trucks or second-class chassis. Optional feed tank capacity: 12cbm to 40cbm bulk feed truck. Optional quantity of compartments: 2-5 warehouses, 3 warehouses as our standard. Optional brands of chassis: Dongfeng, FOTON, SHACMAN, HOWO bulk feed trucks for choose. Discharge method: Electric or hydraulic screw conveyer discharge system, electric can be powered by a generator.

Sinotruk HOWO RHD Feed Grain Transport Truck For Poultry Bulk Feed Animals Feeding Delivery Trucks Feed Grain

tank compartment: 4 (optional)

tank size: 8400×2500×2400 mm

Tank capacity:40cbm

loading capacity : 19Tons

Material of hinge blade: Alloy steel

Hydraulic Operation system

Optional operate by motor

Specification

Technical parameter of chassis ZZ1257N4647A Animal Bulk Feed Transport Truck
outside dimension (L×W×H)mm	1055025003500
Loading mass	19,000Kg
Kerb mass	89000Kg
Chassis Model /Manufacturer	ZZ Right hand drive.
driving type	8×4
Cabin	HW 76 , flat head, tippable, one sleeper with A/C
Wheelbase	1800+4300+1350mm
Engine
model	WD615.47 371HP
Type	Diesel, 6-cylinder in line with water cooling, turbo-charging &electrical control inner Euro 2
Max. power/rotated speed	273kw/1100-1600r/min
Max. torque	371hp@2200rpm
Displacement(ML)	9726ml
Cylinder bore×Stroke(mm)	130x126mm
Company of engine	Sinotruck engine
Type of fuel	diesel
Compression ratio	17:01

Steering : power-steering .
Transmission	SINOTRUK HW19710
Tyre	12.00R20
Max Speed	90Km/h
air condition	With

The number of tanks divided into warehouses	4 Warehouse (optional)	Tank size (mm)	840025002400
Discharge speed (kg/min)	500-600	Active angle angle of swing Angangle	± 180 degrees
Horizontal delivery maximum distance (m)	7.4 (Optional)	Maximum elevation angle of active unloading cutter dragon	60 Degrees
Tank volume	40 cubic meters	Vertical transmission maximum distance (m)	8.5
Strlong Diameter (mm)	273	Loading tonnage	19 Tons
Vehicle Discharge time (min)	35	Residual rate (%)	0.01
The principle of unloading	Hydraulic winlong, blade rotation	Hanging dragon blade material	alloy steel
Uncharge system (blade rotation)	Horizontal stranded (273mm for bottom of horizontal tank), vertical stranded (273mm), live stranded (219mm for top discharge)
operating system
Electric operating system	Adopt 35.5KW imported Siemens three-phase asynchronous motor, electrical control system, with 30 meters of external power line, with remote control, the advantages of small vibration, small noise. Waterproof and dust-proof, etc.
Hydraulic operating system	Imported parts: Denison hydraulic pump, Eaton hydraulic motor, hydraulic valve: Taiwan oil force, with radiator, with remote control.

Details Images

Sinotruk HOWO RHD Feed Grain Transport Truck For Poultry Bulk Feed Animals Feeding Delivery Trucks Feed Grain

Structure and characteristic of Bulk Feed Transport Truck: Extremely lightweight design of the whole vehicle, with the characteristics of light weight, high strength, low center of gravity, more loading, good handling, etc. The tank body is welded with high-quality and high-strength steel plates. Equipped with hydraulic or electric unloading system. It is widely used to transport bulk feed products or raw grain for feed production from feed factories to livestock farms, poultry farms and feed processing users. Different feeds can be loaded and unloaded at the same time. The auger unloading saves manpower and time. The loading and unloading is convenient, with less residue and beautiful appearance

Electric operating system(Optional):

Three 5.5KW imported Siemens three-phase asynchronous motors, electrical control system, equipped with 30m external power cord, with remote control, advantages of low vibration and low noise. Waterproof and dustproof, etc.
