Quick Details
-
Model Number:
-
FS1530P
-
Voltage:
-
380v
-
Rated Power:
-
100A
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Weight (KG):
-
1600 KG
-
Year:
-
New
-
Marketing Type:
-
New Product 2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
plasma cutting machine:
-
plasma metal cutter
-
use:
-
metal cutting
-
materials:
-
steel,aluminum,ect.
-
control system:
-
START control system
-
power:
-
THERMADYNE plasma power
-
arc pressure:
-
automatic arc pressure adjustable
-
motor and drive:
-
Stepping drives and motors
-
software:
-
Fast Cam software
-
machine body:
-
thicken cast steel structure
Quick Details
-
Dimensions:
-
1500*3000mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Forsun
-
Model Number:
-
FS1530P
-
Voltage:
-
380v
-
Rated Power:
-
100A
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Weight (KG):
-
1600 KG
-
Year:
-
New
-
Marketing Type:
-
New Product 2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
plasma cutting machine:
-
plasma metal cutter
-
use:
-
metal cutting
-
materials:
-
steel,aluminum,ect.
-
control system:
-
START control system
-
power:
-
THERMADYNE plasma power
-
arc pressure:
-
automatic arc pressure adjustable
-
motor and drive:
-
Stepping drives and motors
-
software:
-
Fast Cam software
-
machine body:
-
thicken cast steel structure

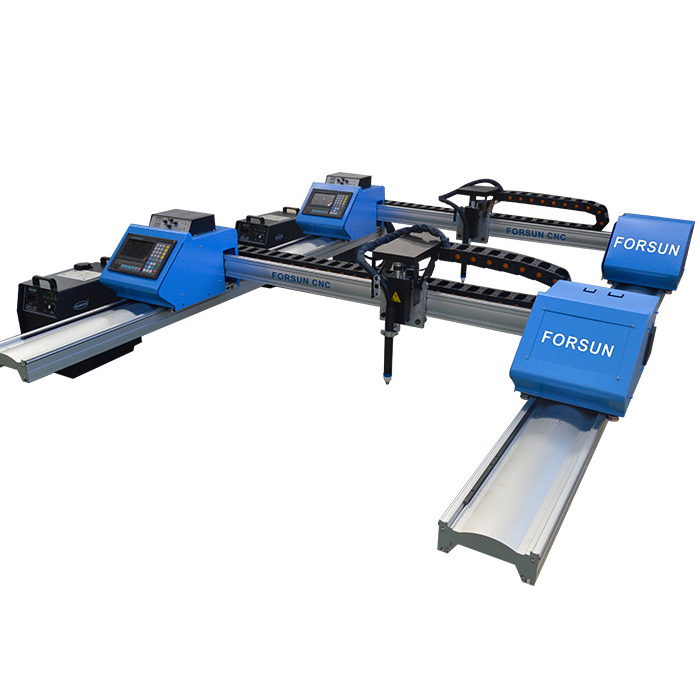

Portable Plasma Cutting Machine Hobby mini table type CNC Plasma Cutter
Feature of plasma cutting machine:
♦ working area: 1500*3000mm
♦ Heavy duty thicken machine body
♦ 200A Hypertherm plasma power
♦ Stepper motor and Leadshine Driver
♦ Start Controller system from Beijing
♦ Automatic Arc Pressure adjustable
♦ HIWIN Linear Guide Rail
♦ Helical Rack and Pinion
♦ Fast Cam software
♦ Big size rotary system in machine side
♦ warranty : 1.5 years
Advantage of cnc plasma cutter machine :
| 1. Plasma power |
Hypertherm 200A power Famous brand all of the world, low price, Cutting thickness 0.3-52mm |
| 2. Controller system |
Beijing Start control system, configured 7-inch high-resolution true color LCD display. can be dynamically cut graphics running track. |
| 3. Motor |
450B stepper motors With high quality & stronger power, ensure machine work very well. |
| 4. Driver |
Leadshine 860H Drivers It can run with smaller noise, lower heating, smoother movement and have better performances at higher speed.Save human strength and save time. |
| 5. Automatic Arc Pressure adjustable |
Beijing Start Adjust the torch height during cutting. Perforated height self-positioning |
| 6. software |
Fast Cam
nesting software for machine. Using it, and finally export G code, then can be recognized by machine |
|
Name |
Specification |
|
Working Area(X*Y) |
1300×2500mm |
|
Machine Structure |
Welded |
|
X Y Guide Rail |
Taiwan HIWIN Square Rail |
|
X Y Transmission |
Imported Rack gears |
|
Drive Mode |
Stepper Motor (Optional Servo ) |
|
Control System |
START |
|
Max thickness |
0.3-22mm |
|
Plasma Generator |
100A Huanyuan plasma power |
|
Cutting Speed |
0-8000mm/min |
|
Working Voltage |
3-Phase 380V/2-phrase 220V |
|
G.W. |
1200KGS |
♦ Application Materials: Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc
♦ Application Industry: Sheet metal, kitchenware, components, decorations industry
Packaging and shipping of cnc plasma cutter machine:
Services of cnc plasma cutter machine:
Guarantee:
1.5 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email, WhatsApp, Wechat or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by
Costomer visit of cnc plasma cutter machine:
FAQ of cnc plasma cutter machine:
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
