Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
61500*2350*3763
-
Machine Weight:
-
8500 kg
-
Bucket capacity:
-
1 CBM
-
Marketing Type:
-
New Product 2023
-
Engine:
-
YuDong4105
-
Wheelbase(mm):
-
2200
-
Wheeltrack(mm):
-
2850/2000
-
Min Ground Clearance(mm):
-
300
-
Rotation Speed(RMP):
-
22-35
-
wheel distance:
-
Front 4 and Back 4
-
Rated speed(r/min):
-
2400
-
Operating System:
-
Electromagnetic Hyd. Pilot
-
Maximum Digging Radius (mm):
-
5400-6500
-
Max Unloading Height (mm):
-
3800-4450
Quick Details
-
Engine Brand:
-
YUDONG
-
Power:
-
85KW
-
Brand Name:
-
YAWEH
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
61500*2350*3763
-
Machine Weight:
-
8500 kg
-
Bucket capacity:
-
1 CBM
-
Marketing Type:
-
New Product 2023
-
Engine:
-
YuDong4105
-
Wheelbase(mm):
-
2200
-
Wheeltrack(mm):
-
2850/2000
-
Min Ground Clearance(mm):
-
300
-
Rotation Speed(RMP):
-
22-35
-
wheel distance:
-
Front 4 and Back 4
-
Rated speed(r/min):
-
2400
-
Operating System:
-
Electromagnetic Hyd. Pilot
-
Maximum Digging Radius (mm):
-
5400-6500
-
Max Unloading Height (mm):
-
3800-4450
|

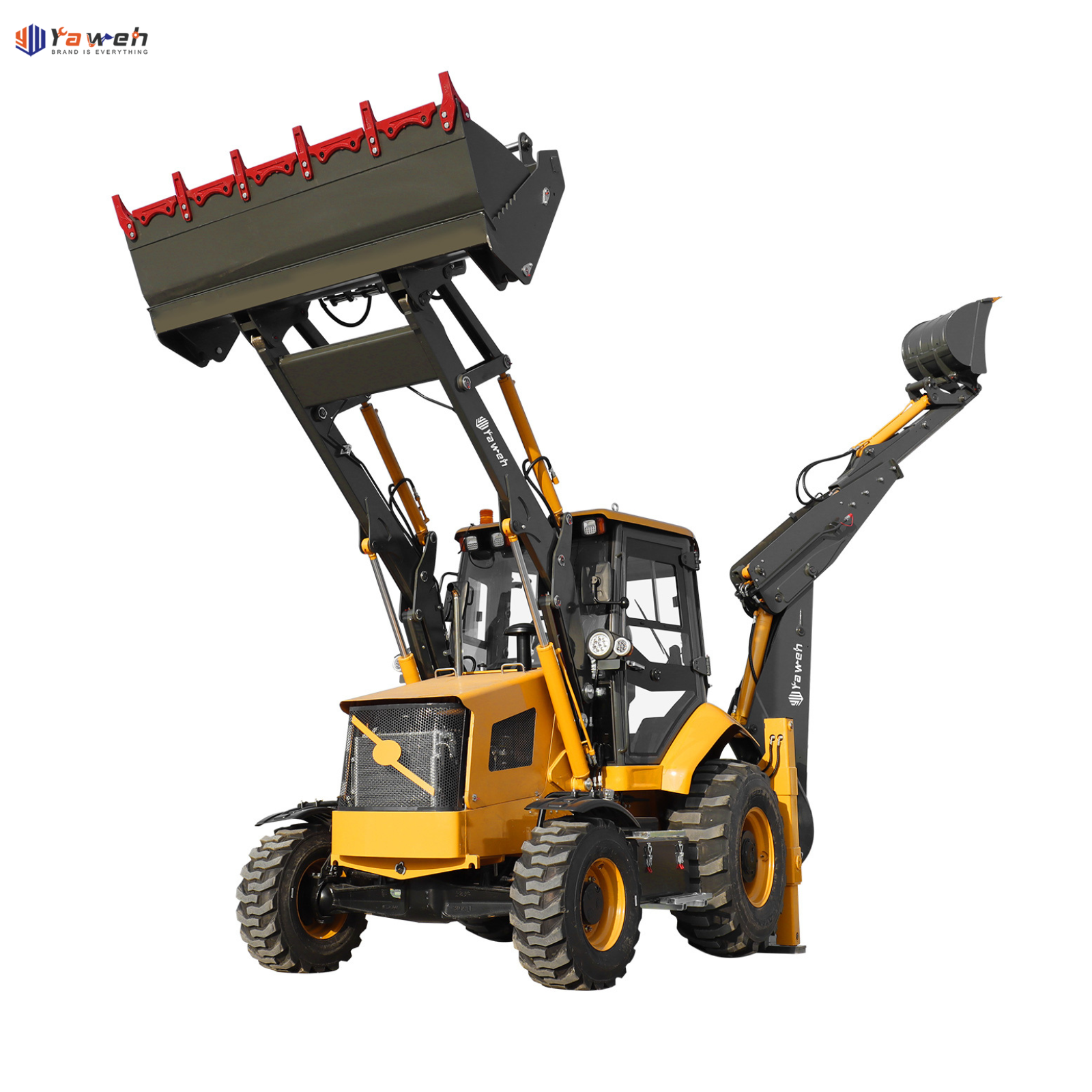

The Main Performance Parameter of Backhoe Loader ASG388
|
|
|
|
|||
|
Overall dimensions
|
8320KG
|
Engine
|
Single Stage Final Reducer
|
|||
|
Dimension（L*W*H）（mm）
|
6500*2500*3800
|
Model
|
YuChai 4105/4108 Supercharged
|
|||
|
Wheelbase(mm)
|
2250
|
Type
|
Turbocharged
|
|||
|
Wheel track(mm)
|
2250
|
Rated(kw)
|
75/85
|
|||
|
Min. Ground Clearance(mm)
|
400mm
|
Rated speed(r/min)
|
2400
|
|||
|
Min. turning radius(mm)
|
4200
|
Number of cylinders - bore
|
4-105/4-108
|
|||
|
Performance Parameters
|
|
transmission system
|
|
|||
|
System pressure(Mpa)
|
28
|
Transmission
|
Fixed-axis powershift
|
|||
|
Overall weight(kg)
|
9500
|
Number of gears
|
Front 4 and back 4
|
|||
|
Max. speed(km/h)
|
38
|
Torque converter
|
YJ300
|
|||
|
Max. climbing capacity(°)
|
35
|
|
|
|||
|
Excavation parameters
|
|
Axle
|
|
|||
|
Max. digging depth(mm)
|
4000/5300
|
Type
|
100 steering drive axle
|
|||
|
Excavation unloading height(mm)
|
3800/4450
|
Tires
|
Fixed Shaft Power Transmission
|
|||
|
Max. digging radius(mm)
|
5400/6500
|
Specification
|
16.9-28-14
|
|||
|
Max. lifting height（mm）
|
5480/6100
|
Travel brake
|
Air top oil caliper disc brake
|
|||
|
Hopper capacity(m³)
|
0.3
|
Parking brake
|
Handbrake
|
|||
|
Excavator slewing angle（°）
|
190
|
|
|
|||
|
Loading parameters
|
Cummins
|
Oil volume
|
|
|||
|
Max. unloading height（mm）
|
2500
|
Fuel Tank(L)
|
|
|||
|
Max. unloading distance(mm)
|
800
|
|
|
|||
|
Loading bucket capacity(mm)
|
1.2
|
|
|
|||
|
Rated loading capacity (KG)
|
2500
|
|
|
|||
|
Digging force (KN)
|
38
|
Hydraulic oil tank(L)
|
150
|
|||
|
Other
|
|
|
|
|||
|
Drive type
|
|
Four-wheel drive
|
|
|||
|
Variable speed form
|
|
Hydraulic variable speed
|
|
|||
|
Manipulation System
|
|
Electromagnetic hydraulic pilot control
|
|
|||
