Quick Details
-
feeding:
-
force feeding or screw charger
-
dirty material cleaning:
-
hyrdraulic changer
-
water tank material:
-
stainless steel
-
water tank length:
-
4meters
-
speed control:
-
ABB Inverter control
-
Motor brand:
-
Siemens motor
-
Machine name:
-
double stage granulator machine
Quick Details
-
Raw material recycling:
-
PP, PE,PVC,PS plastic film, hard plastic etc.
-
Extruder type:
-
single screw extruder
-
Cutting type:
-
strip or water ring cutting
-
feeding:
-
force feeding or screw charger
-
dirty material cleaning:
-
hyrdraulic changer
-
water tank material:
-
stainless steel
-
water tank length:
-
4meters
-
speed control:
-
ABB Inverter control
-
Motor brand:
-
Siemens motor
-
Machine name:
-
double stage granulator machine

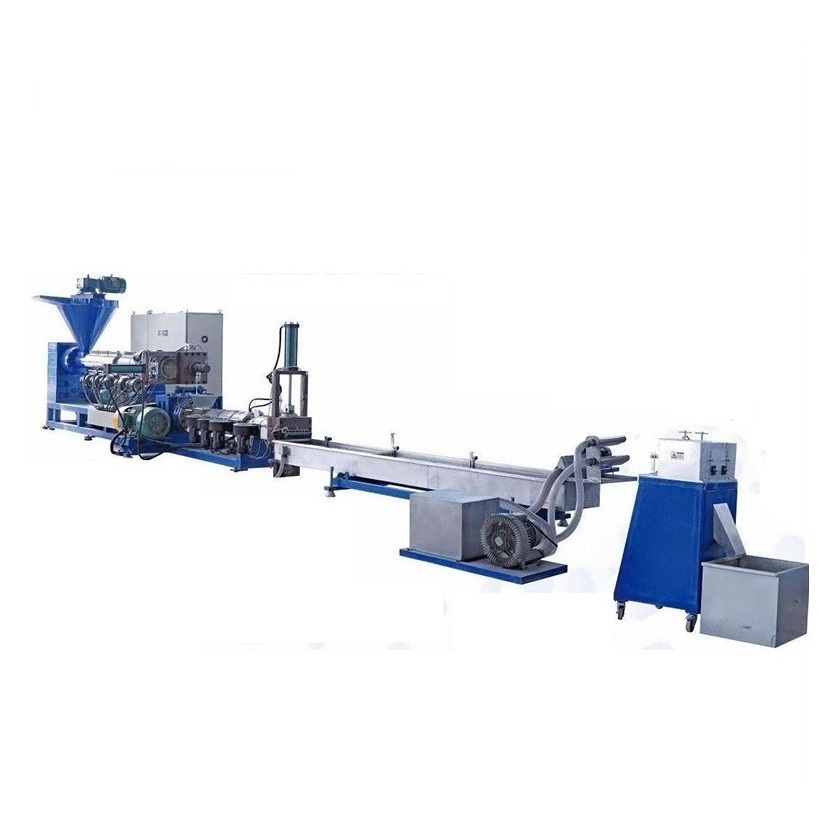

Double Stage Granulator Machine
Introduction
recycled plastic granulation machine
1.process:make the PP/PE into granules
2.capacity:100-500kg/h
3.with CE certification
This is the Two stage Pelletizer, it is good to recycle the waste plastic PP PE.
1. Features and application:
1) This is the Two stage Pelletizer, Double-ranks Recycling and Granulating Machine, it is good to recycle the waste plastic PP PE.
2) We use force feeding, as the screw can exclude gas and steam. After plasticization and extrusion, the particles can have high density, nice surface, high output, stable extrusion. Customers can certainly adopt which feeder they like.
3) This granulator is with Water-ring Cutting, the output is round granules, there is also the other kind, with the output cylinder granules.
4) Production capacity: 100-500kg/h.
5) These machines are for different customers to choose. And we could also design special granulator line according to the customers' request.
Advantage:
1. Screw and barrel are made of 38CrMoAlA, inlet mouth treated with special alloy: very strong and long life.
2. Easy operation: it has automatic constant temperature control and stable performance. After adjusting well, 1 or 2 workers are enough to run this machine, to feed the materials and change pellet receiver.
3. Low cost in using after redesign: now this kind machine is more economic in electric power source and also water. In the long working life of this machine, it can save many sources in energy!
4. High output, long operating life and lower noise: it’s the ideal waste plastics regenerative pelletizer machine for nowadays .
List of machines:
|
Model |
L/D |
Output |
Speed of Screw Rotation |
Power |
Center Height |
|
SJ-50/33 |
33:1 |
20-80 kg/h |
12.5-130 r/min |
37kw |
1000 mm |
|
SJ-65/33 |
33:1 |
80-150 kg/h |
33-130 r/min 20-120r/min |
45kw 55kw |
1000 mm |
|
SJ-75/33 |
33:1 |
120-280 kg/h |
20-120 r/min |
75kw 90kw |
1000 mm |
|
SJ-90/33 |
33:1 |
150-450 kg/h |
33.3-110 r/min |
110kw 160kw |
1000 mm |
|
SJ-120/33 |
33:1 |
300-600 kg/h |
20-100 r/min |
260kw |
1200 mm |
|
SJ-150/33 |
33:1 |
450-700 kg/h |
7-80 r/min |
315kw |
1200 mm |
We use Wooden case package, wooden pallet, PE plastic film package etc. shipping is by train, by railway, by air. Lading port is Shanghai port and so on.
We run machines in our factory before machines delivery. Clients check machines running in our factory, if no problem, then delivery, when machines arrive in Client’s factory, we will send our engineer to run machines in client’s factory.
We supply machines technical support, products formulation support; guarantee machines and spare parts supply.
