Quick Details
-
Brand Name:
-
Dust filter
-
Dimension(L*W*H):
-
customized, standard
-
Weight:
-
2 KG
-
Product name:
-

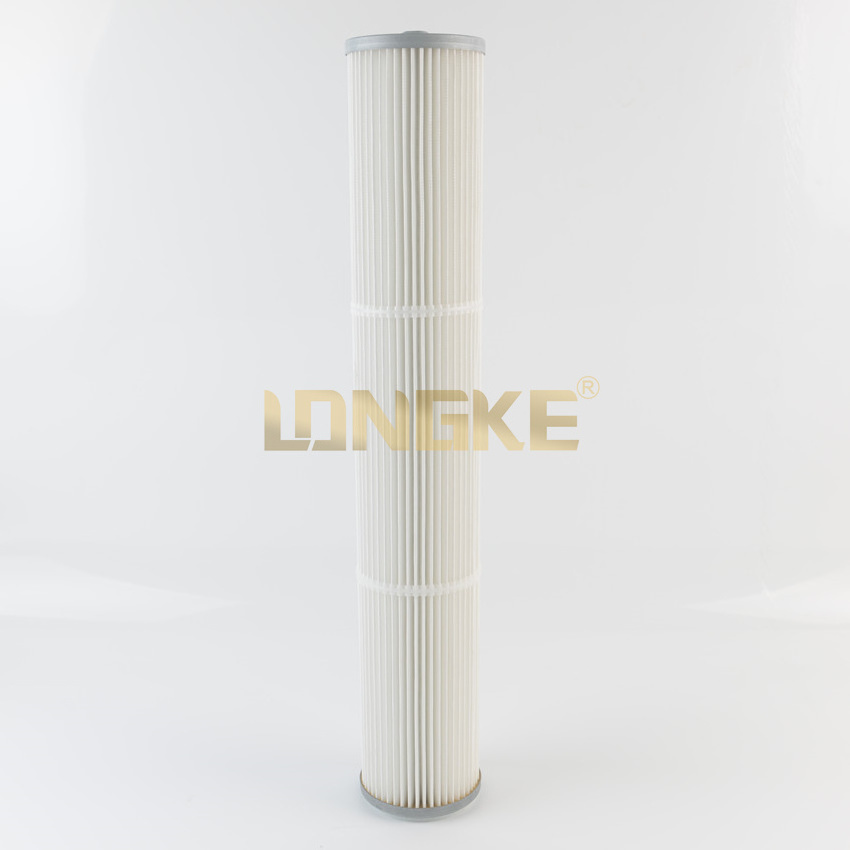

Dust Collector Filter Cartridge
-
Key word:
-
dust filter
-
Filter material:
-
PE,PP,PPS,PI,FMS,NOMEX,PTFE
-
MOQ:
-
10 piece
-
Material Of Bag:
-
Non-Woven
-
Metal treatment:
-
Powder spray coating metal/stainless steel mesh
-
Certification:
-
EN779:2012,ISO/TS 16949:2009
-
Usage:
-
DUST FILTER
Quick Details
-
Efficiency:
-
99.9%, 99.9 %
-
Porosity:
-
0.3-10μm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Dust filter
-
Dimension(L*W*H):
-
customized, standard
-
Weight:
-
2 KG
-
Product name:
-
Dust Collector Filter Cartridge
-
Key word:
-
dust filter
-
Filter material:
-
PE,PP,PPS,PI,FMS,NOMEX,PTFE
-
MOQ:
-
10 piece
-
Material Of Bag:
-
Non-Woven
-
Metal treatment:
-
Powder spray coating metal/stainless steel mesh
-
Certification:
-
EN779:2012,ISO/TS 16949:2009
-
Usage:
-
DUST FILTER
| model | inside diameter (mm) | outside diameter (mm) | hight (mm) | resistance (pa) | efficincy/h | wind volum | negative blow pressure (kg) |
| 3060 | 320 | 220 | 600 | 50 | 1 μ 56.2 2 - 3μ 80.5 3 - 5μ 98.3 8μ 99.8 | 1200 | 6-8 |
| 3266 | 320 | 220 | 660 | 50 | 1300 | 6-8 | |
| 3290 | 320 | 220 | 900 | 50 | 1800 | 6-8 | |
| 3560 | 350 | 210 | 600 | 50 | 1600 | 6-8 | |
| 2860 | 280 | 180 | 600 | 50 | 1100 | 6-8 |
1. spunbonded polyester with Antistatic and NanoFibre treatment
2.Wide pleat width,easy for self-clean
3.Top open,bottom close
4.Requires less compressed air pressure to pulse clean
5.High filtration efficiency
6.Increase 2-3 times filtration area than filter bag
7.Shorter length keeps the elements out of the inlet gas stream,reducing abrasion
8.Fit most standard tubesheet designs, directly replacement for bags and cage
