Quick Details
-
Brand Name:
-
SOLAFANS
-
Model Number:
-
SF4865A
-
Work Time (h):
-
24 Hours
-
Max PV Power:
-
3560W
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE, PSE, METI
-
Warranty:
-
2 years
-
Material:
-
Iron
-
Colour:
-
Grey
-
Shape:
-
square
-
Features:
-
Intelligent
-
MOQ:
-
1pc
-
Customized:
-
LOGO/Outer packaging
-
Battery type:
-
User
-
Weight:
-
3.3KG
-
System voltage:
-
12V/24V/36V/48V
-
Efficiency:
-
99%
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SOLAFANS
-
Model Number:
-
SF4865A
-
Work Time (h):
-
24 Hours
-
Max PV Power:
-
3560W
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE, PSE, METI
-
Warranty:
-
2 years
-
Material:
-
Iron
-
Colour:
-
Grey
-
Shape:
-
square
-
Features:
-
Intelligent
-
MOQ:
-
1pc
-
Customized:
-
LOGO/Outer packaging
-
Battery type:
-
User
-
Weight:
-
3.3KG
-
System voltage:
-
12V/24V/36V/48V
-
Efficiency:
-
99%

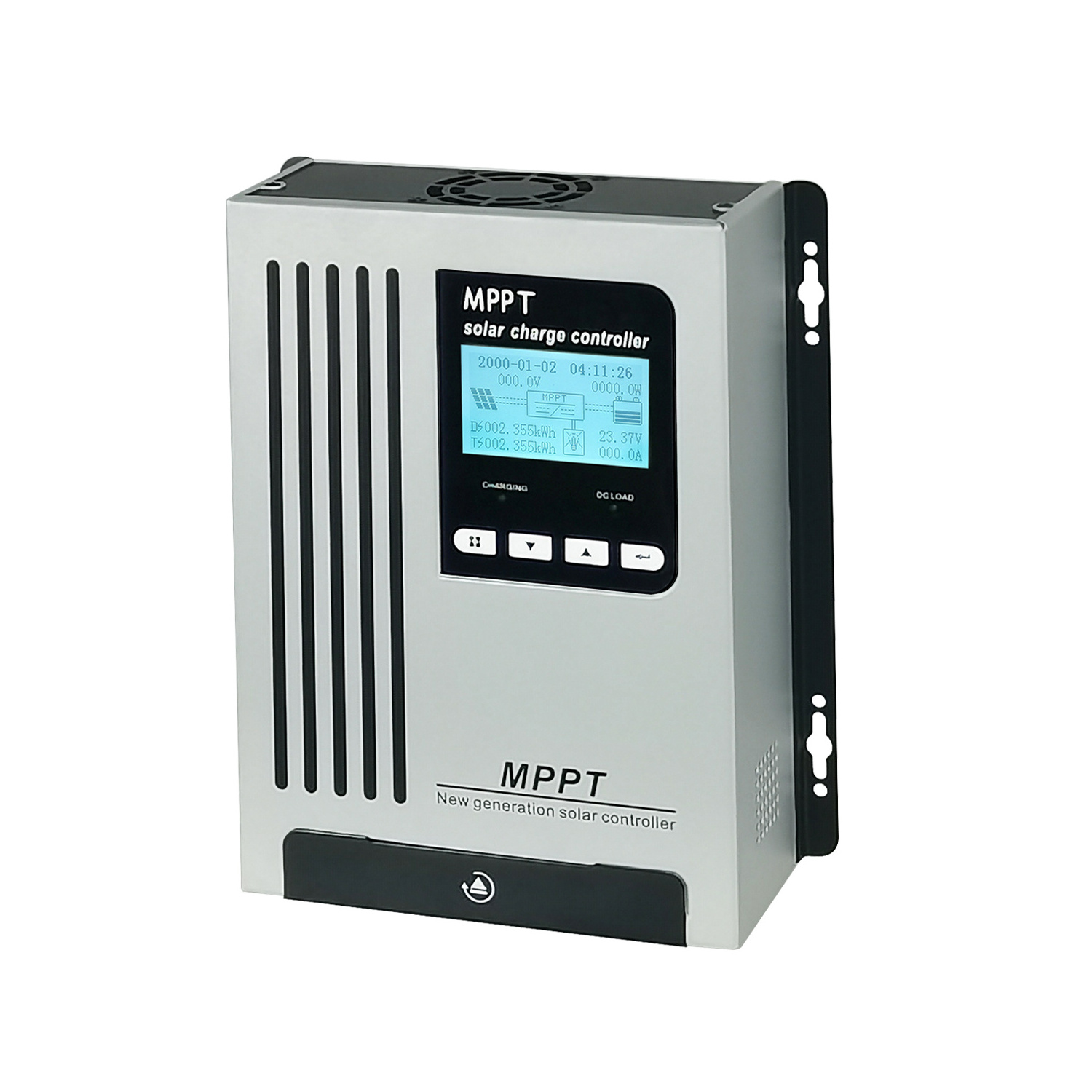

Products Description
|
ADVANTAGES:
|
|
1. Iron shell and aluminum cooling plate can help the dissipate heat effectively; The internal layout is neat to avoid interference between components.
|
|
2. Batteries support: lead acid, sealed, Gel, AGM, lithium battery etc; 12V 24V 48V Automatic Identification, Max solar panel input working voltage range DC150V
|
|
3. It can keep the maximum power charge, the conversion efficient rate up to 98.1%, power consumption lower than 0.7W; PV modules utilization rate ≤99.9%; Static power is ≤2W; Noise is ≤50dB.
|
|
4. The charging models are MPPT, equalizing charge, floating charge; Protection: over charge, over discharge,reverse connection, over voltage, short circuit, high temperature, low or over voltage input recovery etc.
|
|
5. Easy installation; LCD display: PV input voltage, battery type, battery voltage, charge current, daily generation, total
generation, language and date, charge status, fault record query, and power curve etc. |
|
PV MAX Input Power
|
45A
|
55A
|
65A
|
|
12V
|
610W
|
750W
|
890W
|
|
24V
|
1220W
|
1500W
|
1780W
|
|
48V
|
2440W
|
3000W
|
3560W
|
|
MPPT CONTROLLER
|
PWM controller
|
|
Generation III , high techology and cost
|
Generation ll low techongy and cost
|
|
Tracking efficient rate up to 99%-99.5%
|
Tracking efficient rate up to 50%-60%
|
|
Three charge stages : ( Float charge , equalizing chargeconstant charge )
|
Puse width modulation charge
|
|
12v-48v or 12v-96v can automatic recognition
|
Not support wide voltage input
|
|
Batteries support : lead acid , sealed , Gel , AGM , lithium battery etc.
|
Battery : single type
|
|
Conversion efficient Rate > 97.8%
|
Conversion eficient Rate = 70 %
|
