Quick Details
-
Type No.:
-
SMS-601
-
Pressure Tank Volume:
-
A tank:10L/B tank: 5L (Standard)
-
Machine Power:
-
1000W
-
Available Ratio:
-
1:1-10:1 (customized)
-
Control Method:
-
PLC Touch Screen
-
Mixing Method:
-
Electric Mixing Valve+Dynamic Mixer
-
Dispensing Valve:
-
Precision suction double liquid valve
-
Match mixing tip:
-
Static Mixer/Dynamic Mixer
-
Tank Motor:
-
Infinitely adjustable speed DC motor
-
After-sales Service Provided:
-
Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
India
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Samux
-
Product name:
-
Automatic AB glue epoxy adhesive resin dispensing machine
-
Type No.:
-
SMS-601
-
Pressure Tank Volume:
-
A tank:10L/B tank: 5L (Standard)
-
Machine Power:
-
1000W
-
Available Ratio:
-
1:1-10:1 (customized)
-
Control Method:
-
PLC Touch Screen
-
Mixing Method:
-
Electric Mixing Valve+Dynamic Mixer
-
Dispensing Valve:
-
Precision suction double liquid valve
-
Match mixing tip:
-
Static Mixer/Dynamic Mixer
-
Tank Motor:
-
Infinitely adjustable speed DC motor
-
After-sales Service Provided:
-
Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
India

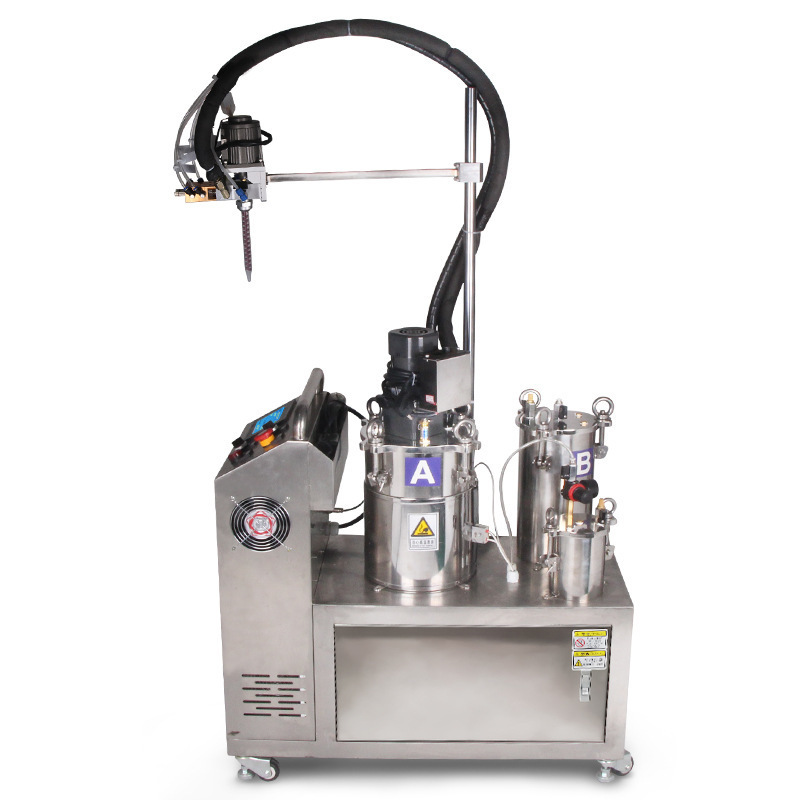

Two-component Automatic High-precision AB glue epoxy adhesive resin dispensing machine automatic glue dispenser filling machine
Device parameters
|
Type No. |
MY-601 |
Mixing Accuracy |
±2% |
|
Size of Machine |
94(Length)*40(Width)*140(Height)cm |
Measurement Accuracy |
±2% |
|
Weight of Machine |
100Kg |
Discharge Accuracy |
±2% |
|
Pressure Tank Volume |
A tank:10L/B tank: 5L (Standard Match) |
Dispensing Speed |
1g/s-9.99g/s setup |
|
Cleaning Tank |
1L |
Available Ratio |
1:1-10:1 (customized) |
|
Working Pressure |
AC220V/50Hz0.5kw |
Discharge Speed |
0.5-15g/s |
|
Machine Power |
1000W |
Control Method |
PLC Touch Screen |
|
Air Source |
0.5-0.6mpa |
Glue Supply Method |
Double gear pump/Screw pump |
|
Move Method |
Wheel Push |
A glue Measurement |
customized |
|
Working Temperature |
5-40 ℃ |
B glue Measurement |
customized |
|
Working Humidity |
20-90% |
Mixing Method |
Electric Mixing Valve+Dynamic Mixer |
Machine Configuration
|
Machine Control |
PLC Touch Screen |
Software System |
Independent research and development |
|
Motor |
Precision AC stepping motor |
Pneumatic Components |
AirTAC |
|
Power Switch |
Mingwei LRS-350-24 |
Relay |
Omron |
|
Dispensing Valve |
Precision suction double liquid valve |
Cooling Fan |
Industrial exhaust fan |
|
Valve Motor |
DC motor or AC motor |
Machine Shell |
Stainless Steel |
|
Gear Pump |
Precision Double Gear Pump |
Tank Material |
304 Stainless Steel |
|
Tank Motor |
Infinitely adjustable speed DC motor |
Wheel |
Wear-resistant rubber wheels |
|
Delivery Hose |
Explosion-proof Teflon high pressure conveying hose |
Healing System |
Digital temperature control heating pack |
