Quick Details
-
Display:
-
3.5" Colorful LCD
-
Output Port:
-
10 Stations
-
Input Power:
-
5-6VDC
-
Waterproof:
-
IP65
-
Output Power:
-
12VDC Latching
-
Working Temperature:
-
0-60℃
-
Input DP Range:
-
0-2.0 Bar (0-29 Psi)
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
chinadrip
-
Model Number:
-
not
-
Display:
-
3.5" Colorful LCD
-
Output Port:
-
10 Stations
-
Input Power:
-
5-6VDC
-
Waterproof:
-
IP65
-
Output Power:
-
12VDC Latching
-
Working Temperature:
-
0-60℃
-
Input DP Range:
-
0-2.0 Bar (0-29 Psi)
Product Description

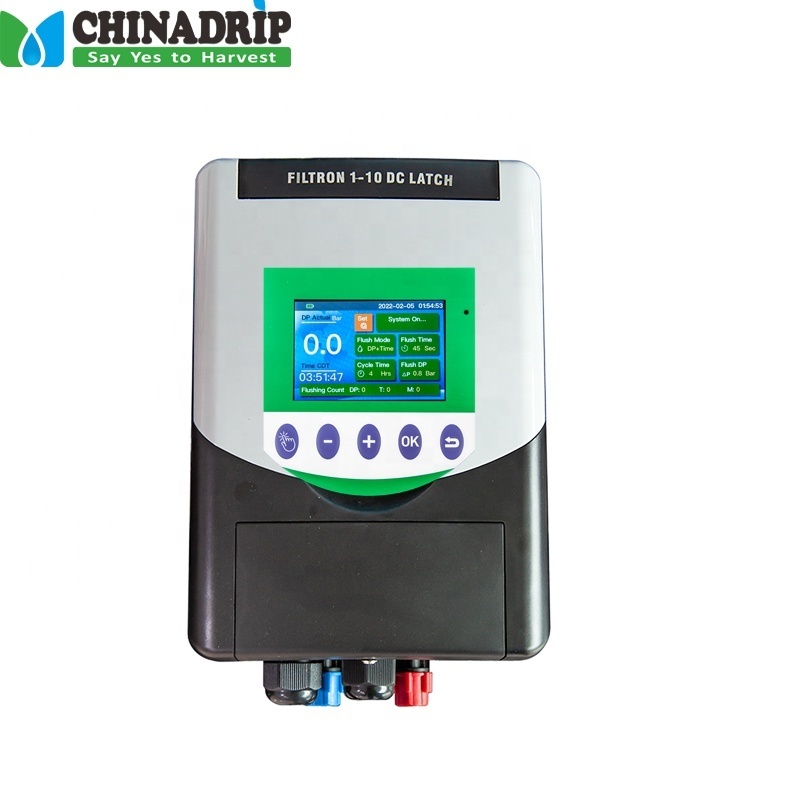

Controller for Automatic Self-Clean Filtration System
FC01 is a modular controller, build-in programed microchip, designed for automatic backflush filtration system. It combines the backwash valves, filters, pressure sustaining valves etc. to be a automatic backflush filtration system through pressure sensor (input signal) and solenoid valve (output signal). It could control each filter unit to be flushed automaticlly by turns. Based on this, the filtration system achieves supplying continuously cleaned water to irrigation
system while washing filter units in same time. So that irrigation system works nonstop.
system while washing filter units in same time. So that irrigation system works nonstop.
Specification
|
item
|
value
|
|
Type
|
Other Watering & Irrigation
|
|
Commercial Buyer
|
Super Markets, Convenience Stores, Discount Stores, E-commerce Stores
|
|
Season
|
All-Season
|
|
Room Space Selection
|
Not Support
|
|
Occasion Selection
|
Not Support
|
|
Holiday Selection
|
Not Support
|
|
Place of Origin
|
China
|
|
|
Fujian
|
|
Brand Name
|
not
|
|
Model Number
|
not
|
|
Material
|
Plastic
|
|
Display
|
3.5" Colorful LCD
|
|
Output Port
|
10 Stations
|
|
Input Power
|
5-6VDC
|
|
Waterproof
|
IP65
|
|
Output Power
|
12VDC Latching
|
|
Working Temperature
|
0-60℃
|
|
Input DP Range
|
0-2.0 Bar (0-29 Psi)
|
Advantages:
* Equipped with a customized color LCD display which user interface is simple and user-friendly.
* Chinese/English dual language, the program setting is simple and easy to operate.
* Suitable for different working environments benefit from waterproof and moisture-proof design.
* Can meet the number of filter units in most systems by 10 output ports.
* Power Supply is 4 pcs D battery or 5V DC power adapter, which are safe and reliable and prevent lightning strikes.
* Chinese/English dual language, the program setting is simple and easy to operate.
* Suitable for different working environments benefit from waterproof and moisture-proof design.
* Can meet the number of filter units in most systems by 10 output ports.
* Power Supply is 4 pcs D battery or 5V DC power adapter, which are safe and reliable and prevent lightning strikes.
Features:
* It can be set three flushing mode: by time, by different pressure, by manual.
* It can be flexibly set the flushing time, flushing interval, DP response time etc..
* It can record flushing count automatically, which is convenient for regular maintenance.
* It can automatically detect and display the number of backwash valve stations.
* When the battery voltage is insufficient, a low voltage alarm will be displayed on the screen display.
* The factory default settings can be restored with one key.
* It comes with operation tips, no complicated operation manual is req
* It can be flexibly set the flushing time, flushing interval, DP response time etc..
* It can record flushing count automatically, which is convenient for regular maintenance.
* It can automatically detect and display the number of backwash valve stations.
* When the battery voltage is insufficient, a low voltage alarm will be displayed on the screen display.
* The factory default settings can be restored with one key.
* It comes with operation tips, no complicated operation manual is req
